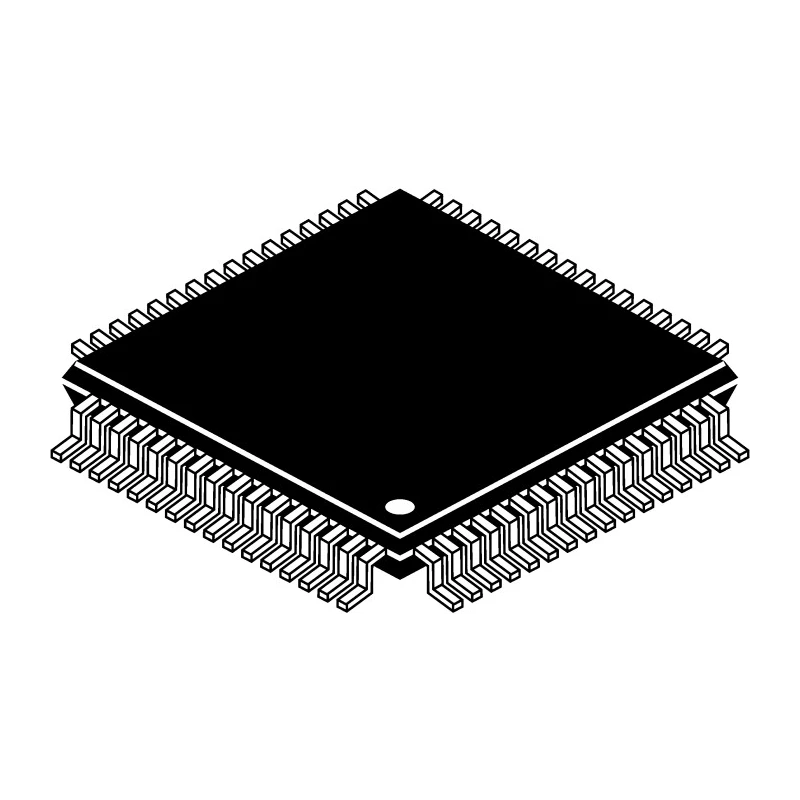

MaxLinear 4-Channel UART 64-Pin LQFP Surface Mount Integrated Circuit ST16C554DIQ64-F
Specifications
| Country of Origin | India |
|---|---|
| Brand | MaxLinear |
| Height | 1.6mm |
| Length | 12mm |
| Model | ST16C554DIQ64-F |
| Mount Type | Surface |
| Maximum Operating Temperature | 85°C |
| Package Type | LQFP |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 4 |
| Pin Count | 64 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 2.97V |
| Maximum Data Rate | 1.5Mbps |
| Transmit FIFO | 16bit |
| Receive FIFO | 16bit |
Key Features
- Offers four independent UART channels for versatile interface options.
- Supports a maximum data transfer rate of 1.5 Mbps for reliable communication.
- Configured in a compact 64-pin LQFP surface mount package for easy PCB integration.
- Features 16-bit transmit and receive FIFO buffers enhancing data handling.
- Operates within a supply voltage range of 2.97V to 5.5V, suitable for varied power environments.
- Designed to function accurately within -40°C to 85°C operating temperature range.
- Does not conform to any specific industry or automotive standards simplifying general purpose use.
Product Description
MaxLinear model ST16C554DIQ64-F is a 4-Channel Universal Asynchronous Receiver/Transmitter (UART) integrated circuit in a 64-pin LQFP surface mount package. It provides efficient serial data communication solutions for industrial, electronic, and embedded systems applications.
This UART supports a maximum data rate of 1.5 Mbps and includes 16-bit FIFOs on both transmit and receive channels, allowing for effective handling of data streams. The device operates over a supply voltage range from 2.97V to 5.5V, making it compatible with a range of power supplies.
Offering a package length of 12 mm and a height of 1.6 mm, it ensures minimal space usage on circuit boards. Its wide operating temperature range from -40°C to 85°C enables reliable functionality in harsh environmental conditions.
The device does not conform to any particular automotive or other specialized standards but is widely suitable for general industrial, laboratory, manufacturing, and embedded communication tasks requiring UART interfaces.
Four independent UART channels for simultaneous serial data processing. Supports 1.5 Mbps max data rate for high-speed communication. 16-bit transmit and receive FIFO buffers reduce CPU overhead. 64-pin LQFP surface mount package designed for compact PCB layouts.
Wide supply voltage range of 2.97V to 5.5V for flexible power operation. Operates reliably across -40°C to 85°C industrial temperature range. Small form factor with 12 mm length and 1.6 mm height.
MaxLinear's UART ICs like the ST16C554DIQ64-F find applications in embedded systems, industrial control interfaces, serial communications, and electronic measurement instruments. Its integration capabilities help streamline serial data handling in complex electronic designs.
For more industrial-grade UART integrated circuits and semiconductor solutions, explore the comprehensive electronic components category at EnvMart.
Explore more products in our Interface ICs category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a maximum data transfer rate of 1.5 Mbps, ensuring reliable communication for various applications.
It offers four independent UART channels, allowing for simultaneous serial data processing.
This unit operates within a supply voltage range of 2.97V to 5.5V, making it suitable for varied power environments.
The package has a length of 12 mm and a height of 1.6 mm, designed for compact PCB integration.
It operates reliably within a temperature range of -40°C to 85°C, suitable for harsh environmental conditions.
This integrated circuit features 16-bit transmit and receive FIFO buffers, enhancing data handling efficiency.
This device does not conform to any specific industry or automotive standards, simplifying its use for general purposes.
It is designed as a surface mount integrated circuit, facilitating easy integration onto PCBs.
This model is suitable for applications in embedded systems, industrial control interfaces, and electronic measurement instruments.
This integrated circuit has a pin count of 64, allowing for versatile connections in electronic designs.
The 16-bit FIFO buffers reduce CPU overhead, allowing for more efficient data handling during transmission and reception.
The country of origin for this integrated circuit is India.
