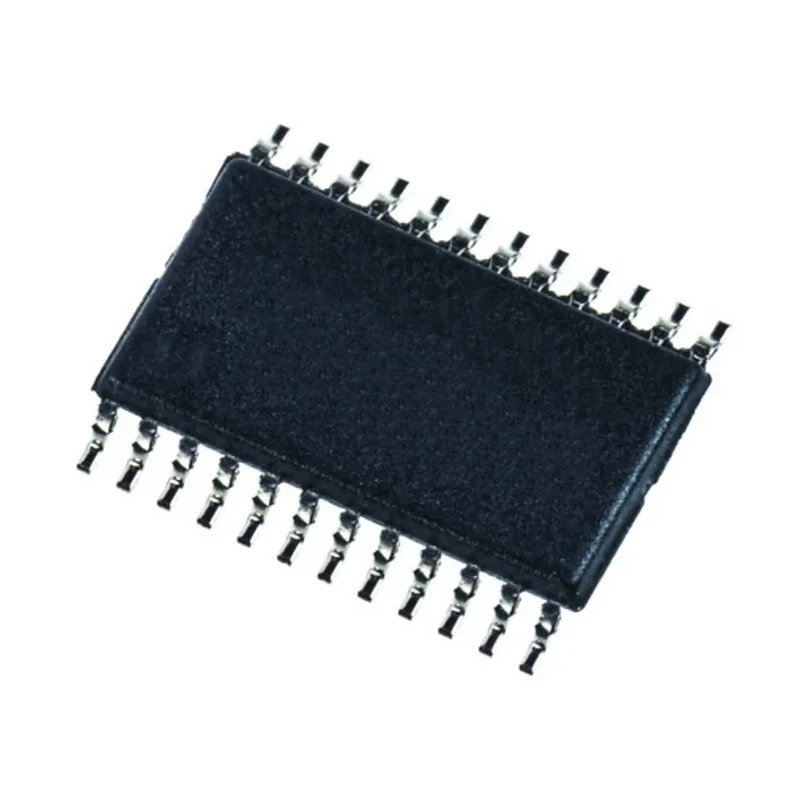

Texas Instruments HDMI Interface, 12-Channel, 24-Pin TSSOP, Surface Mount, 4.5-5.5V Supply, Maximum Output TPD12S016PWR
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 1.05mm |
| Length | 7.9mm |
| Model | TPD12S016PWR |
| Mount Type | Surface |
| Series | TPD12S016 |
| Maximum Operating Temperature | 85°C |
| Package Type | TSSOP |
| Minimum Operating Temperature | -40°C |
| Interfaces | USB 3 |
| Number Of Channels | 12 |
| Interface Type | HDMI |
| Maximum Output Voltage | 5.5V |
| Pin Count | 24 |
| Minimum Supply Voltage | 4.5V |
Key Features
- Supports 12 channel HDMI 24-pin interface for high-quality video signal transmission.
- Operates with a supply voltage range of 4.5V to 5.5V, suitable for diverse automotive and industrial environments.
- Provides maximum output voltage of 5.5V ensuring robust signal integrity.
- Features a compact TSSOP package with 24 pins and dimensions of 7.9mm length and 1.05mm height.
- Functional within an operating temperature range of -40°C to 85°C for wide environmental tolerance.
- Incorporates advanced protection including electrostatic discharge (ESD), overvoltage, overcurrent, and EMI protection.
- High-performance TVS diodes and ultra low capacitance and leakage current for improved EMI and signal quality.
- Designed for surface mounting, aiding in efficient automated PCB assembly processes.
Product Description
Texas Instruments TPD12S016PWR is a highly integrated HDMI interface device tailored for handling 12 channels of HDMI video signals through a 24-pin TSSOP surface mount package. This device operates within a supply voltage range of 4.5V to 5.5V with a maximum output voltage of 5.5V, enabling compatibility with a range of electronic applications requiring steady signal transmission quality.
Its compact dimensions (7.9mm length by 1.05mm height) facilitate its use in space-constrained systems. The product is engineered to endure harsh operating conditions with a temperature range from -40°C to 85°C, making it suitable for automotive, industrial, and consumer electronics.
The TPD12S016PWR incorporates multiple protective features such as integrated electrostatic discharge (ESD) protection, over-voltage protection (OVP), over-current protection (OCP), current-limited load switch, and electromagnetic interference (EMI) shielding. It employs high-performance transient voltage suppressor (TVS) diodes optimized to maintain signal integrity with low capacitance and leakage currents.
This HDMI interface IC is suitable for applications in high definition multimedia interfaces requiring robust and reliable signal handling with enhanced protection features for prolonged device lifetime and performance stability in fields such as industrial automation, consumer electronics, and automotive systems.
Supports 12 channel HDMI 24-pin interface for high-quality video signal transmission. Operates within a voltage supply range of 4.5V to 5.5V. Maximum output voltage of 5.5V for robust signal output. Compact TSSOP package ensures efficient PCB assembly and space-saving.
Wide operating temperature range from -40°C to 85°C for diverse environments. Integrated ESD, OVP and OCP for enhanced device protection. Low capacitance and leakage current improve EMI performance. Surface mount design for automated manufacturing processes.
Ideal for industrial, automotive, and consumer electronics applications requiring dependable HDMI interfacing with protection against electrical and environmental stresses. Explore more components from Texas Instruments on EnvMart for your electronics projects and manufacturing needs.
Explore more products in our Interface ICs category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The TPD12S016PWR operates within a supply voltage range of 4.5V to 5.5V.
This model supports 12 channels of HDMI video signals.
The dimensions of this unit are 7.9mm in length and 1.05mm in height.
The maximum output voltage is 5.5V, ensuring robust signal integrity.
It functions within an operating temperature range of -40°C to 85°C.
This product comes in a compact TSSOP package with 24 pins.
It includes electrostatic discharge (ESD) protection, over-voltage protection (OVP), and over-current protection (OCP).
Yes, it is designed for surface mounting, facilitating efficient automated PCB assembly processes.
This model is suitable for applications in industrial automation, consumer electronics, and automotive systems.
It supports HDMI interface for high-quality video signal transmission.
The pin count for this unit is 24 pins.
The country of origin for this product is India.
