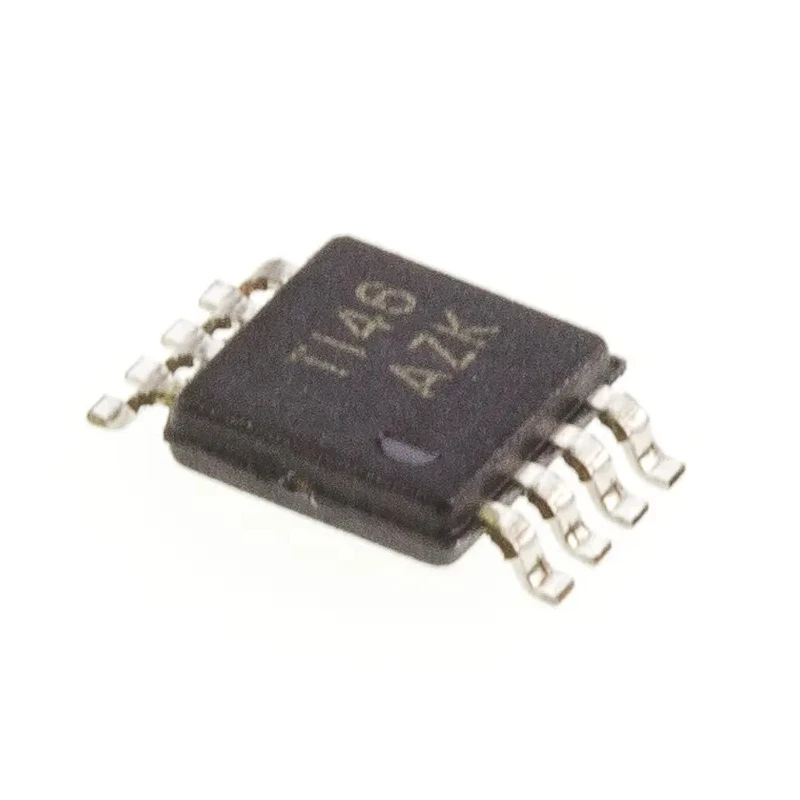

Texas Instruments Translator & Repeater IC 1 LVDS Repeater, Translator 8-Pin MSOP SN65LVDS100DGK
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 970μm |
| Length | 3mm |
| Model | SN65LVDS100DGK |
| Mount Type | Surface |
| Output type | Repeater, Translator |
| Series | SN65LVDS100 |
| Input Type | LVDS |
| Maximum Operating Temperature | 85°C |
| Package Type | MSOP |
| Sub Type | Translator & Repeater |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 709-2747Brand: Texas InstrumentsManufacturers Part No.: SN65LVDS100DGK |
| Pin Count | 8 |
| Number of Elements per Chip | 1 |
| Maximum Supply Voltage | 3.6V |
| Minimum Supply Voltage | 3V |
| Number of Drivers | 1 |
| Number of Receivers | 1 |
| Transmission Data Rate | 2000Mbps |
| Differential Input High Threshold Voltage | 100mV |
| Differential Input Low Threshold Voltage | -0.1V |
Key Features
- Supports 1 LVDS driver and 1 LVDS receiver for efficient signal translation.
- Operates within a supply voltage range of 3 V minimum to 3.6 V maximum.
- Features differential input high threshold voltage of 100 mV and low threshold of -0.1 V.
- Ensures reliable operation from -40°C to 85°C for industrial environments.
- Complies with RoHS standards ensuring environmentally safe manufacturing.
- Compact 8-Pin MSOP surface mount package with a height of 970 μm and length of 3 mm.
- Integrated ESD protection enhances device robustness.
- Ideal for high-speed data transmission over twisted-pair copper cables such as Firewire, SATA, and SCSI.
Product Description
Texas Instruments SN65LVDS100DGK is a Translator & Repeater IC designed for low voltage differential signaling (LVDS) applications. It provides one LVDS driver and one LVDS receiver in a compact 8-Pin MSOP surface mount package. The device supports high speed data transmission up to 2000 Mbps, ensuring efficient and reliable signal translation and repeat functions.
This IC operates at a minimum supply voltage of 3 V and a maximum of 3.6 V, with differential input threshold voltages calibrated for robust data integrity. With operating temperature range from -40°C to 85°C, it is suitable for demanding industrial and commercial electronics applications.
The SN65LVDS100DGK features integrated electrostatic discharge (ESD) protection, enhancing the device's durability in harsh electronic environments. It complies with RoHS environmental regulations, underlining its eco-friendly manufacturing process.
Its small footprint, characterized by a 970 μm height and 3 mm length, allows for space-saving PCB designs. This makes it ideal for use in high-speed communications equipment such as Firewire, SATA, and SCSI interfaces, where low noise and high-speed signaling are critical.
Supports 1 LVDS driver and 1 LVDS receiver. Operates at 3 V to 3.6 V supply voltage. Differential input thresholds optimized for signal integrity. Wide operating temperature range from -40°C to 85°C. Compliant with RoHS standards.
Compact 8-Pin MSOP surface mount package. Integrated ESD protection for enhanced reliability. Use in high-speed data transmission applications including Firewire, SATA, and SCSI.
The Texas Instruments SN65LVDS100DGK is part of the SN65LVDS100 series known for dependable LVDS communication components. It serves critical roles in electronics manufacturing, laboratory equipment, industrial machines, and communication devices requiring precise signal translation and repeat capabilities. Browse EnvMart's extensive LVDS Interface ICs category for compatible and complementary semiconductors from leading manufacturers suitable for your design requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a maximum data transmission rate of 2000 Mbps, ensuring efficient signal translation and repeat functions.
It operates within a supply voltage range of 3 V minimum to 3.6 V maximum.
The differential input high threshold voltage is 100 mV, and the low threshold voltage is -0.1 V, optimized for signal integrity.
This unit operates effectively within a temperature range of -40°C to 85°C, making it suitable for industrial environments.
It is housed in a compact 8-Pin MSOP surface mount package with a height of 970 μm and a length of 3 mm.
Yes, it features integrated electrostatic discharge (ESD) protection, enhancing its robustness in harsh environments.
This model includes one LVDS driver and one LVDS receiver, facilitating efficient signal translation.
Yes, it complies with RoHS standards, ensuring environmentally safe manufacturing practices.
It is ideal for high-speed data transmission applications including Firewire, SATA, and SCSI interfaces.
This device has a pin count of 8, suitable for compact PCB designs.
The SN65LVDS100DGK is part of the SN65LVDS100 series, known for reliable LVDS communication components.
The country of origin for this product is India.
