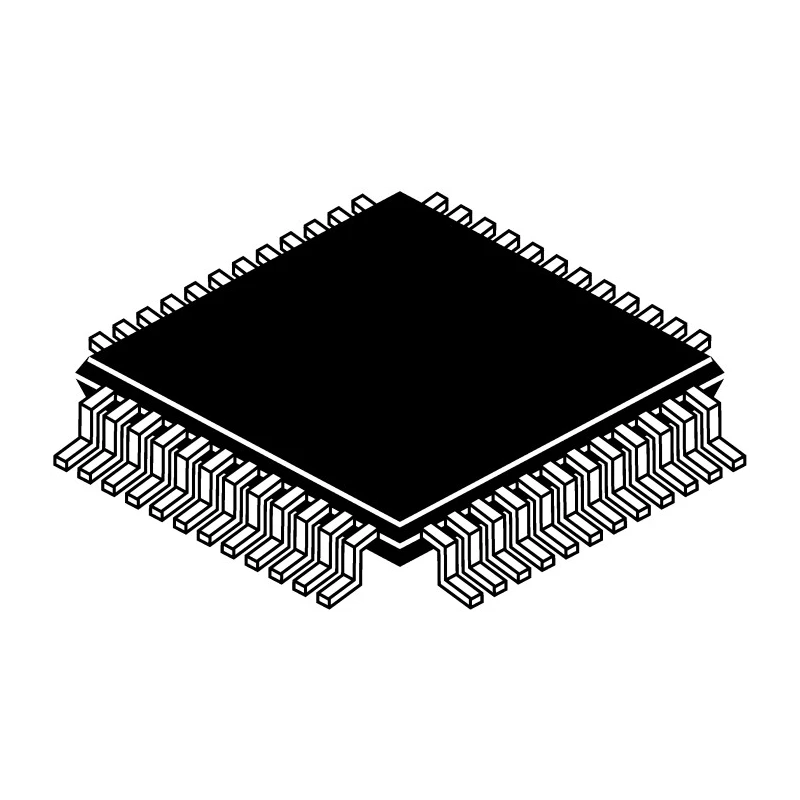

MaxLinear 2-Channel UART RS485, RS232 48-Pin TQFP Surface Mount Integrated Circuit ST16C2550IQ48-F
Specifications
| Country of Origin | India |
|---|---|
| Brand | MaxLinear |
| Height | 1.2mm |
| Length | 9.2mm |
| Model | ST16C2550IQ48-F |
| Mount Type | Surface |
| Maximum Operating Temperature | 85°C |
| Package Type | TQFP |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 2 |
| Pin Count | 48 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 2.97V |
| Maximum Data Rate | 4Mbps |
| Standard Supported | RS485, RS232 |
| Transmit FIFO | 16bit |
| Receive FIFO | 16bit |
Key Features
- This UART supports simultaneous dual-channel operation for versatile communication.
- Equipped with 16-bit transmit and receive FIFOs for efficient data buffering.
- Maximum data rate of 4 Mbps enables high-speed serial communication.
- Designed for surface mount application using a TQFP package with 48 pins.
- Operates over a supply voltage range of 2.97 V to 5.5 V ensuring compatibility with various systems.
- Wide operating temperature range from -40°C to 85°C suits industrial environments.
- Compact form factor with length 9.2 mm and height 1.2 mm for space-constrained designs.
- Non-automotive standard device without additional certifications.
Product Description
MaxLinear ST16C2550IQ48-F is a highly efficient 2-channel Universal Asynchronous Receiver/Transmitter (UART) suitable for RS485 and RS232 communication standards. Housed in a compact 48-pin Thin Quad Flat Package (TQFP), this integrated circuit supports surface mounting technology, making it ideal for automated PCB assembly.
Featuring 16-bit deep transmit and receive FIFOs, the UART enables seamless data handling with minimal processor intervention, facilitating effective high-speed serial communication at data rates up to 4 Mbps. The device supports a broad supply voltage range between 2.97 V and 5.5 V, ensuring flexibility across a variety of power domains.
The operational temperature range from -40°C to 85°C permits deployment in demanding industrial, manufacturing, automotive electronics (non-automotive certified), laboratory, and embedded system applications where robust performance is critical.
Its small footprint, measuring 9.2 mm in length and 1.2 mm in height, allows efficient PCB space utilization and integration in compact electronic designs. The device does not hold specific industry certifications or automotive standards but provides reliable UART interface functionality.
Dual UART channels offer dual serial port interfacing for multitasking communication needs. 16-bit FIFOs reduce CPU load by buffering data during high throughput operations. Operates reliably over industrial temperature ranges for deployment in harsh environments.
Compatible with multiple serial communication protocols including RS485 and RS232. Low power consumption suitable for embedded and portable systems. Surface mount 48-pin TQFP package facilitates modern assembly processes.
Assured device quality by MaxLinear with new product condition.
This product is ideal for industrial automation, embedded systems, communication devices, instrumentation, and other applications requiring robust serial communication interfaces. Explore more components in the UART and interface IC categories on EnvMart for complementary parts.
Explore more products in our Interface ICs category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum data rate of this model is 4 Mbps, enabling high-speed serial communication.
It operates over a supply voltage range of 2.97 V to 5.5 V, ensuring compatibility with various systems.
This model has a length of 9.2 mm and a height of 1.2 mm, making it suitable for space-constrained designs.
The operating temperature range is from -40°C to 85°C, suitable for industrial environments.
It supports dual-channel operation, allowing for simultaneous communication on two channels.
The integrated circuit is housed in a 48-pin Thin Quad Flat Package (TQFP) designed for surface mounting.
This model supports RS485 and RS232 communication standards, making it versatile for various applications.
It features 16-bit deep transmit and receive FIFOs for efficient data buffering and handling.
The device is a non-automotive standard product and does not hold additional certifications for automotive use.
It is suitable for industrial automation, embedded systems, communication devices, and instrumentation requiring robust serial communication.
The ST16C2550IQ48-F is manufactured in India.
This model is designed for surface mounting, facilitating modern assembly processes.
