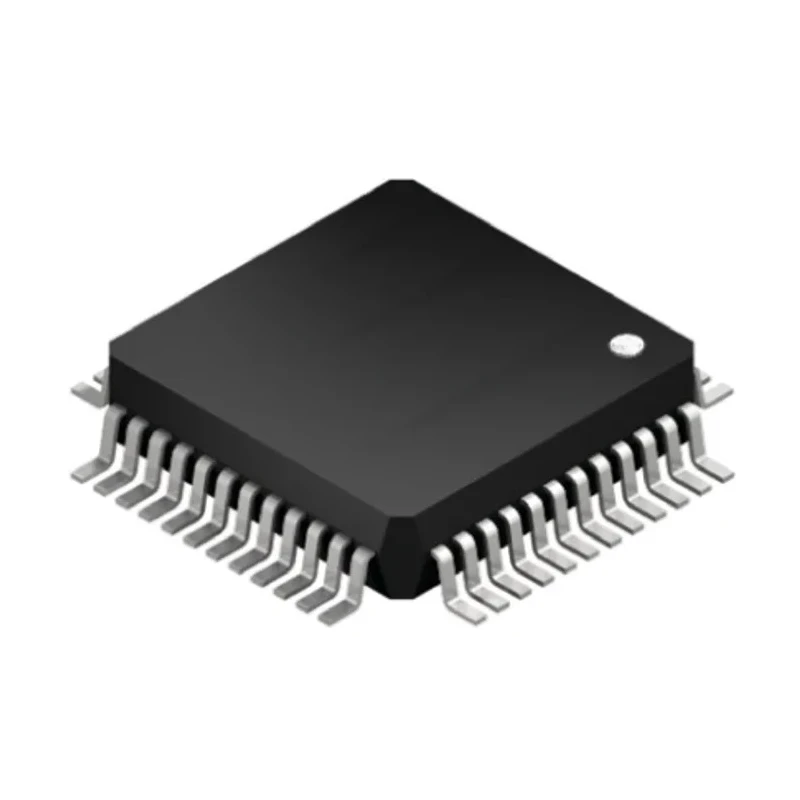

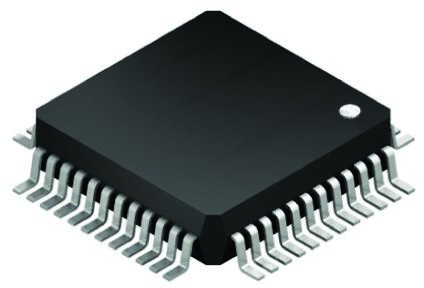

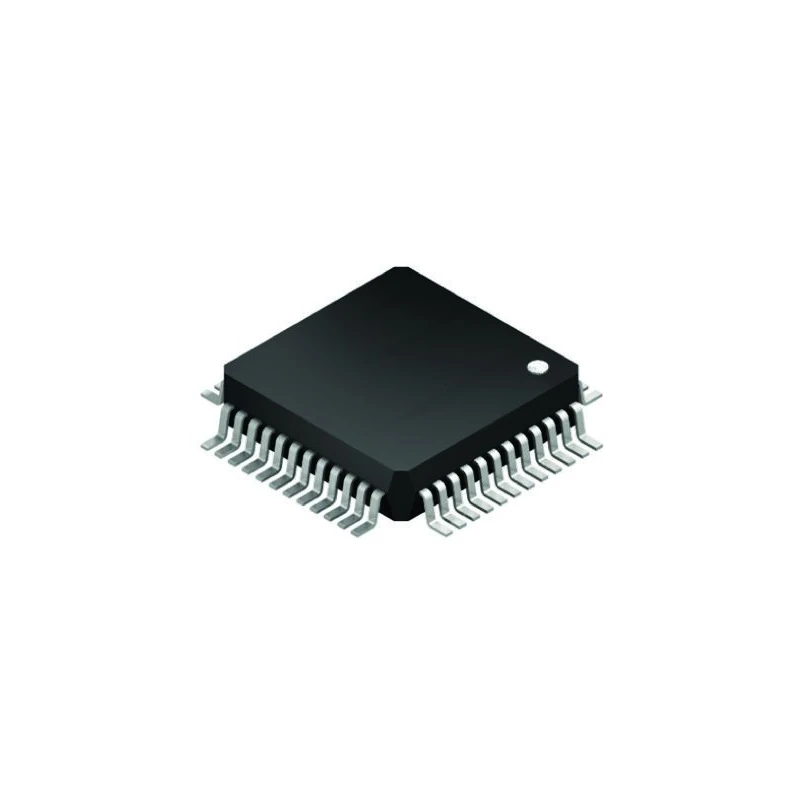

NXP LPC13 Microcontroller 32-bit ARM Cortex M3, 72 MHz, 64kB FLASH, 48-Pin LQFP LPC1347FBD48,151

Free Delivery in India | Lowest Global Shipping Charges

NXP LPC13 Microcontroller 32-bit ARM Cortex M3, 72 MHz, 64kB FLASH, 48-Pin LQFP LPC1347FBD48,151



Category Microcontrollers Brand NXP Condition New

Specifications

Country of Origin	India
Brand	NXP
Height	1.45mm
Length	7.1mm
Model	LPC1347FBD48,151
Width	7.1mm
Mount Type	Surface
Series	LPC13
Maximum Operating Temperature	85°C
Package Type	LQFP
Minimum Operating Temperature	-40°C
Interfaces	Ethernet, USB Host/OTG/Device, CAN, I²S, Fast-mode Plus (Fm+) I²C, 12-bit ADC, Motor Control PWM, Quadrature Encoder Interface, and more
Ram size	12kB
Pin Count	48
Maximum Supply Voltage	3.6V
Minimum Supply Voltage	2V
Device Core	ARM Cortex M3
Program Memory Size	64kB
Maximum Clock Frequency	72MHz
Number of Timers	4
Instruction Set Architecture	RISC
ADCs	8 x 10 Bit
Program Memory Type	FLASH

Key Features

Operates at a maximum clock frequency of 72 MHz.
Contains 64kB of FLASH program memory for embedded applications.
Integrates 12kB of RAM for data processing and storage.
Supports multiple interfaces including Ethernet, USB Host/OTG/Device, and CAN.
Equipped with 8 channels of 10-bit ADCs for analog signal processing.
Designed for low power consumption with a minimum supply voltage of 2V and maximum of 3.6V.
Operates reliably over a temperature range from -40°C to 85°C.
Packaged as a surface mount 48-pin LQFP with dimensions 7.1mm x 7.1mm x 1.45mm.

Product Description

NXP LPC1347FBD48,151 is a high-performance 32-bit ARM Cortex M3 microcontroller designed for embedded applications requiring efficient processing at 72 MHz. The device includes 64kB of FLASH program memory and 12kB of RAM, housed in a 48-pin LQFP surface mount package measuring 7.1 mm by 7.1 mm with a height of 1.45 mm.

This microcontroller integrates a broad range of advanced peripherals such as Ethernet communication, USB Host/OTG/Device functionality, Controller Area Network (CAN), and Inter-Integrated Sound (I²S). It also features 8 channels of 10-bit Analog-to-Digital Converters (ADCs) that facilitate precise analog signal processing.

Designed for low power consumption, it operates reliably within supply voltages ranging from 2 volts to 3.6 volts and withstands operating temperatures from -40°C up to 85°C, making it suitable for industrial and automotive environments.

The LPC1347FBD48,151 employs a Reduced Instruction Set Computing (RISC) architecture and includes four timers, enhancing its timing and control capability for real-time applications.

Its advanced debug features and integration make it ideal for applications in industrial automation, motor control, instrumentation, consumer electronics, and communication systems.

Operates at a maximum clock frequency of 72 MHz. 64kB FLASH program memory for extensive code size. 12kB RAM for efficient data handling. Supports Ethernet, USB Host/OTG/Device, CAN, I²S, and Fast-mode Plus I²C interfaces.

Includes 8 x 10-bit ADC channels for analog inputs. Wide operating temperature range from -40°C to 85°C. Surface mount 48-Pin LQFP package measuring 7.1 x 7.1 x 1.45 mm. Low power consumption and advanced interrupt controllers.

4 hardware timers for comprehensive timing control. Ideal for embedded industrial, automotive, and consumer applications. Explore a wide range of Microcontrollers and electronic components at EnvMart for your embedded system development needs.
