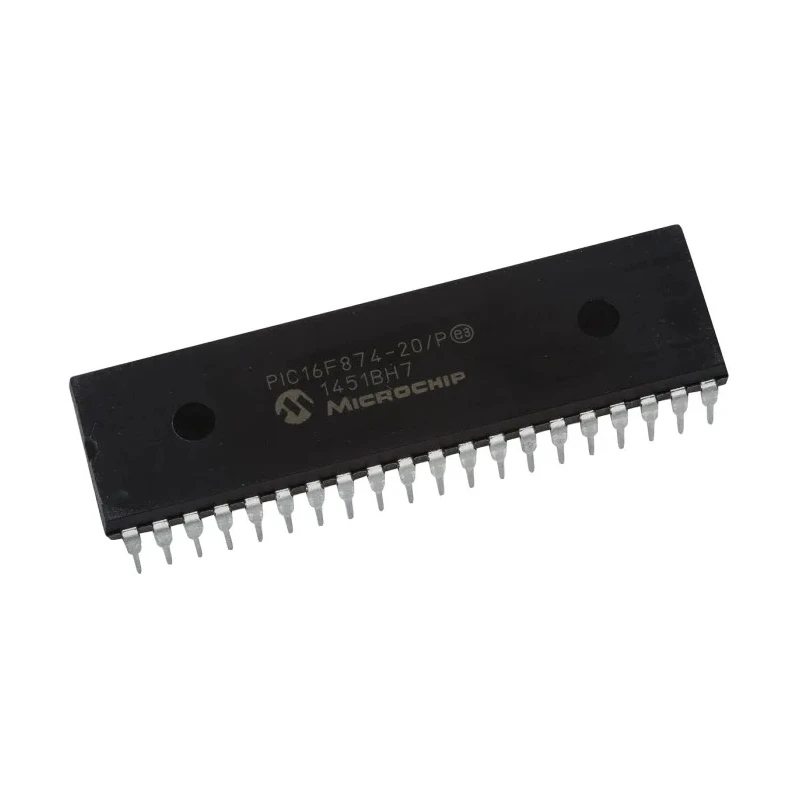

Microchip 8 bit PIC PIC16F87X Microcontroller 20 MHz 14kB FLASH 40-Pin PDIP PIC16F874-20/P
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 4.06mm |
| Length | 52.45mm |
| Model | PIC16F874-20/P |
| Width | 14.22mm |
| Mount Type | Through Hole |
| Series | PIC16F87X |
| Maximum Operating Temperature | 70°C |
| Package Type | PDIP |
| Minimum Operating Temperature | 0°C |
| Ram size | 192bit |
| Standards/Approvals | RoHS |
| Pin Count | 40 |
| Maximum Supply Voltage | 5.5V |
| Maximum Power Dissipation Pd | 1W |
| Minimum Supply Voltage | 2V |
| Device Core | PIC |
| Program Memory Size | 14kB |
| Maximum Clock Frequency | 20MHz |
| Number of Programmable I/Os | 33 |
| Number of Timers | 3 |
| Instruction Set Architecture | RISC |
| ADCs | 8 x 10 Bit |
| Program Memory Type | FLASH |
Key Features
- Features 8-bit PIC architecture with PIC16F87X series compatibility.
- Operates at a maximum clock frequency of 20 MHz.
- Contains 14kB of FLASH program memory and 192bit RAM.
- Supports 33 programmable input/output pins for versatile interfacing.
- Equipped with 8 channels of 10-bit analog-to-digital converters.
- Supports in-circuit serial programming and debugging capabilities.
- Operates between supply voltages of 2V to 5.5V with maximum power dissipation of 1W.
- Designed for through-hole mounting with a 40-pin dual in-line package (PDIP).
Product Description
Microchip PIC16F874-20/P is an 8-bit PIC microcontroller from the PIC16F87X series, designed to deliver robust performance and flexibility for various embedded applications. Operating at a maximum clock frequency of 20 MHz, it incorporates 14kB of FLASH program memory and 192bit of RAM, offering a balanced memory configuration for efficient code execution and data storage.
This microcontroller features 33 programmable input/output pins, enabling extensive interfacing capabilities with external devices and sensors. It includes 8 channels of 10-bit ADCs providing analog signal measurement with high resolution, suitable for industrial, automotive, and consumer electronics designs.
Equipped with multiple timers, including two 8-bit and one 16-bit timer, the PIC16F874-20/P supports precise timing and control. It also supports in-circuit serial programming (ICSP) and debugging (ICD), facilitating development and troubleshooting without device removal.
The device operates within a supply voltage range of 2V to 5.5V, consuming a maximum power dissipation of 1 watt, making it energy efficient for battery-powered and low-power systems. The rugged 40-pin PDIP package supports through-hole mounting and offers ease of use for prototyping and production.
Designed to operate within an ambient temperature range of 0°C to 70°C, it complies with RoHS environmental standards, ensuring safety and sustainability in electronic design. Features 8-bit PIC architecture with PIC16F87X series compatibility.
Operates at a maximum clock frequency of 20 MHz. Contains 14kB of FLASH program memory and 192bit RAM. Supports 33 programmable input/output pins for versatile interfacing. Equipped with 8 channels of 10-bit analog-to-digital converters.
Includes multiple timers: two 8-bit timers and one 16-bit timer. Supports in-circuit serial programming and debugging capabilities. Operates between supply voltages of 2V to 5.5V with maximum power dissipation of 1W. Designed for through-hole mounting with a 40-pin dual in-line package (PDIP).
Operating temperature range is 0°C to 70°C, compliant with RoHS standards.
This microcontroller is suitable for a wide range of industrial, laboratory, automotive, consumer, and embedded system applications where efficient control, analog interfacing, and programmability are required. Browse EnvMart's comprehensive microcontroller range for compatible development tools and accessories.
Explore more products in our Microcontrollers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this microcontroller is 20 MHz.
It contains 14kB of FLASH program memory.
This microcontroller operates between supply voltages of 2V to 5.5V.
It supports 33 programmable input/output pins for versatile interfacing.
It is designed in a 40-pin dual in-line package (PDIP) for through-hole mounting.
The operating temperature range is from 0°C to 70°C.
It is equipped with 8 channels of 10-bit analog-to-digital converters.
This microcontroller has a RAM size of 192 bits.
It includes two 8-bit timers and one 16-bit timer for precise timing and control.
Yes, it supports in-circuit serial programming (ICSP) and debugging capabilities.
It complies with RoHS environmental standards, ensuring safety and sustainability.
The maximum power dissipation is 1 watt.
