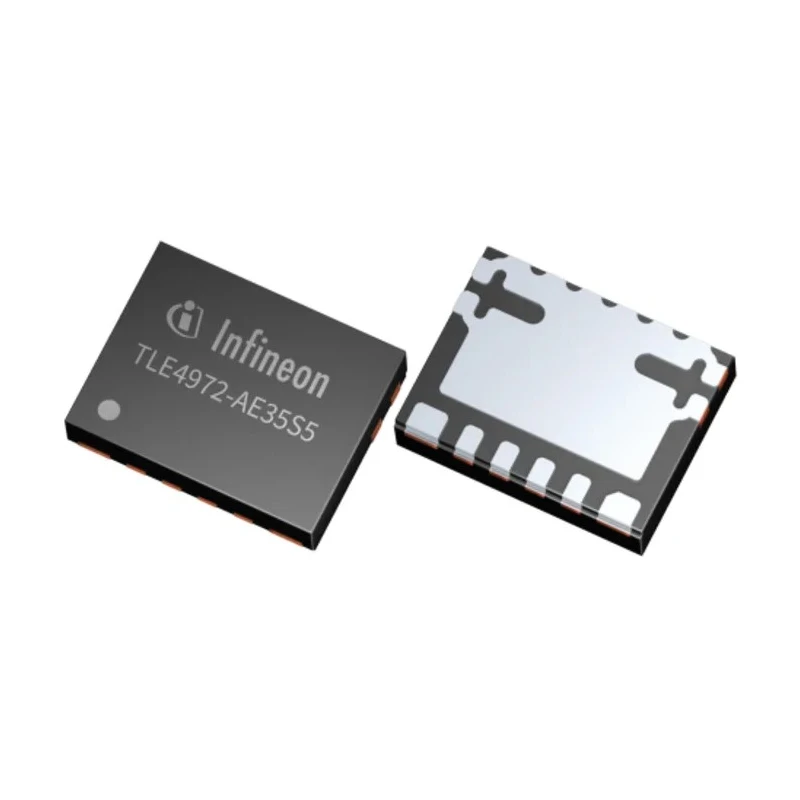

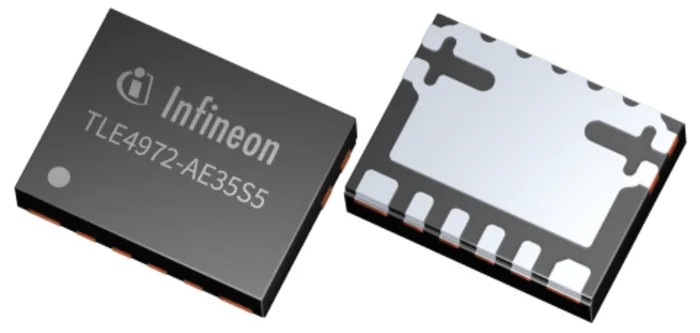

Infineon Current Sensor IC PG-VSON-6 Package 7-Pin, 1.65 V Offset Voltage, 3.1-3.5 V Supply Voltage TLE4972AE35S5XUMA1
Specifications
| Country of Origin | India |
|---|---|
| Brand | Infineon |
| Height | 900μm |
| Length | 3.5mm |
| Model | TLE4972AE35S5XUMA1 |
| Mount Type | Surface |
| Bandwidth | 48.2kHz |
| Series | TLE4972 |
| Maximum Operating Temperature | 160°C |
| Package Type | PG-VSON-6 |
| Minimum Operating Temperature | -40°C |
| Offset Voltage | 1.65 V |
| Standards/Approvals | AEC Q100 and ISO 26262, RoHS |
| Pin Count | 7 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 3.5V |
| Minimum Supply Voltage | 3.1V |
Key Features
- Operates with supply voltage between 3.1 V and 3.5 V.
- Features 1.65 V offset voltage for precise measurement.
- Bandwidth up to 48.2 kHz for fast response.
- Complies with automotive standards including AEC-Q100 and ISO 26262.
- Compact size of 3.5 mm length and 0.9 mm height.
- Designed for surface mount applications.
- Wide operating temperature range from -40°C to 160°C.
- Coreless Hall technology ensures accurate and linear measurement.
Product Description
Infineon TLE4972AE35S5XUMA1 is a precision current sensor IC designed for automotive and high-reliability industrial applications. Featuring a compact PG-VSON-6 7-pin surface mount package, this device offers an offset voltage of 1.65 V and operates within a supply voltage range of 3.1 to 3.5 V. The sensor delivers a bandwidth of 48.2 kHz, enabling fast and accurate measurement of AC and DC currents.
Its coreless Hall technology avoids hysteresis and non-linearities typical with traditional sensors, resulting in linear and precise current sensing across a wide temperature range from -40°C to 160°C. The sensor is built to conform with automotive industry standards such as AEC-Q100 and ISO 26262, ensuring reliability in demanding environments.
The device includes integrated self-diagnostics, enhancing operational safety by detecting faults during operation. Additionally, it features robust magnetic stray field suppression that maintains measurement stability in electrically noisy environments.
Applications include monitoring electrical drives in automotive systems, detecting overload and over-current conditions, and integration into on-board chargers and battery management systems. Its miniature size of approximately 3.5 mm in length and 0.9 mm height allows for easy integration into compact assemblies.
Operates with supply voltage range from 3.1 V to 3.5 V. 1.65 V offset voltage enables high precision. 7-pin PG-VSON-6 surface mount packaging. Bandwidth of 48.2 kHz for rapid response. Temperature range from -40°C to 160°C for harsh environments.
Coreless Hall sensor technology for linearity and accuracy. Conforms to AEC-Q100 and ISO 26262 automotive standards. Integrated self-diagnostics improve safety during operation. Magnetic stray field suppression enhances measurement stability.
Compact dimensions: length 3.5 mm and height 0.9 mm.
Infineon Current Sensor ICs such as the TLE4972AE35S5XUMA1 are vital components for automotive and industrial electronics that require reliable current monitoring and control. Browse the Electronics & Electricals category at EnvMart for comprehensive sensor solutions from leading brands.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates with a supply voltage range from 3.1 V to 3.5 V.
The offset voltage for this unit is 1.65 V, enabling precise measurement.
It features a bandwidth of 48.2 kHz, allowing for fast response in measurements.
The sensor has a compact size of approximately 3.5 mm in length and 0.9 mm in height.
It can operate within a temperature range from -40°C to 160°C, suitable for harsh environments.
Yes, it complies with automotive standards including AEC-Q100 and ISO 26262, ensuring reliability in automotive applications.
This model is designed for surface mount applications.
It utilizes coreless Hall technology, which ensures accurate and linear measurement.
It includes integrated self-diagnostics that detect faults during operation, enhancing operational safety.
The package has a pin count of 7.
This current sensor is suitable for monitoring electrical drives in automotive systems and detecting overload and over-current conditions.
It conforms to RoHS standards, ensuring environmental compliance in its use.
