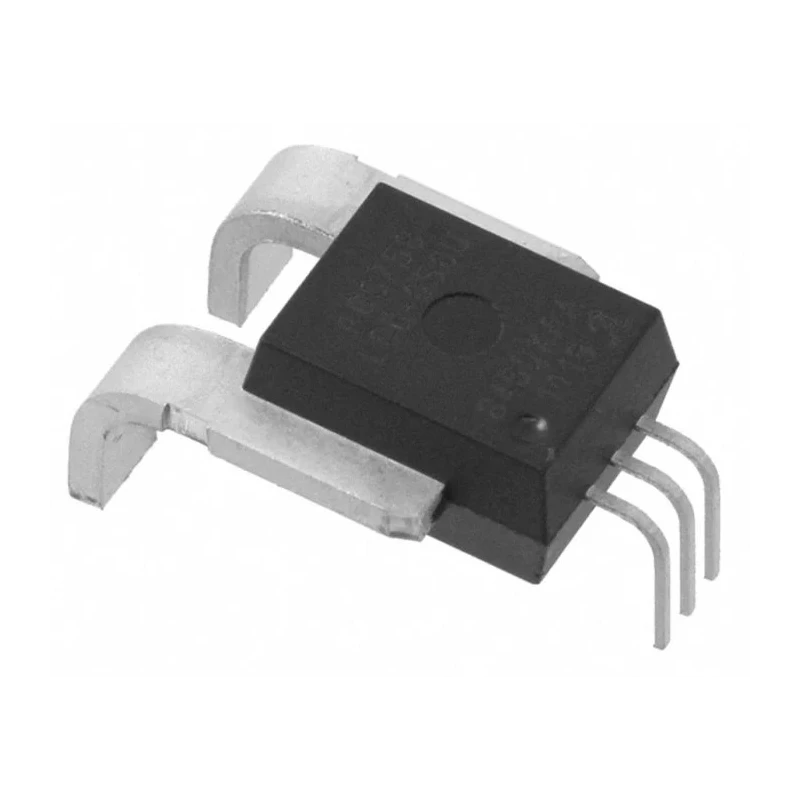

Allegro Microsystems Current Sensor IC 5-Pin Through Hole 4.5-5.5V Bandwidth 120kHz Offset Voltage ±6 mV ACS770LCB-050B-PFF-T

Allegro Microsystems ACS770LCB-050B-PFF-T is a high-performance current sensor integrated circuit designed for industrial and automotive applications. This 5-pin through hole Current Sensor IC operates at a supply voltage between 4.5 V and 5.5 V and offers a bandwidth of 120 kHz, making it suitable for measuring dynamic currents accurately.

The sensor features a low offset voltage of ±6 mV to ensure precise current measurements and complies with automotive standard AEC-Q100, guaranteeing robustness in harsh environments. It has a compact form factor with a length of 14 mm and height of 7 mm, packaged in a PFF type suitable for through hole mounting.

The ACS770 series provides up to 3000 Vrms galvanic isolation, improving the safety and reliability of current monitoring in complex electrical systems. This device is optimized for applications in automotive systems, industrial machinery, and power electronics where accurate current sensing and electrical isolation are critical.

The operating temperature range from -40°C to 150°C ensures dependable performance under extreme environmental conditions. The Allegro Microsystems ACS770LCB-050B-PFF-T is an ideal choice for industrial monitoring, laboratory instrumentation, automotive electronics, and manufacturing process control.

Operates within a supply voltage range of 4.5 V to 5.5 V. Features a low offset voltage of ±6 mV for accurate measurement. 5-pin PFF package design suitable for through hole mount. Provides a bandwidth of 120 kHz for precise current sensing.

Complies with automotive standard AEC-Q100 for harsh environments. Supports operating temperatures from -40°C to 150°C. Compact dimensions of 14 mm length and 7 mm height. Offers galvanic isolation up to 3000 Vrms for electrical safety.
