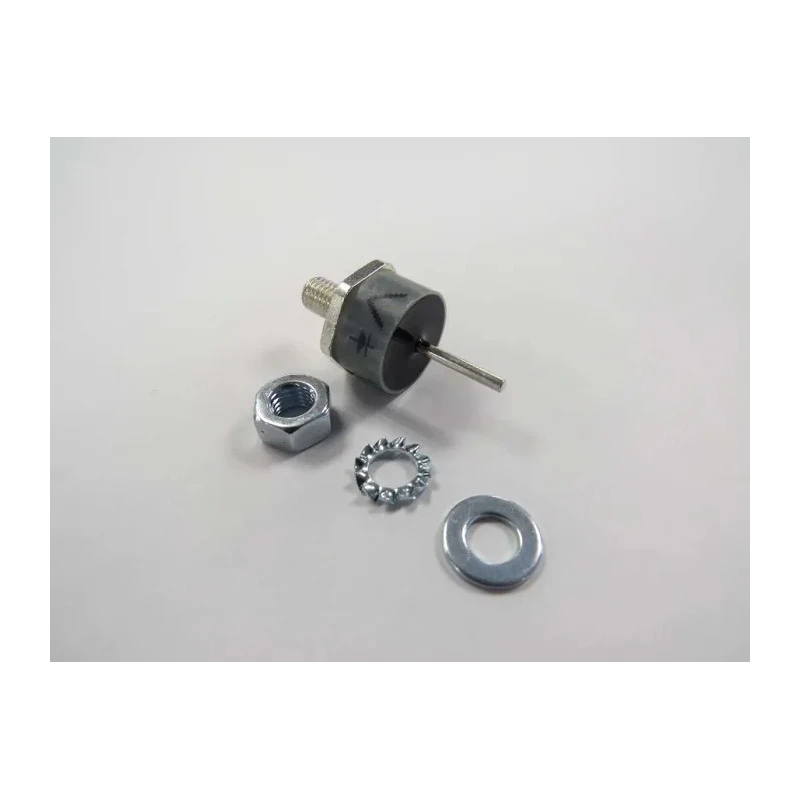

Vishay 800 V 80 A Standard Recovery Stud Mount Diode DO-2013AB VS-80PFR80W
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 17.25mm |
| Brand | Vishay |
| Height | 17.25mm |
| Length | 36.4mm |
| Model | VS-80PFR80W |
| Width | 18.9mm |
| Mount Type | Stud Mount |
| Series | VS-80PF(R).(W) |
| Maximum Operating Temperature | 180°C |
| Package Type | DO-2013AB |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 80A |
| Peak Reverse Repetitive Voltage Vrrm | 800V |
| Diode Configuration | Stud Anode |
| Rectifier Type | Recovery |
| Peak Reverse Current Ir | 9mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 1.6kA |
| Maximum Forward Voltage Vf | 1.4V |
Key Features
- Stud mount package type DO-2013AB suitable for robust mounting.
- Peak reverse repetitive voltage of 800 V ensures high voltage tolerance.
- Maximum continuous forward current rated at 80 A for heavy load applications.
- Recovery rectifier type designed for fast switching performance.
- Operating temperature range from -55°C to 180°C provides wide thermal stability.
- Compact dimensions with length 36.4 mm, width 18.9 mm, height and diameter 17.25 mm.
- Peak non-repetitive forward surge current of 1.6 kA for transient overload protection.
- Maximum forward voltage of 1.4 V optimizes efficiency in power circuits.
Product Description
Vishay VS-80PFR80W is a high-performance standard recovery diode designed for industrial and electronic power applications requiring robust rectification capabilities.
This stud mount diode features a DO-2013AB package providing reliable mechanical fixing and thermal dissipation. With a maximum continuous forward current of 80 A and peak reverse repetitive voltage of 800 V, it is suitable for demanding power supply and rectification use cases in industrial, manufacturing, and electronic assembly.
The diode delivers efficient recovery rectification with a maximum forward voltage of 1.4 V, minimizing power loss during conduction. Its wide operating temperature range from -55°C to 180°C allows operation in harsh environments, including HVAC systems and industrial machinery.
Mechanical dimensions include a length of 36.4 mm, width of 18.9 mm, and height and diameter both 17.25 mm, facilitating seamless integration on power boards and modules. The device supports peak non-repetitive forward surge currents up to 1.6 kA, offering robust protection against transient currents.
The 2-pin stud anode configuration simplifies electrical connectivity in power circuits. The diode conforms to RoHS environmental standards, making it a compliant choice for green manufacturing processes.
Stud mount package type DO-2013AB suitable for robust mounting. Peak reverse repetitive voltage of 800 V ensures high voltage tolerance. Maximum continuous forward current rated at 80 A for heavy load applications. Recovery rectifier type designed for fast switching performance.
Operating temperature range from -55°C to 180°C provides wide thermal stability. Compact dimensions with length 36.4 mm, width 18.9 mm, height and diameter 17.25 mm. Peak non-repetitive forward surge current of 1.6 kA for transient overload protection.
Maximum forward voltage of 1.4 V optimizes efficiency in power circuits. Pin count of 2 with stud anode diode configuration for straightforward connection. Complies with RoHS standards ensuring environmental safety. This diode serves a wide range of industrial electronics, power rectification, and semiconductor applications requiring reliable standard recovery characteristics.
Explore additional Vishay semiconductor components and power devices in EnvMart's extensive inventory.
Explore more products in our Semiconductor Diode category.
