| Country of Origin | India |
|---|---|
| Brand | DiodesZetex |
| Height | 1mm |
| Length | 2.2mm |
| Model | BAT54CW-7-F |
| Width | 1.35mm |
| Mount Type | Surface |
| Series | BAT54CW |
| Maximum Operating Temperature | 125°C |
| Package Type | SC-70 |
| Minimum Operating Temperature | -65°C |
| Pin Count | 3 |
| Maximum Continuous Forward Current If | 200mA |
| Peak Reverse Repetitive Voltage Vrrm | 30V |
| Diode Configuration | Common Cathode |
| Rectifier Type | Switching |
| Peak Reverse Current Ir | 2μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 600mA |
| Maximum Forward Voltage Vf | 1V |
| Peak Reverse Recovery Time trr | 5ns |

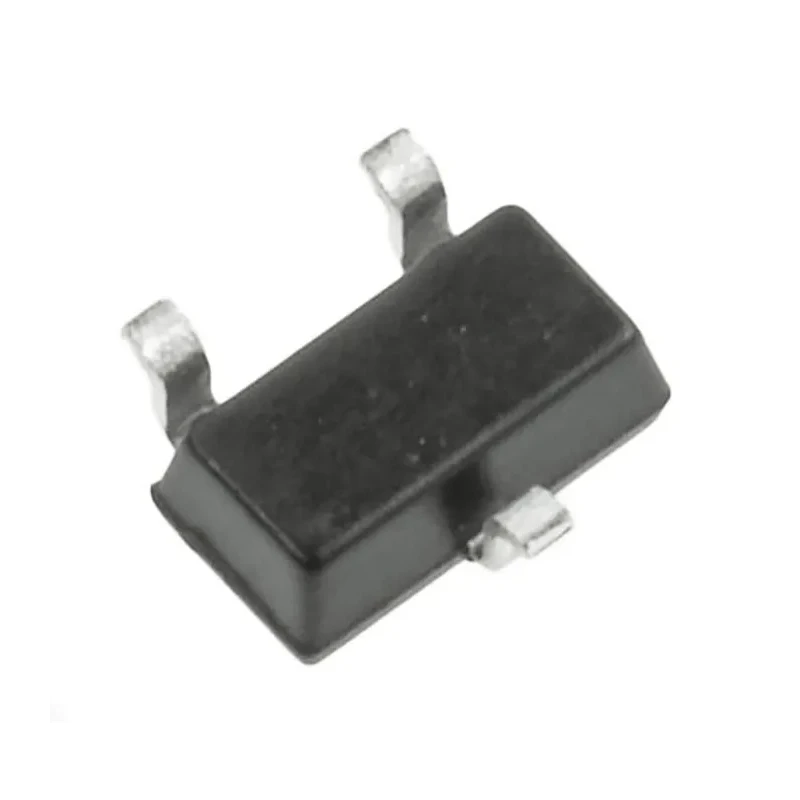

DiodesZetex BAT54CW-7-F switching diode is designed for efficient, reliable rectification and switching in electronic circuits. This semiconductor diode features a surface mount package (SC-70) with a compact 3-pin design, suitable for space-constrained applications.
Boasting a maximum continuous forward current of 200 mA and a peak reverse voltage of 30 V, this diode ensures robust performance in both commercial and industrial electronics.
The diode’s low forward voltage drop of 1 V and rapid peak reverse recovery time of 5 ns make it an ideal choice for switching power supplies, signal lines, and protection circuits.
Operating temperature range from -65°C to 125°C allows deployment in varied environmental conditions, including automotive and industrial scenarios. The BAT54CW-7-F features a common cathode configuration and super barrier rectifier technology, enhancing its efficiency and thermal stability over comparable Schottky diodes.
Package dimensions of 2.2 mm (L) x 1.35 mm (W) x 1 mm (H) facilitate easy PCB layout integration and manufacturing. The diode’s low leakage current of 2 μA reduces power loss in circuits. A peak non-repetitive forward surge current rating of 600 mA ensures transient robustness.
This diode is widely used in electronics manufacturing, power supplies, automotive electronics, telecommunications, and industrial automation systems. Choose DiodesZetex BAT54CW-7-F for reliable switching diode requirements with excellent electrical characteristics.
Explore more products in the Semiconductor Diodes category at EnvMart.
