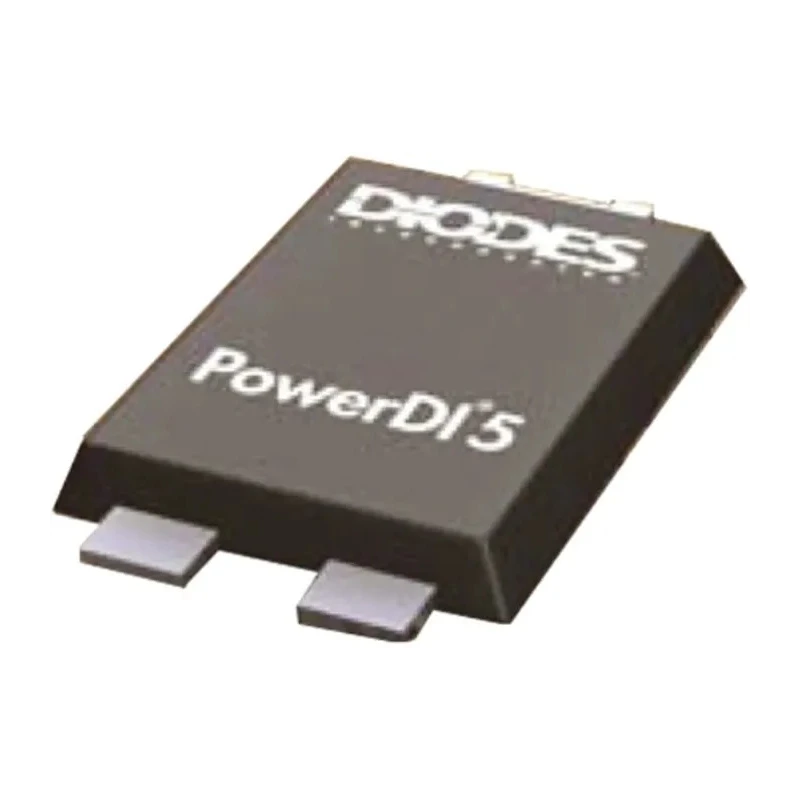

DiodesZetex Schottky Barrier Diode 50V 15A 3-Pin PowerDI5 Surface Mount SBRT15U50SP5-13
Specifications
| Country of Origin | India |
|---|---|
| Brand | DiodesZetex |
| Height | 1.15mm |
| Length | 4.05mm |
| Model | SBRT15U50SP5-13 |
| Width | 5.45mm |
| Mount Type | Surface |
| Series | 15A TrenchSBR |
| Maximum Operating Temperature | 150°C |
| Package Type | PowerDI5 |
| Minimum Operating Temperature | -65°C |
| Standards/Approvals | FBI |
| Pin Count | 3 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 15A |
| Peak Reverse Repetitive Voltage Vrrm | 50V |
| Diode Configuration | Single |
| Rectifier Type | Barrier |
| Peak Reverse Current Ir | 105mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 290A |
| Maximum Forward Voltage Vf | 470mV |
Key Features
- Designed with a low forward voltage drop of 470mV for high efficiency.
- Maximum continuous forward current of 15 amperes ensuring reliable performance.
- Peak reverse repetitive voltage of 50 volts supports diverse industrial applications.
- Operates within a temperature range from -65°C to 150°C providing thermal stability.
- Features a 3-pin barrier rectifier design optimized for automotive and power conversion uses.
- Complies with AEC-Q101 automotive standard ensuring durability and quality.
- Capable of handling peak non-repetitive forward surge currents up to 290 amperes.
- Constructed with advanced 15A Trench Schottky Barrier Rectifier technology for enhanced thermal and electrical characteristics.
Product Description
DiodesZetex SBRT15U50SP5-13 is a high-performance Schottky Barrier Diode housed in a surface mount 3-pin PowerDI5 package. It is rated for a maximum continuous forward current of 15 amperes and a peak reverse repetitive voltage of 50 volts. This diode is designed for reliable operation in demanding industrial, automotive, and power electronics applications.
The device features a low forward voltage of 470mV, reducing power losses and improving overall circuit efficiency. It meets the stringent automotive standard AEC-Q101, assuring robust performance under harsh environmental conditions. With an operating temperature range from -65°C to 150°C, it offers excellent thermal stability suitable for use in both automotive and industrial environments.
Compact in size, the diode measures 4.05mm in length, 5.45mm in width, and 1.15mm in height, facilitating flexible PCB design and assembly. It is engineered using advanced 15A Trench Schottky Barrier Rectifier technology, providing superior electrical characteristics and high surge current capability of 290 amperes.
This diode configuration includes a single diode barrier structure with a 3-pin design. It effectively supports power conversion, rectification, and protection circuits in applications ranging from automotive electronics to industrial power supplies.
Low forward voltage drop for efficient power handling. High continuous forward current rating of 15A for demanding loads. Wide operating temperature range ensures reliable performance in extreme conditions. Automotive-grade standard compliance boosts quality assurance.
Compact surface-mount package suits modern PCB layouts. High surge current tolerance safeguards against transient conditions. Advanced trench technology enhances electrical performance. Three-pin barrier rectifier configuration for versatile circuit applications.
This DiodesZetex Schottky Barrier Diode is an ideal component for industrial, automotive, power supply, and consumer electronic circuit designs. Explore more semiconductor and diode products from EnvMart for comprehensive electronics solutions.
Explore more products in our Semiconductor Diode category.
