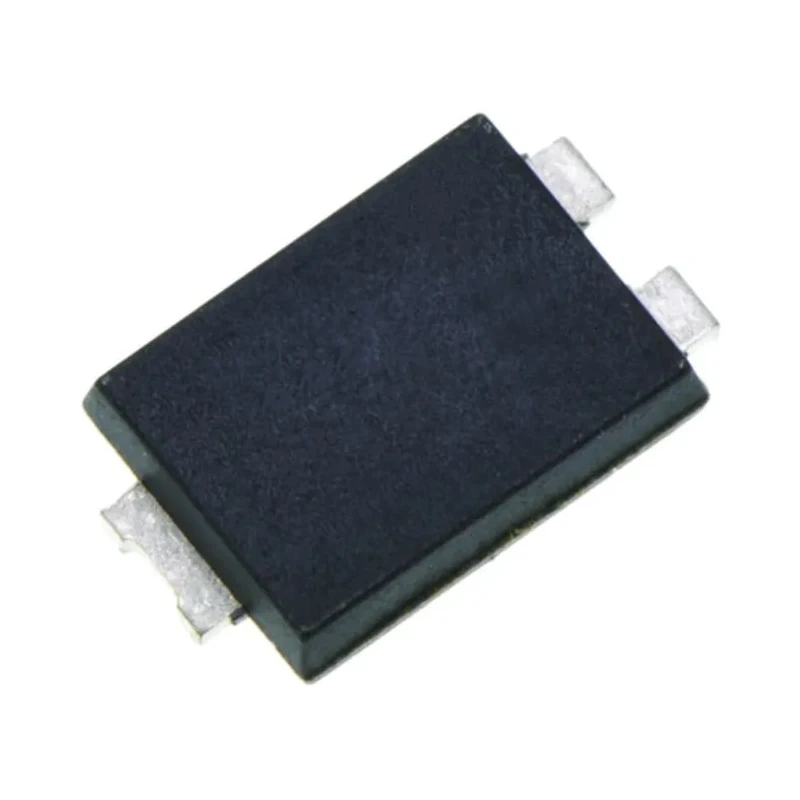

DiodesZetex 60 V 20 A Avalanche Rectifier Diode Surface Mount PowerDI5 Package SBRT20U60SP5-7
Specifications
| Country of Origin | India |
|---|---|
| Brand | DiodesZetex |
| Height | 1.1mm |
| Length | 5.45mm |
| Model | SBRT20U60SP5-7 |
| Width | 4.05mm |
| Mount Type | Surface |
| Series | 20A TrenchSBR |
| Maximum Operating Temperature | 150°C |
| Package Type | PowerDI5 |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | FBI |
| Pin Count | 3 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 20A |
| Peak Reverse Repetitive Voltage Vrrm | 60V |
| Diode Configuration | Single |
| Rectifier Type | Avalanche |
| Peak Reverse Current Ir | 80mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 320A |
| Maximum Forward Voltage Vf | 530mV |
Key Features
- Features an avalanche rectifier type suitable for high reliability electronic circuits.
- Single diode configuration with three pins for efficient mounting.
- Support for peak non-repetitive forward surge current of 320 A ensures robustness.
- Operating temperature range from -55°C to 150°C allows use in harsh environments.
- Low forward voltage of 530 mV helps in reducing power losses.
- Complies with automotive standard AEC-Q101, ensuring suitability for automotive applications.
- Compact dimensions of 5.45 mm length, 4.05 mm width, and 1.1 mm height facilitate PCB space saving.
- Mount type is surface mount for modern assembly processes.
Product Description
DiodesZetex SBRT20U60SP5-7 Avalanche Rectifier Diode is an advanced Schottky barrier rectifier designed to meet high power and reliability requirements in semiconductor applications. Featuring a surface mount PowerDI5 package with a compact form factor, this diode operates efficiently with a maximum continuous forward current of 20 A and a peak reverse repetitive voltage of 60 V. The device is well-suited for power supply circuits, automotive electronics, and other industrial applications requiring high surge capability and avalanche robustness.
The diode configuration is single with 3-pin PowerDI5 packaging offering easy integration into surface mount PCBs. It supports a peak non-repetitive forward surge current of 320 A, making it robust against transient overloads. The maximum forward voltage of 530 mV helps reduce conduction losses, improving overall system efficiency.
Operating reliably between -55°C and 150°C, the SBRT20U60SP5-7 diode complies with automotive standard AEC-Q101 and FBI standards, confirming its quality for automotive and industrial use. Its small dimensions (5.45 mm length, 4.05 mm width, 1.1 mm height) optimize PCB space.
High avalanche and surge current handling enhances reliability. Designed for surface mount assembly to streamline manufacturing. Low forward voltage drop minimizes power dissipation. Wide operating temperature range supports diverse operating environments.
Meets automotive quality and industry performance standards. Compact form factor facilitates versatile usage in electronic design. Suitable for power conversion, rectification, and voltage clamping in circuits.
This diode is ideal for industrial, automotive, manufacturing, power electronics, and semiconductor applications requiring durable and efficient rectification solutions. Explore more DiodesZetex semiconductor components in EnvMart’s extensive electronics category to find optimal parts for your projects.
Explore more products in our Semiconductor Diode category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current for this model is 20 A.
This diode has a peak reverse repetitive voltage rating of 60 V.
The operating temperature range for this diode is from -55°C to 150°C.
It comes in a PowerDI5 package type, which is suitable for surface mount applications.
The diode supports a peak non-repetitive forward surge current of 320 A.
The maximum forward voltage drop is 530 mV, which helps in reducing power losses.
It complies with the automotive standard AEC-Q101 and FBI standards.
The diode configuration is single with a 3-pin design for efficient mounting.
The dimensions are 5.45 mm in length, 4.05 mm in width, and 1.1 mm in height.
This model is an avalanche rectifier type, designed for high reliability applications.
It is suitable for power supply circuits, automotive electronics, and other industrial applications requiring high surge capability.
The peak reverse current rating is 80 mA.
