Bridgetek FT810 EVE Credit Card 5 in LCD Development Module VM810C50A-D

Free Delivery in India | Lowest Global Shipping Charges

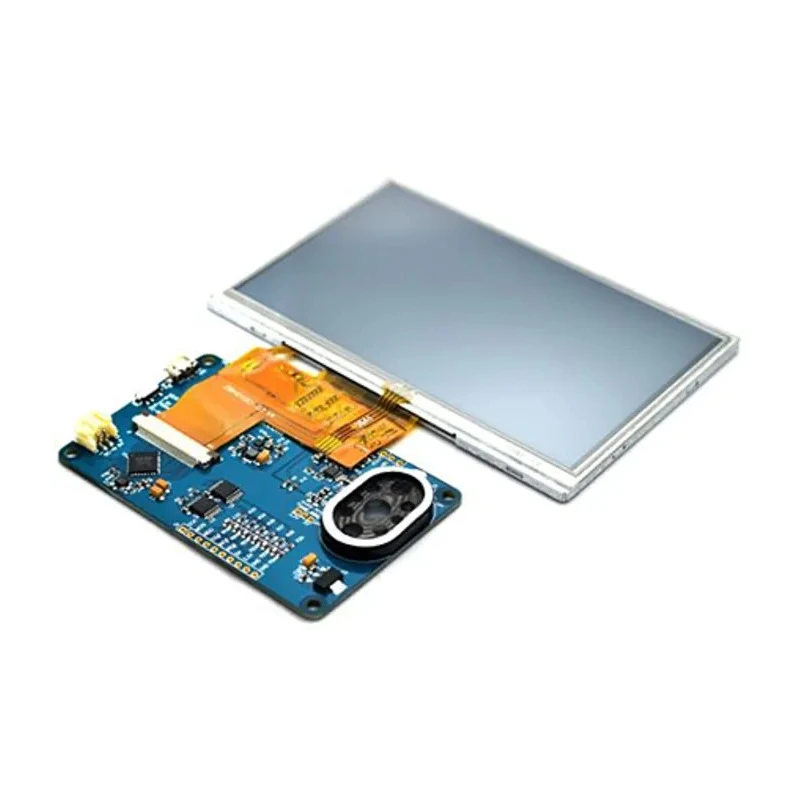

Bridgetek FT810 EVE Credit Card 5 in LCD Development Module VM810C50A-D

Name: Bridgetek FT810 EVE Credit Card 5 in LCD Development Module VM810C50A-D
Brand: Bridgetek
SKU: 270806
Price: 129.96 USD
Availability: InStock



Category RF Module Brand Bridgetek Condition New

Specifications

Country of Origin	China
Display	Touchscreen
Brand	Bridgetek
Dimensions	85.6 x 54.1mm
Model	VM810C50A-D
Display Technology	LCD
Interfaces	USB, SPI connector or 2-pin connector
Interface Type	SPI
For Use With	FT810
Kit Classification	Development Module
Kit Name	FT810 EVE Credit Card
Host communication	serial SPI with 5V tolerant buffers
Diagonal Display Size	5in

Key Features

This development module supports any LCD panel compliant with FT810 specifications and fits the VM810C connector.
Constructed with an FT810 EVE2 Embedded Graphics Engine device for enhanced graphics performance.
Features a 40-way Flex-Cable connector suitable for LCD panels and touchscreen inputs.
Includes an onboard LCD backlight LED driver capable of up to 60mA output.
Equipped with a mono audio power amplifier, a 3-stage audio filter, and an 8Ω micro speaker for audio output.
Provides audio line-out options and flexible host communications via serial SPI that includes 5V tolerant buffers.
Power supply options include micro-USB, SPI connector, or a 2-pin connector for versatility.
Compact dimensions of 85.6 mm by 54.1 mm make it suitable for embedded applications.

Product Description

Bridgetek VM810C50A-D FT810 EVE Credit Card 5 in LCD Development Module is a specialized display board engineered to facilitate advanced development with the FT810 graphics engine device.

It supports wide compatibility with LCD panels that conform to the FT810 technical specifications and connects using a 40-way Flex-Cable connector which supports both the LCD panel and touchscreen inputs, making it ideal for interactive displays.

The module includes an integrated LCD backlight LED driver capable of supplying up to 60mA to enhance visual clarity and brightness. Audio capabilities are well supported with an onboard mono audio power amplifier, a three-stage audio filter, and an included 8Ω micro speaker, alongside an audio line-out option to extend sound system capabilities.

Communication with host devices is streamlined through a serial SPI interface featuring 5V tolerant buffers, allowing robust and flexible data exchange. The module’s power supply can be sourced from micro-USB, SPI, or a 2-pin connector, ensuring adaptability for various embedded system configurations.

This development module's compact and practical dimensions (85.6 × 54.1 mm) suit a variety of industrial, laboratory, educational, and product development environments where an embedded graphics display is required.

Its features make it highly suitable for use in industrial automation systems, embedded computing development, and interactive device prototyping. This FT810 EVE2 module supports touchscreen LCD panels compliant with FT810 specifications.

Onboard LED backlight driver and audio amplifier ensure integrated visual and sound capabilities. Multi-interface power options and robust SPI host communication increase compatibility. Compact size allows easy integration into diverse embedded system projects.

Applicable across embedded systems development, educational kits, and industrial prototyping platforms. Explore more advanced display development tools and embedded solutions on EnvMart.
