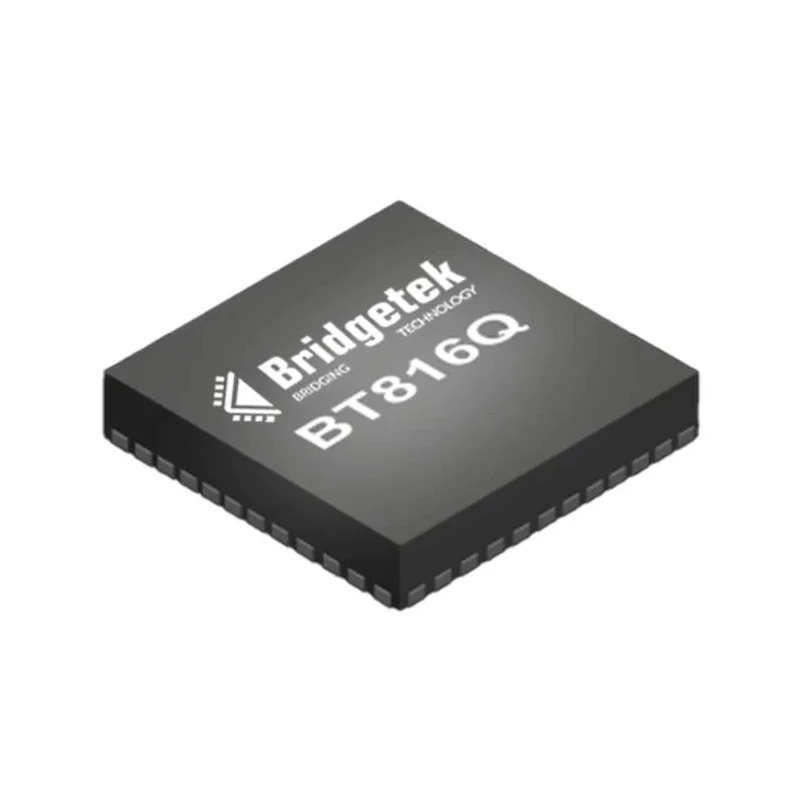

Bridgetek BT81X Series Microcontroller with FLASH Memory, 72 MHz Clock, 64-Pin VQFN Package BT816Q-T

Free Delivery in India | Lowest Global Shipping Charges

Bridgetek BT81X Series Microcontroller with FLASH Memory, 72 MHz Clock, 64-Pin VQFN Package BT816Q-T

Name: Bridgetek BT81X Series Microcontroller with FLASH Memory, 72 MHz Clock, 64-Pin VQFN Package BT816Q-T
Brand: Bridgetek
SKU: 333843
Price: 10.27 USD
Availability: InStock



Category Microcontroller Brand Bridgetek Condition New

Specifications

Country of Origin	India
Brand	Bridgetek
Height	850μm
Length	9mm
Model	BT816Q-T
Width	9mm
Mount Type	Surface
Series	BT81X
Maximum Operating Temperature	85°C
Package Type	VQFN
Minimum Operating Temperature	-40°C
Ram size	1MB
Interface Type	QSPI, I2C, Parallel RGB, SPI
Standards/Approvals	Pb-Free, RoHS
Pin Count	64
Maximum Supply Voltage	3.3V
Minimum Supply Voltage	1.8V
Maximum Clock Frequency	72MHz
Number of Programmable I/Os	4
Maximum Expanded Memory Size	2GB
Program Memory Type	FLASH

Key Features

Operates with a maximum clock frequency of 72 MHz for efficient performance.
Equipped with 1MB RAM size and supports up to 2GB expanded memory.
Interfaces include QSPI, I2C, Parallel RGB, and SPI for versatile connectivity options.
Supports a wide operating temperature range from -40°C to 85°C to suit various environmental conditions.
Compact 64-pin VQFN surface mount package measuring 9mm x 9mm x 0.85mm for space-sensitive designs.
Program memory type is FLASH, enabling reliable embedded program storage.
Designed compliant with Pb-Free and RoHS standards ensuring environmental safety.
Minimum and maximum supply voltages are 1.8V and 3.3V respectively, supporting low power consumption.

Product Description

Bridgetek BT816Q-T microcontroller, part of the BT81X series, operates at a maximum clock frequency of 72 MHz featuring 1MB RAM and FLASH program memory. It is housed in a compact 64-pin VQFN surface mount package with dimensions 9mm by 9mm and a height of 850μm, designed specifically for embedded applications requiring advanced graphical human-machine interfaces (HMIs).

This microcontroller supports multiple interface types including QSPI, I2C, Parallel RGB, and SPI, enabling broad compatibility with various peripheral devices and display modules. The device manages extended memory sizes up to 2GB and includes 4 programmable I/O pins facilitating user customization.

Equipped to operate efficiently across a wide temperature range from -40°C up to 85°C, the BT816Q-T ensures robust performance in industrial, automotive, and embedded system environments. Its supply voltage ranges from a minimum 1.8V to a maximum of 3.3V, supporting low power design requirements. The FLASH program memory type offers reliable program storage and quick access rates for embedded software.

The product meets regulatory compliance with Pb-Free and RoHS standards, ensuring environmental safety and suitability for global markets. Its small footprint and surface mount package make it ideal for compact electronic designs and high-density PCB layouts.

Typical use cases include embedded electronics development, industrial control systems, graphical interface controllers, and any application requiring reliable performance and flexibility in microcontroller interfacing.

Operates at 72 MHz clock frequency for efficient processing. Supports 1MB RAM and up to 2GB of expanded memory. Multiple interface types: QSPI, I2C, Parallel RGB, SPI. Wide operating temperature range: -40°C to 85°C. Compact 64-pin VQFN surface mount package, 9mm x 9mm x 0.85mm.

FLASH program memory for reliable embedded code storage. Complies with Pb-Free and RoHS environmental standards. Supply voltage between 1.8V and 3.3V supporting low power designs. Explore more Microcontrollers and embedded components at EnvMart for industrial, commercial, and laboratory applications.
