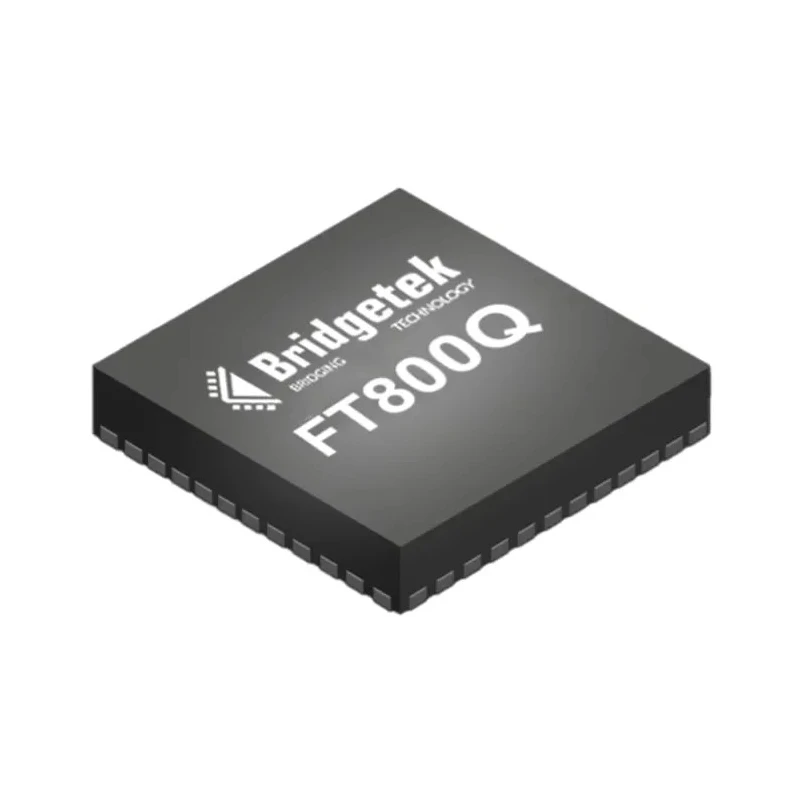

Bridgetek Graphics Controller 48 MHz 512 x 512 Pixels 48-Pin QFN FT800Q-R

Bridgetek FT800Q-R graphics controller operates at 48 MHz with a display resolution of 512 x 512 pixels, packaged in a compact 48-pin QFN form factor. The device integrates multiple functions including graphics control, audio processing, and resistive touch control, making it ideal for embedded applications requiring high quality Human Machine Interfaces (HMIs).

The FT800 features an Embedded Video Engine (EVE) that eliminates traditional frame buffer memory by rendering images line by line at a fine 1/16th pixel resolution. This approach supports efficient memory use and flexible display configurations.

Designed to operate with a supply voltage range of 1.8V to 3.3V, the controller supports a wide array of embedded devices such as thermostats, medical instruments, security systems, and graphic touchpads. It also includes built-in fonts and sound synthesizer functionalities stored in ROM for enhanced multimedia applications.

Its advanced dithering hardware enables the chip to deliver true 24-bit color quality on an 18-bit interface, ensuring vibrant displays. Further, the FT800 offers multiple power saving modes including power down, sleep, and standby to optimize energy use.

The mono audio output with PVM and PWM allows for programmable audio and display brightness control. Its surface mount QFN package with precise dimensions (7 mm length and 0.9 mm height) suits compact PCB designs.

The FT800Q-R integrates graphics, audio, and touch controller functionalities. It efficiently produces high-quality displays suitable for commercial and industrial HMIs. The embedded video engine renders images without frame buffer memory.

Supports a wide supply voltage range from 1.8V to 3.3V. Preloaded ROM fonts and sounds enhance multimedia interfacing. Applications include medical appliances and instrumentation. Supports 24-bit color output with dithering hardware.

Multiple power modes reduce power consumption. Compact 48-pin QFN surface mount package.

This graphics controller is ideal for industrial, commercial, and embedded systems requiring robust graphical and audio integration with touch capabilities. Explore the Electronics & Electricals > Semiconductor > Graphics Controllers category for related products at EnvMart.
