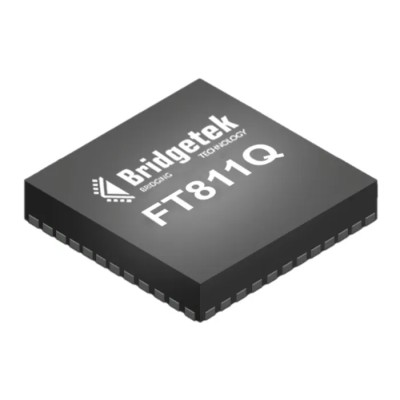

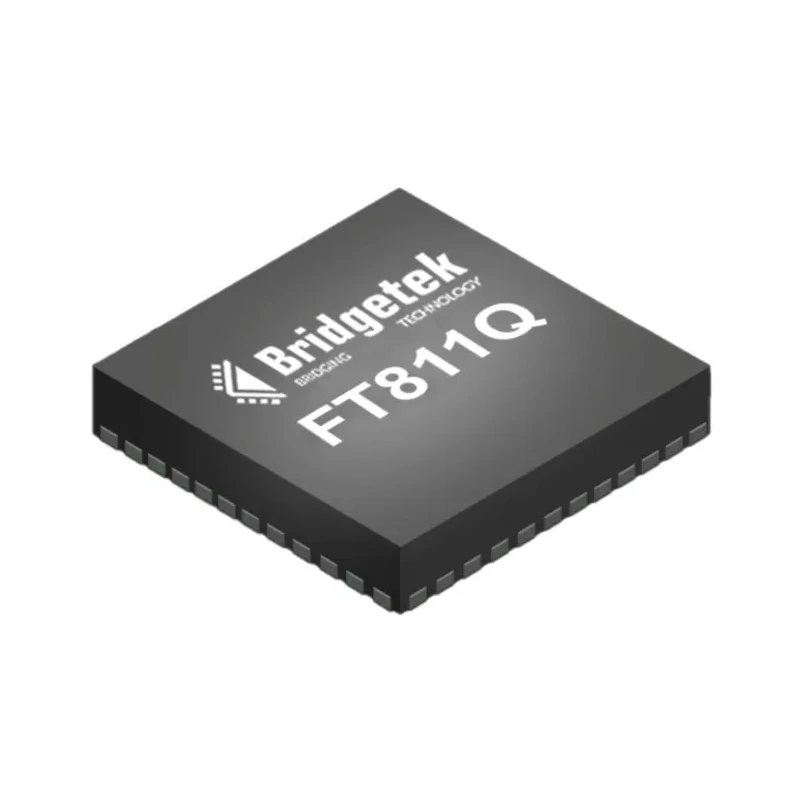

Bridgetek FT811Q-T Graphics Controller 60 MHz 800 x 600 pixels SPI Interface 48-Pin VQFN FT811Q-T

Bridgetek FT811Q-T graphics controller is a high-performance semiconductor device designed for embedded video engine (EVE) applications requiring detailed and responsive graphical interfaces. The controller operates at a maximum frequency of 60 MHz and supports an 800 x 600 pixel (SVGA) resolution, delivering crisp and clear display quality suitable for industrial, laboratory, and embedded system applications.

Featuring a compact 48-pin VQFN surface mount package, the FT811Q-T integrates seamlessly into compact PCB layouts, optimizing space without compromising functionality. The device supports SPI interface communication, allowing single, dual, or quad SPI data lines at clock speeds up to 30 MHz, which enables fast and reliable data transfer between the controller and host processor.

The built-in Embedded Video Engine (EVE) technology provides advanced graphics control including touch screen interfaces supporting both 4-wire resistive and 5-touch capacitive screens. It tracks multiple touch points and supports up to 255 touch tags, enhancing interactive applications for human-machine interfaces (HMI) in industrial automation, medical devices, and consumer electronics.

This controller includes integrated 1MB graphics RAM eliminating the need for external frame buffer memory, reducing system complexity and cost. It supports playback of motion-JPEG encoded AVI videos and audio playback for mono 8-bit linear PCM, 4-bit ADPCM, and μ-Law coded formats with built-in digital filtering to simplify system design.

Operable across a supply voltage range from 1.8V to 3.3V and capable of withstanding operating temperatures between -40°C and 85°C, the FT811Q-T is suitable for robust applications requiring environmental resilience. Moreover, the device is Pb-Free and RoHS compliant, ensuring it meets current environmental regulations for electronic components.

Supports display resolution up to 800 x 600 pixels for high-quality visuals. Integrated Embedded Video Engine with audio and touch screen interface capabilities. Compact 48-pin VQFN surface mount package for easy PCB integration.

Compatible with SPI interface supporting single, dual, and quad data lines. Integrated 1MB graphics RAM eliminates need for external frame buffer memory. Supports motion-JPEG AVI video playback and multiple audio coding formats.

Operates over wide temperature and voltage ranges for industrial use cases. Designed for embedded systems, industrial automation, medical devices, and consumer electronics. Compliant with Pb-Free and RoHS environmental standards.
