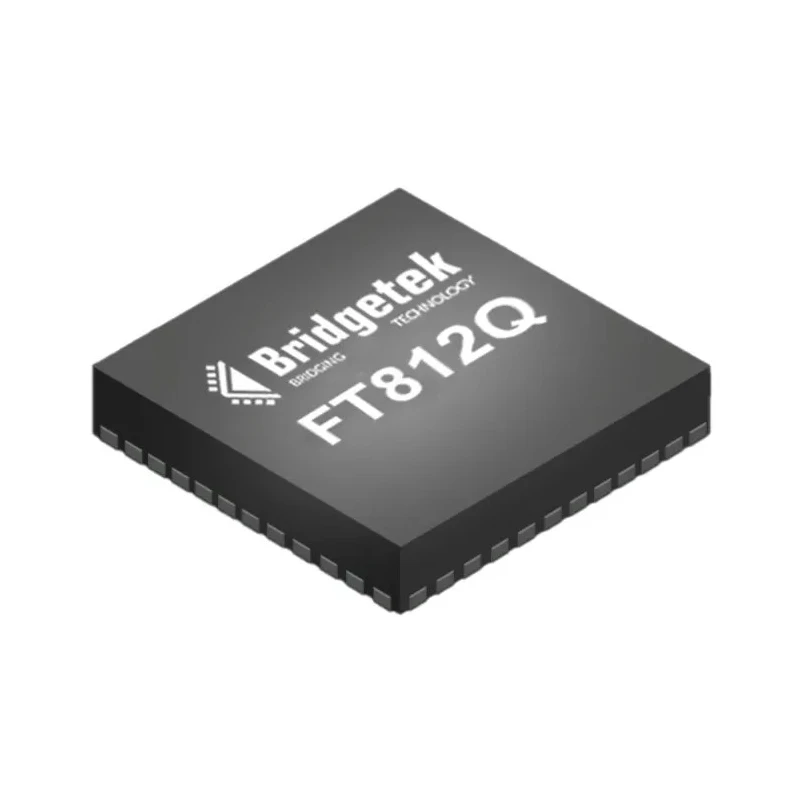

Bridgetek Graphics Controller 60 MHz 800 x 600 pixels SPI/QSPI 56-Pin VQFN FT812Q-T
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | Bridgetek |
| Height | 0.85mm |
| Length | 8mm |
| Model | FT812Q-T |
| Mount Type | Surface |
| Display Resolution | 800 x 600 pixels |
| Maximum Operating Temperature | 85°C |
| Package Type | VQFN |
| Minimum Operating Temperature | -40°C |
| Interface Type | SPI/QSPI |
| Standards/Approvals | RoHS, Pb-Free |
| Maximum Frequency | 60MHz |
| Pin Count | 56 |
| Maximum Supply Voltage | 3.3V |
| Minimum Supply Voltage | 1.8V |
| Maximum screen resolution | 800 x 600pixel (SVGA) |
| Video RGB parallel output | 18-bit (FT810/811), 24-bit (FT812/813) |
Key Features
- Operates at a maximum frequency of 60 MHz for smooth performance.
- Supports 800 x 600 pixel (SVGA) display resolution.
- Uses a 56-pin VQFN surface mount package for compact PCB footprint.
- Compatible with SPI and QSPI interfaces for flexible connectivity.
- Operates within a supply voltage range of 1.8V to 3.3V.
- Operates reliably from -40°C to 85°C operating temperature.
- Integrated Embedded Video Engine (EVE) for graphics, audio, and touch control.
- Supports 4-wire resistive and 5-touch capacitive touch screen interfaces.
Product Description
Bridgetek FT812Q-T is a high-performance graphics controller designed for embedded video engine applications, delivering 60 MHz operating frequency and 800 x 600 pixel (SVGA) resolution. Packaged in a compact 56-pin VQFN surface mount, it provides efficient graphics control with SPI/QSPI interface options.
The FT812Q-T supports 18-bit to 24-bit video RGB parallel outputs and includes an integrated 1MB graphics RAM, which eliminates the need for external frame buffers. Its hardware engine enables smooth audio playback of various formats and supports advanced touch screen functionalities, including 4-wire resistive and 5-touch capacitive touch screens, enhancing user interface experiences.
Built to operate over a wide voltage range of 1.8V to 3.3V and temperature range from -40°C to 85°C, this graphics controller is suitable for industrial, electronics manufacturing, and embedded system applications requiring reliable and flexible graphical display and audio control.
Operates at a maximum frequency of 60 MHz for smooth performance. Supports 800 x 600 pixel (SVGA) display resolution. Compact 56-pin VQFN surface mount package for efficient PCB design. Compatible with SPI and QSPI interfaces for high-speed communication.
Wide operating voltage range from 1.8V to 3.3V for compatibility with various systems. Wide operating temperature range from -40°C to 85°C for industrial environments. Integrated Embedded Video Engine (EVE) supports graphics, audio, and touch interfaces.
Supports 4-wire resistive and 5-touch capacitive touch screen inputs. Includes 1MB on-chip graphics RAM, no external frame buffer required. Built-in audio wave playback with multiple format support and digital filtering.
This graphics controller is ideal for industrial automation, electronic devices, audio/video systems, and embedded controllers needing efficient, high-quality graphics and user interface support. Explore more Graphics Controllers and components at EnvMart to suit your application needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating frequency of the FT812Q-T graphics controller is 60 MHz, ensuring smooth performance for applications.
It supports a display resolution of 800 x 600 pixels (SVGA), suitable for various graphical applications.
The FT812Q-T operates within a supply voltage range of 1.8V to 3.3V, allowing compatibility with different systems.
This model is packaged in a compact 56-pin VQFN surface mount package, which is efficient for PCB design.
It is compatible with SPI and QSPI interfaces, providing flexible connectivity options for various applications.
The FT812Q-T operates reliably within a temperature range of -40°C to 85°C, making it suitable for industrial environments.
Yes, it includes 1MB of on-chip graphics RAM, eliminating the need for external frame buffers.
It supports 4-wire resistive and 5-touch capacitive touch screen interfaces, enhancing user interaction capabilities.
The dimensions of this graphics controller are 8mm in length and 0.85mm in height.
This model complies with RoHS and is Pb-Free, ensuring it meets environmental safety standards.
It is suitable for industrial automation, electronic devices, audio/video systems, and embedded controllers requiring efficient graphics and user interface support.
