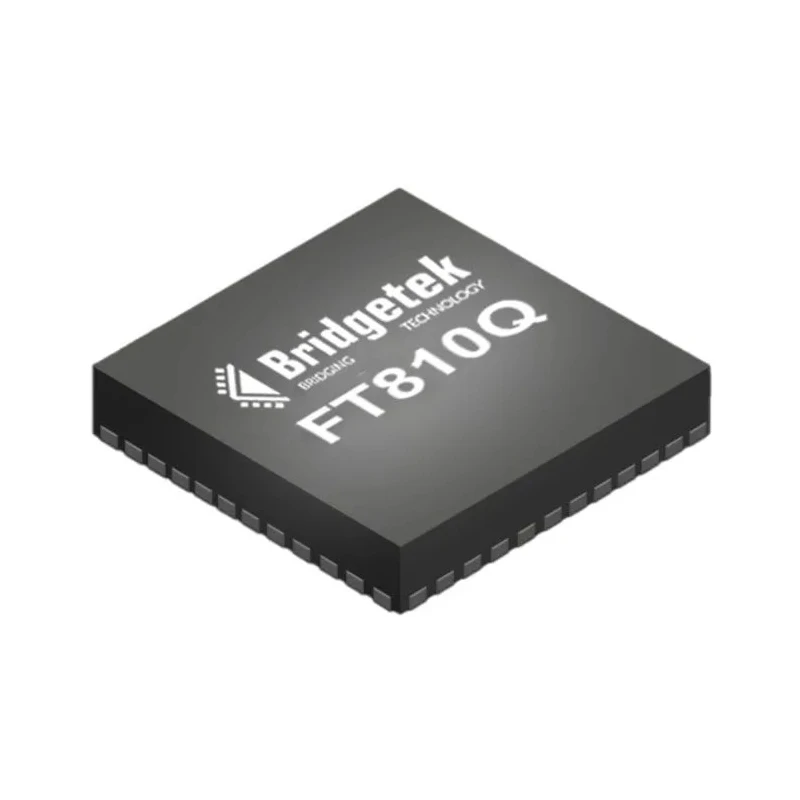

Bridgetek Graphics Controller 60 MHz 800 x 600 pixels SPI 48-Pin VQFN FT810Q-T

Bridgetek FT810Q-T graphics controller is a high-performance embedded video engine designed to deliver superior graphics control and audio capabilities with a maximum operating frequency of 60 MHz. The controller supports screen resolutions up to 800 x 600 pixels (SVGA), providing clear and sharp display outputs suitable for a wide range of embedded display applications. Packaged in a compact 48-Pin VQFN surface mount form factor, it easily integrates into modern compact electronic devices.

This graphics controller provides versatile touch screen interface support, compatible with both 4-wire resistive and 5-touch capacitive touch screens, expanding its usability for advanced human-machine interfaces. The built-in audio engine allows playback of mono 8-bit linear PCM, 4-bit ADPCM, and μ-Law coded audio with sampling frequencies from 8 kHz to 48 kHz, simplifying system design by reducing the need for external audio filters.

Its SPI interface supports single, dual, and quad data lines with clock speeds up to 30 MHz, designed to maximize data throughput and responsiveness. Power management features enable user-selectable modes such as power down, sleep, and standby to optimize power consumption in battery-powered or industrial applications.

The FT810Q-T is RoHS compliant and built to withstand operating temperatures ranging from -40°C to 85°C, making it suitable for demanding industrial and commercial environments. The device includes integrated 1MB graphics RAM, eliminating the need for additional frame buffer memory and simplifying PCB design.

Operates at 60 MHz maximum frequency to ensure high-speed graphics rendering. Supports SPI interface up to 30 MHz clock for fast data rates. Offers compatibility with both resistive and capacitive touch screen technologies.

Provides 1MB integrated graphics RAM for efficient memory management. Audio codec support includes PCM, ADPCM, and μ-Law formats. Wide operating voltage range of 1.8V to 3.3V for compatibility with various power supplies.

Supports operating temperature range suitable for industrial environments. Compact 48-Pin VQFN package facilitates surface mount applications and saves PCB space. Environmentally compliant according to RoHS standards.

This graphics controller is ideal for integration into embedded industrial, consumer electronics, and advanced human-machine interface applications requiring compact and efficient graphical display solutions. Explore similar products in the Graphics Controllers category at EnvMart for enhancements and related components to improve your system's capabilities.
