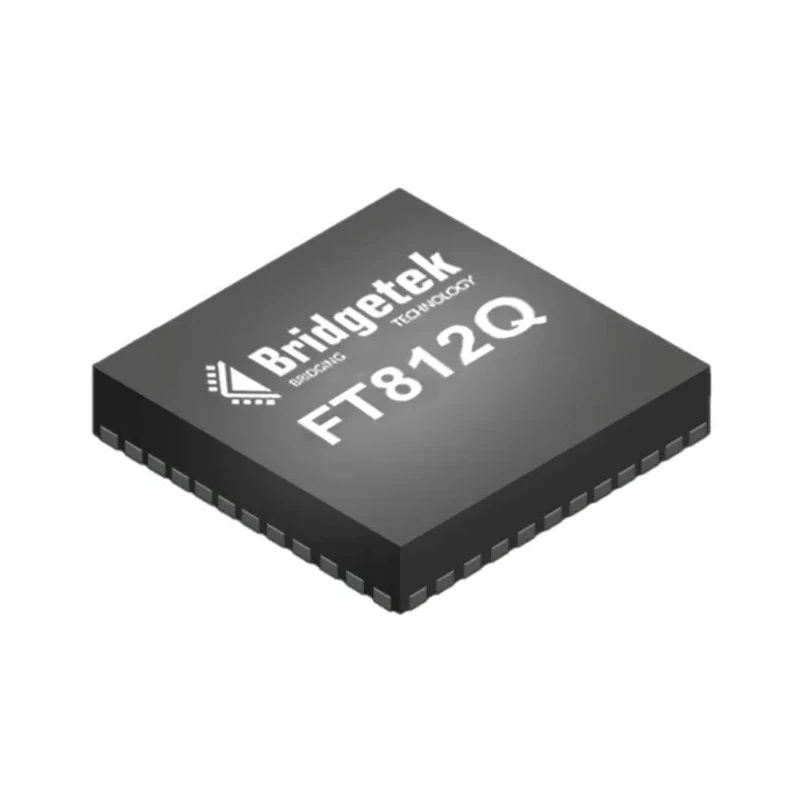

Bridgetek Graphics Controller 60 MHz 800 x 600 pixels SPI/QSPI 56-Pin VQFN FT812Q-T

Bridgetek FT812Q-T Graphics Controller is a high-performance embedded video engine designed for various industrial and commercial electronic applications. Operating at 60 MHz, it supports a maximum display resolution of 800 x 600 pixels (SVGA) with SPI/QSPI interface providing flexible communication options. This graphics controller comes in a compact 56-pin VQFN surface mount package measuring 8 mm in length and 0.85 mm in height.

The FT812Q-T incorporates the latest EVE technology, integrating graphics, audio, and touch screen control. It features 1MB of internal graphics RAM, eliminating the need for external frame buffer memory, thus simplifying system design and reducing cost.

It supports both 4-wire resistive touch screens and 5-touch capacitive touch screens enabling multi-touch interfaces for user applications. The hardware engine recognizes up to 255 touch tags, allowing complex touch interactions with notification capability.

The audio engine within the device supports mono 8-bit linear PCM, 4-bit ADPCM, and μ-Law coding format with sampling frequencies ranging from 8 kHz to 48 kHz. A built-in digital filter reduces system complexity by eliminating the need for external audio filtering components.

The device operates with power supply voltages ranging from 1.8V minimum to 3.3V maximum and supports SPI clock speeds up to 30 MHz. It functions reliably over a wide temperature range from -40°C to +85°C, suitable for demanding environmental conditions.

The FT812Q-T is lead-free and RoHS compliant, manufactured in Taiwan, Province Of China, ensuring compliance with environmental standards.

This graphics controller is well suited for industrial automation, consumer electronics, embedded display applications, and touchscreen interfaces extensively used in laboratory, manufacturing, HVAC, and commercial electronics sectors.

Supports maximum display resolution of 800 x 600 pixels. Operates at a maximum frequency of 60 MHz for efficient graphics processing. Equipped with SPI/QSPI interface compatible with single, dual, or quad mode. Features 56-pin VQFN surface mount package for compact integration.

Supports supply voltages from 1.8V to 3.3V with wide operating temperature range from -40°C to 85°C. Integrated Embedded Video Engine (EVE) technology for graphics, audio, and touch interface. Built-in 1MB graphics RAM without need for external frame buffer.

Supports 4-wire resistive and 5-touch capacitive touchscreens. Audio playback for multiple encoding formats with built-in digital filter. RoHS compliant and Pb-free for environmental safety. Explore our extensive collection of Graphics Controllers and related semiconductor components on EnvMart to find comprehensive solutions for your electronic design needs.
