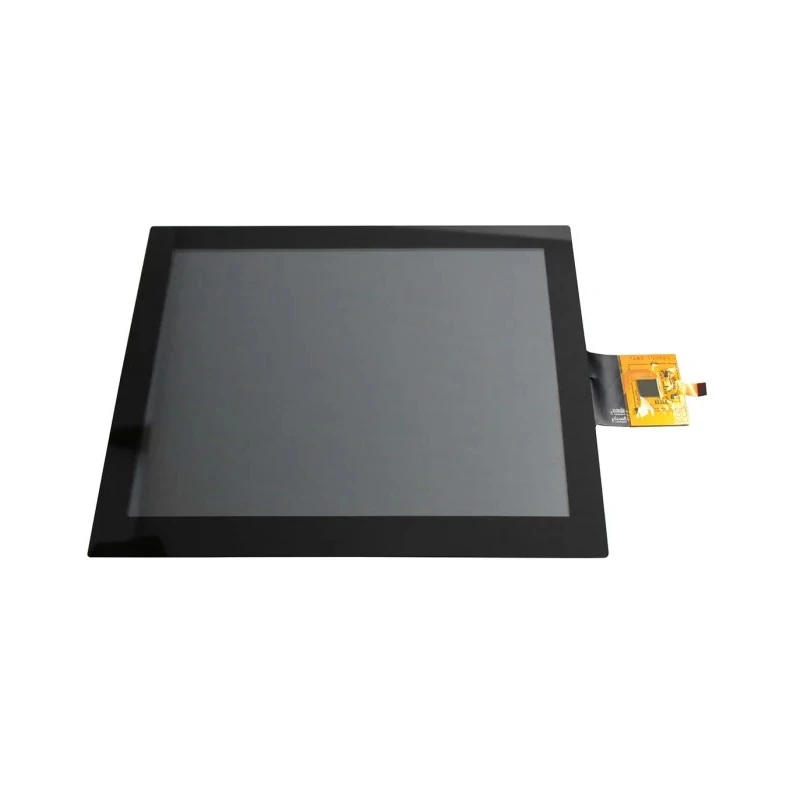

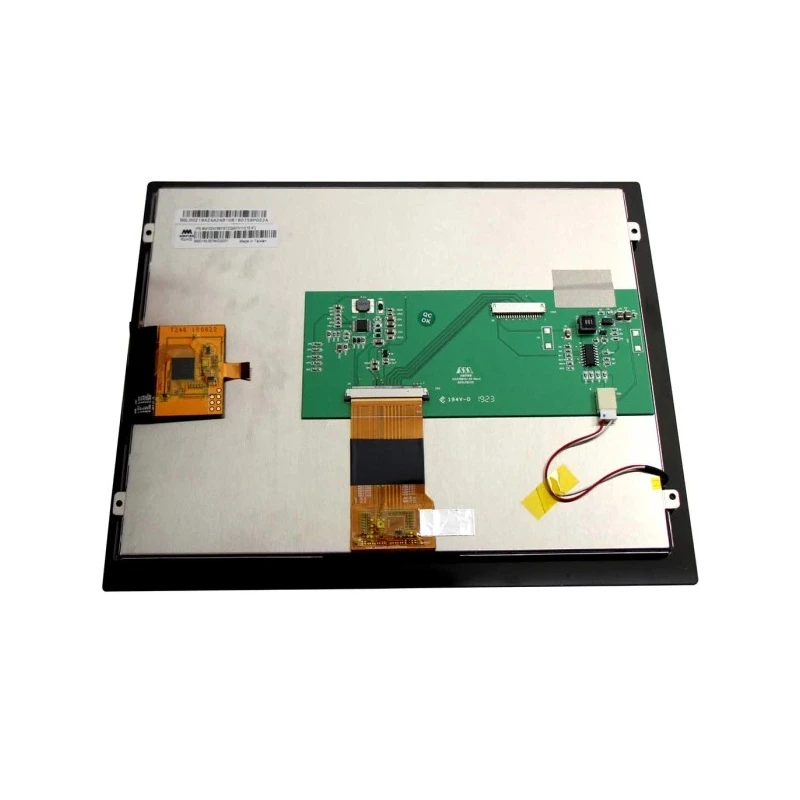

Ampire 10.4 in 1024 x 768 Pixel Capacitive Touch TFT LCD Module AM-1024768YBTZQW-TH1H
Specifications
| Country of Origin | Taiwan |
|---|---|
| Display Type | TFT, LCD |
| Brand | Ampire |
| Current | 480mA |
| Height | 195mm |
| Model | AM-1024768YBTZQW-TH1H |
| Depth | 12.86mm |
| Width | 245mm |
| Maximum Operating Temperature | 70°C |
| Brightness | 510cd/m² |
| Minimum Operating Temperature | -20°C |
| Screen Resolution | 1024 x 768 pixel |
| Touch Screen Type | Capacitive |
| Maximum Supply Voltage | 5.25V |
| Minimum Supply Voltage | 3V |
| Viewing Area Dimensions | 211 x 158 mm |
| Backlight Type | LCD |
| Diagonal Display Size | 10.4in |
| Aspect Ratio | 4:3 |
| Aspect Ratio4 | 3 |
Key Features
- This LCD module supports 16.2 million colors with 24-bit LVDS interface for high-quality display.
- The viewing area is 211 x 158 mm with a brightness of 510 cd/m² for clear visibility.
- The module operates between -20 °C and 70 °C, suitable for various environments.
- It requires a supply voltage between 3 V and 5.25 V and draws 480 mA current.
- Includes a built-in driving circuit and backlight system for reliable performance.
- The dimensions are 245 mm width, 195 mm height and 12.86 mm depth, matching industrial form factors.
- Designed with a normally black LCD type featuring TFT amorphous silicon switching.
- Perfect for use in industrial automation, electronics manufacturing, and embedded systems.
Product Description
The Ampire AM-1024768YBTZQW-TH1H is a high-performance 10.4-inch colour active matrix thin film transistor (TFT) liquid crystal display (LCD) module with a capacitive touch screen, designed for demanding industrial and electronic component applications. The display uses an amorphous silicon TFT as a switching device, ensuring reliable and responsive performance.
This model integrates a TFT LCD panel, a driving circuit, and a backlight system delivering 16.2 million colours using 8-bit digital input for Red, Green, and Blue channels, providing vivid and accurate colour reproduction. It supports a 24-bit LVDS interface for seamless digital connectivity.
The viewing area measures 211 x 158 mm, with an aspect ratio of 4:3 and a screen resolution of 1024 x 768 pixels. The module achieves high visibility with a brightness level of 510 cd/m² and a normally black LCD type suitable for various lighting conditions.
Operating voltage ranges from 3 V up to a maximum of 5.25 V, drawing a current of 480 mA, making it efficient for embedded or portable systems. The operational temperature range of -20°C to 70°C makes it suitable for industrial environments requiring durability and stability.
The mechanical dimensions of the module are 245 mm (width) x 195 mm (height) x 12.86 mm (depth), making it compact and easy to integrate into existing hardware designs.
This touch LCD module is ideal for applications in industrial automation systems, electronic component manufacturing, embedded system displays, and other sectors requiring reliable touchscreen functionality paired with high-resolution display quality.
16.2 million colours with 24-bit LVDS interface. Capacitive touch screen with precision and responsiveness. Wide viewing area of 211 x 158 mm and 4:3 aspect ratio. Brightness of 510 cd/m² for clear visuals. Operating temperature range suitable for diverse industrial environments.
Compact dimensions enable integration into multiple device types. Designed for high durability and reliability in industrial settings. Explore the Electronics Components category at EnvMart for similar high-quality display modules and touch screens to meet your project requirements.
Explore more products in our RF Module category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The screen resolution of this model is 1024 x 768 pixels.
It operates within a temperature range of -20 °C to 70 °C, making it suitable for various industrial environments.
This model features a capacitive touch screen, providing precision and responsiveness.
The dimensions are 245 mm in width, 195 mm in height, and 12.86 mm in depth.
The display achieves a brightness level of 510 cd/m², ensuring clear visuals in various lighting conditions.
It requires a supply voltage between 3 V and 5.25 V.
This module is ideal for applications in industrial automation, electronics manufacturing, and embedded systems.
It supports a 24-bit LVDS interface for seamless digital connectivity.
The viewing area measures 211 x 158 mm, with an aspect ratio of 4:3.
The current draw is 480 mA, making it efficient for embedded or portable systems.
It includes a built-in backlight system that enhances visibility in various conditions.
The country of origin for this product is Taiwan.
