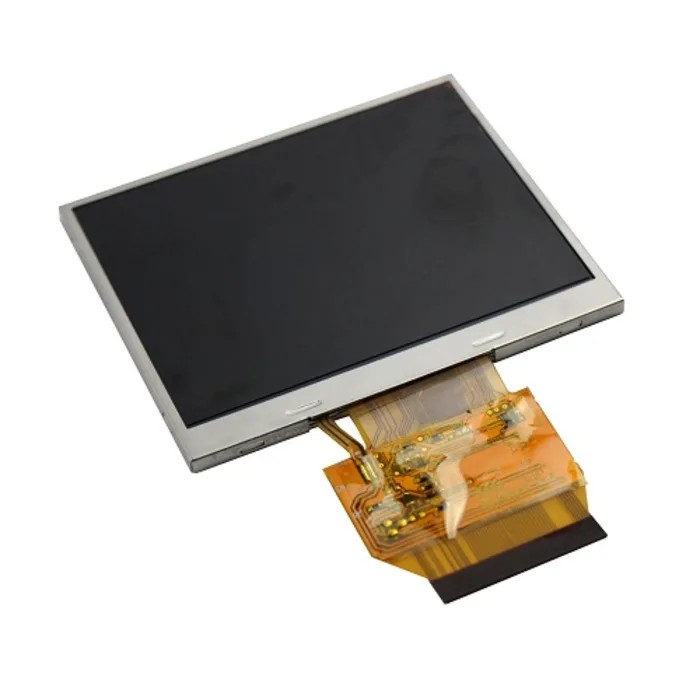

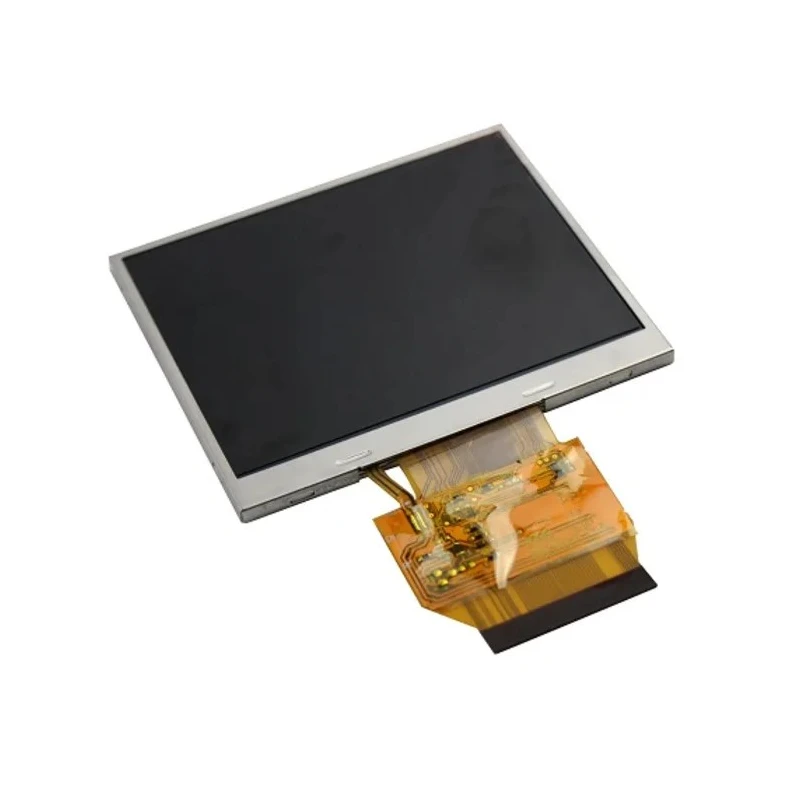

Ampire 3.5 Inch 88.9 mm TFT LCD Display 320 x 240 Pixel, LED Backlight, 3.3V Power Supply AM-320240LQTZQW-31H
Specifications
| Country of Origin | India |
|---|---|
| Display Type | TFT |
| Brand | Ampire |
| Current | 20mA |
| Height | 63.4mm |
| Model | AM-320240LQTZQW-31H |
| Depth | 3.15mm |
| Width | 76.4mm |
| Maximum Operating Temperature | 70°C |
| Brightness | 400cd/m² |
| Minimum Operating Temperature | -20°C |
| Interface Type | 24 Bit |
| Screen Resolution | 320 x 240 pixel |
| Standards/Approvals | RoHS |
| Maximum Supply Voltage | 4V |
| Minimum Supply Voltage | 3.3V |
| Viewing Area Dimensions | 70.08 x 52.56 mm |
| Backlight Type | LED |
| Diagonal Display Size | 88.9mm |
| Aspect Ratio | 4:3 |
| Aspect Ratio4 | 3 |
Key Features
- The display features a 24-bit RGB interface for true color rendering.
- LED backlight provides brightness up to 400 cd/m² for clear visibility.
- Operating voltage ranges from 3.3V to 4V ensuring low power consumption.
- The module supports a minimum operating temperature of -20°C and maximum of 70°C.
- It is a transmissive TFT LCD type with a thickness of 3.15 mm and dimensions 63.4 x 76.4 mm (HxW).
- The display module is RoHS compliant, ensuring environmental safety.
Product Description
The Ampire AM-320240LQTZQW-31H is a high-quality 3.5 inch (88.9 mm diagonal) TFT LCD Display module designed for electronic applications requiring vivid color and high resolution. It presents a resolution of 320 x 240 pixels with a 24-bit RGB interface that delivers rich color depth, making it suitable for complex graphical user interfaces.
This module integrates a built-in 3.3V Power Supply circuit and utilizes an LED backlight, granting it a brightness of 400 cd/m², which supports clear visibility even in varying light conditions. The viewing area of 70.08 x 52.56 mm with a 4:3 aspect ratio provides a balanced visual aspect ideal for instrumentation and industrial displays.
With operating voltage between 3.3V and 4V and current consumption of 20mA, it ensures energy-efficient operation. Moreover, the unit is robustly designed to operate over a wide temperature range from -20°C to 70°C, making it suitable for diverse industrial environments. The compact form factor with dimensions of 63.4 mm height, 76.4 mm width, and 3.15 mm depth allows easy integration into electronic systems.
This TFT LCD display is RoHS certified, underscoring its compliance with environmental regulations and quality standards. The module is ideal for use in industrial automation systems, embedded electronic projects, instrumentation panels, and other commercial electronic display needs.
The display features a 24-bit RGB interface for vibrant color representation. The viewing area measures 70.08 x 52.56 mm with an aspect ratio of 4:3. LED backlight technology enhances brightness and visibility. Operates within a voltage range of 3.3V to 4V with low current draw.
Wide operating temperature range from -20°C to 70°C for harsh environments. Compact dimensions of 63.4mm height, 76.4mm width, and 3.15mm thickness. RoHS compliant, ensuring environmental safety standards.
This display module, AM-320240LQTZQW-31H, is suitable for industrial, laboratory, manufacturing, and embedded system applications requiring reliable and clear visual output. Browse further Ampire display modules on EnvMart for comprehensive solutions in electronic display technology.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The display has a resolution of 320 x 240 pixels, providing a clear visual output suitable for various applications.
It operates within a voltage range of 3.3V to 4V, ensuring compatibility with various electronic systems.
The display features a brightness of 400 cd/m², enhancing visibility in different lighting conditions.
This model can operate in temperatures ranging from -20°C to 70°C, making it suitable for diverse industrial environments.
The display has dimensions of 63.4 mm in height, 76.4 mm in width, and a thickness of 3.15 mm.
It utilizes an LED backlight, which contributes to its brightness and visibility.
The viewing area has an aspect ratio of 4:3, providing a balanced visual experience.
The display features a 24-bit RGB interface, allowing for true color rendering.
Yes, this model is RoHS compliant, ensuring it meets environmental safety standards.
The display consumes a current of 20mA, contributing to its energy-efficient operation.
It is suitable for use in industrial automation systems, embedded electronic projects, and instrumentation panels.
The diagonal size of the display is 88.9 mm, making it compact yet effective for various applications.
