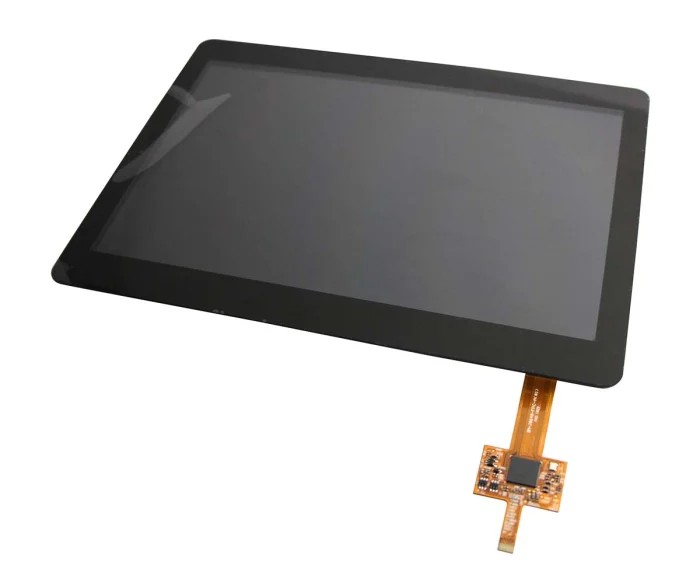

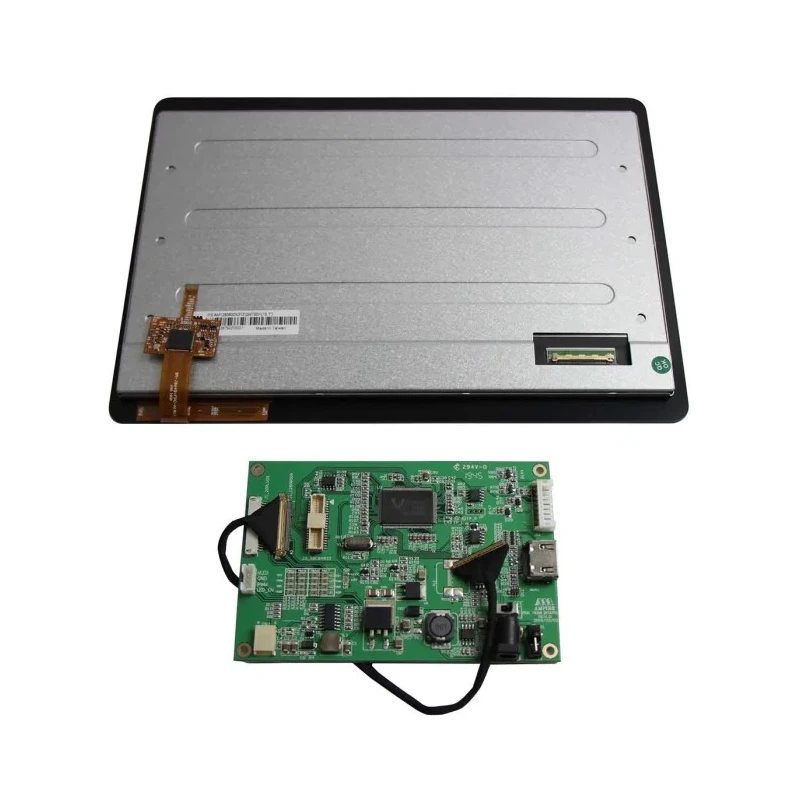

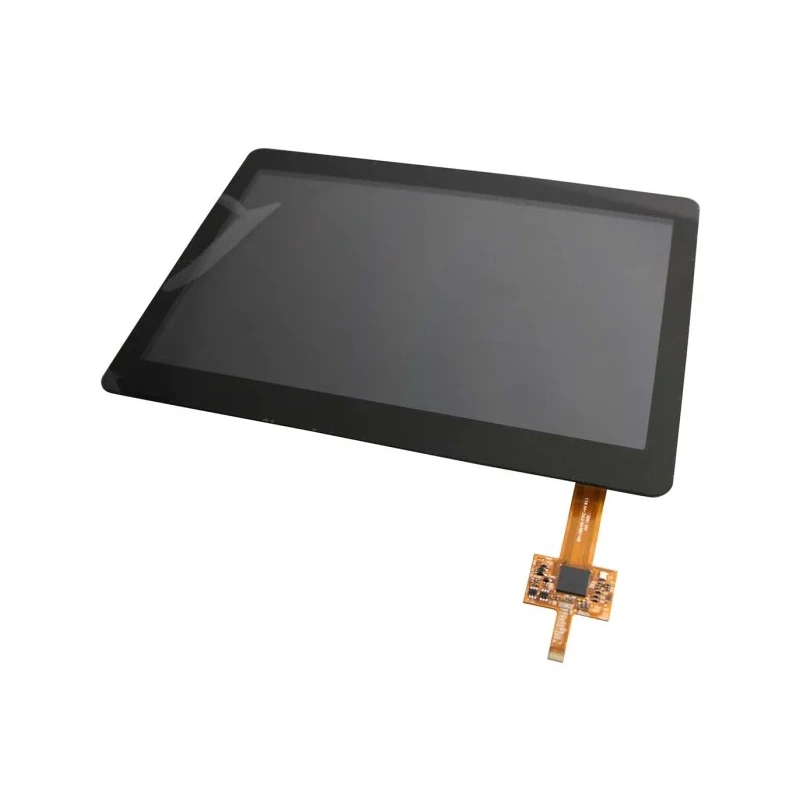

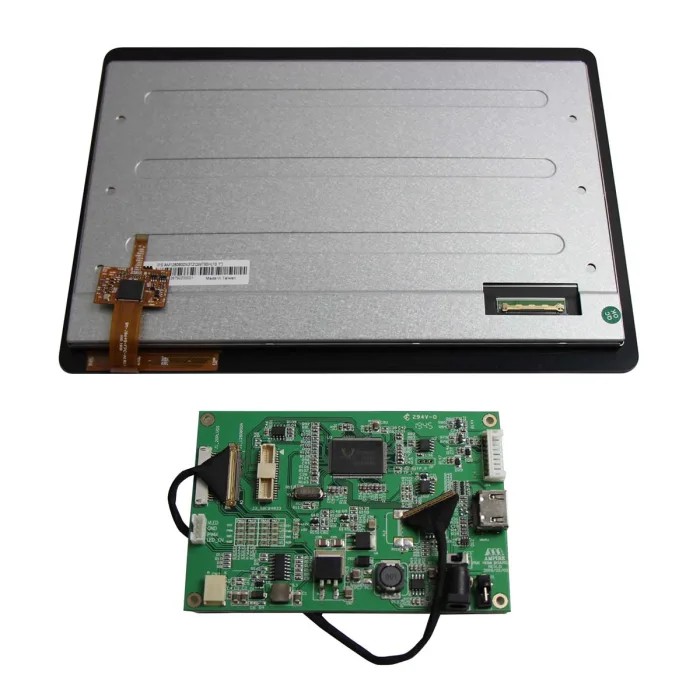

Ampire LCD Module Touch Screen 10.1 in 1280 x 800 pixel, Capacitive Touch, LVDS Interface AM-1280800N3TZQW-T95H
Specifications
| Country of Origin | Taiwan |
|---|---|
| Display Type | TFT, LCD |
| Brand | Ampire |
| Current | 295mA |
| Height | 135.6mm |
| Model | AM-1280800N3TZQW-T95H |
| Width | 216.96mm |
| Maximum Operating Temperature | 70°C |
| Brightness | 297.5cd/m² |
| Minimum Operating Temperature | -20°C |
| Interface Type | LVDS |
| Screen Resolution | 1280 x 800 pixel |
| Standards/Approvals | RoHS |
| Touch Screen Type | Capacitive |
| Maximum Supply Voltage | 3.6V |
| Minimum Supply Voltage | 3V |
| Viewing Area Dimensions | 217 x 136 mm |
| Backlight Type | LCD |
| Diagonal Display Size | 10.1in |
| Aspect Ratio | 16:10 |
| Aspect Ratio16 | 10 |
| 16 | 10 |
Key Features
- The module features a TFT LCD panel with amorphous silicon thin film transistor technology.
- It supports LVDS interface for high-quality video signal transmission.
- Brightness level is rated at 297.5 cd/m² for clear visibility.
- It operates on a supply voltage range of 3V to 3.6V.
- The module supports a current consumption of 295 mA.
- The capacitive touch screen uses projective capacitive technology (OGS) for accurate multi-touch detection.
- It has a wide operating temperature range from -20°C to 70°C, suitable for various environments.
- The backlight is LCD type ensuring even illumination.
Product Description
The Ampire AM-1280800N3TZQW-T95H is a 10.1-inch LCD Module with a capacitive touch screen, designed with a TFT LCD panel using amorphous silicon thin film transistor technology. Featuring a WXGA resolution of 1280 x 800 pixels, this display module offers crisp image quality and a 16:10 aspect ratio ideal for electronic components and visualization applications.
The unit operates via an LVDS interface, supporting a supply voltage range from 3V to 3.6V, with a nominal current consumption of 295 mA. The backlight system utilizes an LCD type, providing a brightness of 297.5 cd/m² for enhanced visibility under diverse lighting conditions.
The viewing area dimensions of 217 x 136 mm deliver ample display space, while the capacitive projective touch screen technology ensures precise multi-touch input, suitable for modern interactive devices. The module is engineered to function reliably in temperature ranges from -20°C to 70°C, making it appropriate for industrial, commercial, and embedded system applications.
Compliance with RoHS standards guarantees the display meets environmental and safety regulations. The product is manufactured in Taiwan, Province Of China, ensuring quality and durability.
This Ampire LCD Module is widely used in electronic devices, industrial instruments, and embedded display systems requiring a robust, responsive touch interface with high-definition visuals.
The module features a TFT LCD panel with amorphous silicon thin film transistor technology. It supports LVDS interface for high-quality video signal transmission. The viewing area measures 217 x 136 mm with an aspect ratio of 16:10.
Brightness level is rated at 297.5 cd/m² for clear visibility. It operates on a supply voltage range of 3V to 3.6V. The module supports a current consumption of 295 mA. The capacitive touch screen uses projective capacitive technology (OGS) for accurate multi-touch detection.
It has a wide operating temperature range from -20°C to 70°C, suitable for various environments. The backlight is LCD type ensuring even illumination. The module complies with RoHS standards and is manufactured in Taiwan, Province Of China.
For users seeking advanced LCD modules with touch screen functionalities, the Ampire AM-1280800N3TZQW-T95H represents a reliable choice. Explore more modules and components in the LCD Colour Displays category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The resolution of this LCD module is 1280 x 800 pixels, providing clear and detailed image quality.
It utilizes projective capacitive touch technology, allowing for accurate multi-touch detection.
The brightness level is rated at 297.5 cd/m², ensuring visibility in various lighting conditions.
The module operates within a supply voltage range of 3V to 3.6V.
The viewing area dimensions are 217 x 136 mm, providing ample display space for various applications.
The maximum operating temperature is 70°C, making it suitable for a range of environments.
It supports an LVDS interface for high-quality video signal transmission.
The current consumption is rated at 295 mA during operation.
The aspect ratio of the display is 16:10, which is ideal for various visualization applications.
The backlight type is LCD, ensuring even illumination across the display.
This module complies with RoHS standards, ensuring it meets environmental and safety regulations.
It is manufactured in Taiwan, Province Of China, ensuring quality in production.
