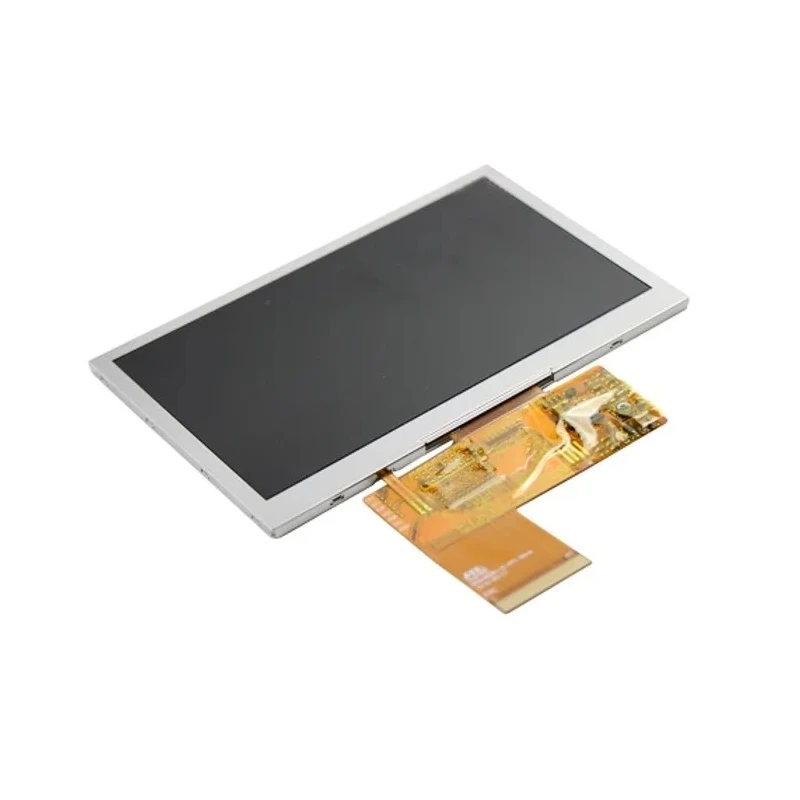

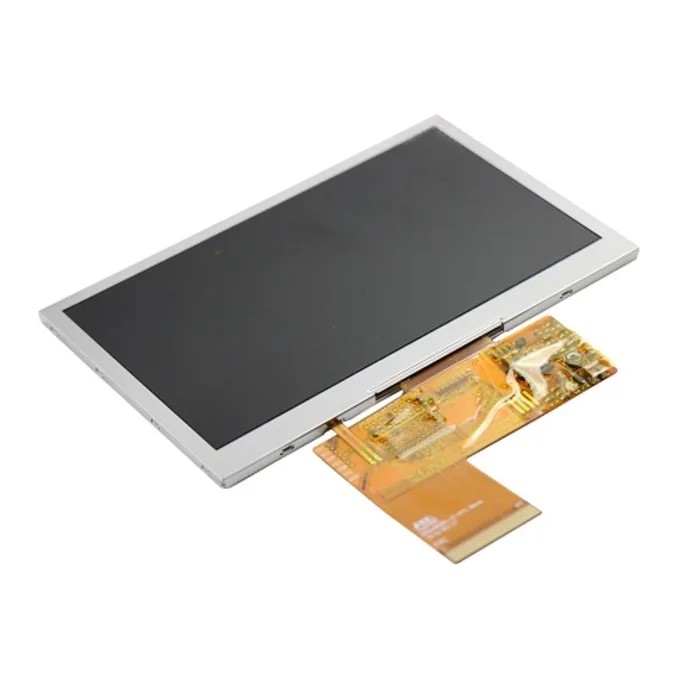

Ampire TFT LCD Display 4.3 inch 800 x 480 pixel RGB Interface LED Backlight AM-800480BDTZQW-01H
Specifications
| Country of Origin | India |
|---|---|
| Display Type | TFT |
| Brand | Ampire |
| Height | 67mm |
| Model | AM-800480BDTZQW-01H |
| Depth | 2.8mm |
| Width | 105.3mm |
| Series | AM-8004 |
| Maximum Operating Temperature | 85°C |
| Brightness | 500cd/m² |
| Minimum Operating Temperature | -30°C |
| Interface Type | RGB |
| Screen Resolution | 800 x 480 pixel |
| Standards/Approvals | RoHS |
| Maximum Supply Voltage | 5V |
| Minimum Supply Voltage | 3.3V |
| Viewing Area Dimensions | 95.04 x 53.9 mm |
| Backlight Type | LED |
| Diagonal Display Size | 4.3in |
| Contrast Ratio | 700:1 |
| Aspect Ratio | 16:9 |
| Aspect Ratio16 | 9 |
| 16 | 9 |
| Contrast Ratio700 | 1 |
| 700 | 1 |
| 4.3 inch (16 | 9 diagonal) configuration |
Key Features
- Screen resolution of 800 x 480 pixels for sharp image display.
- LED backlighting ensures 500 cd/m² brightness for clear visibility.
- Wide operating temperature range from -30°C to 85°C suitable for various environments.
- Integrated driver circuit and 3.3V built-in power supply circuit.
- Compact dimensions with viewing area of 95.04 x 53.9 mm and module size 105.3 x 67 x 2.8 mm.
- Compliant with RoHS standards ensuring environmental safety.
Product Description
The Ampire AM-800480BDTZQW-01H is a high-quality 4.3 inch TFT LCD Display designed for various industrial and electronic applications. Featuring a 16:9 aspect ratio and an 800 x 480 pixel resolution, this display offers sharp, vibrant images. Its LED backlight provides a brightness level of 500 cd/m², making it highly visible even in brightly lit environments.
Constructed with an amorphous silicon TFT-LCD panel, the display includes an integrated driver circuit and a built-in 3.3V power supply, simplifying its integration into systems. The compact physical size with a width of 105.3 mm, height of 67 mm, and depth of 2.8 mm suits space-constrained installations.
This module operates reliably within a wide temperature range of -30°C up to 85°C, suitable for both indoor and light outdoor industrial or laboratory uses. The contrast ratio of 700:1 enhances image clarity and contrast. It supports RGB interface signals and includes a stainless steel bezel providing durability.
Its compliance with RoHS environmental safety standards makes it a responsible choice for manufacturers concerned with hazardous substances. The display is ideal for use in electronic components, industrial automation systems, instrumentation displays, and embedded system projects requiring high-quality visual output.
4.3 inch diagonal TFT LCD with 16:9 aspect ratio. Screen resolution of 800 x 480 pixels for detailed graphics. LED backlight providing 500 cd/m² brightness. Integrated driver and 3.3V power supply circuit. Wide operating temperature range of -30°C to 85°C.
Compact module dimensions: 105.3 x 67 x 2.8 mm. 700:1 contrast ratio for enhanced image quality. Stainless steel bezel for robustness. RoHS compliant. Browse the EnvMart LCD Colour Displays category for more high-performance display modules suitable for a variety of industrial, laboratory, and manufacturing applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The display has a resolution of 800 x 480 pixels, providing sharp image quality.
It features an LED backlight that provides a brightness level of 500 cd/m², ensuring visibility in various lighting conditions.
This model operates reliably within a temperature range of -30°C to 85°C, making it suitable for diverse environments.
The module has dimensions of 105.3 mm in width, 67 mm in height, and 2.8 mm in depth.
It supports an RGB interface, allowing for easy integration with compatible systems.
The display has a 16:9 aspect ratio, which is standard for widescreen formats.
The contrast ratio is 700:1, enhancing the clarity and vibrancy of images displayed.
Yes, it includes an integrated driver circuit and a built-in 3.3V power supply circuit for ease of use.
Yes, it is compliant with RoHS standards, ensuring it meets environmental safety requirements.
The display is constructed with an amorphous silicon TFT-LCD panel and features a stainless steel bezel for added durability.
It is suitable for various applications including electronic components, industrial automation systems, and instrumentation displays.
The Ampire TFT LCD Display is manufactured in India.
