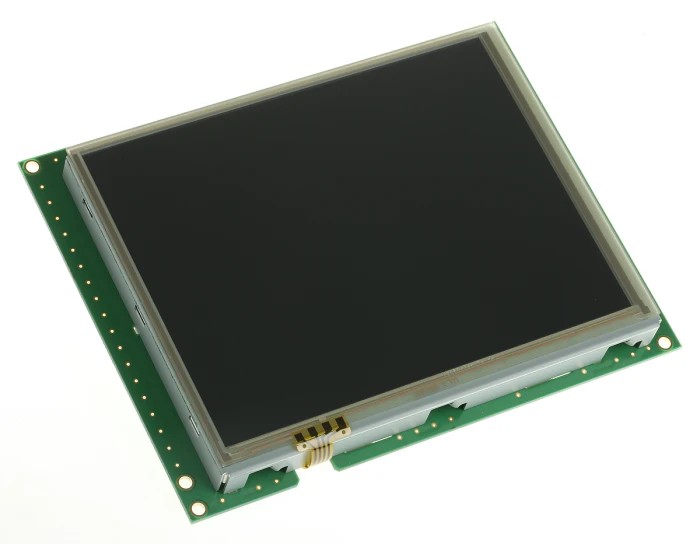

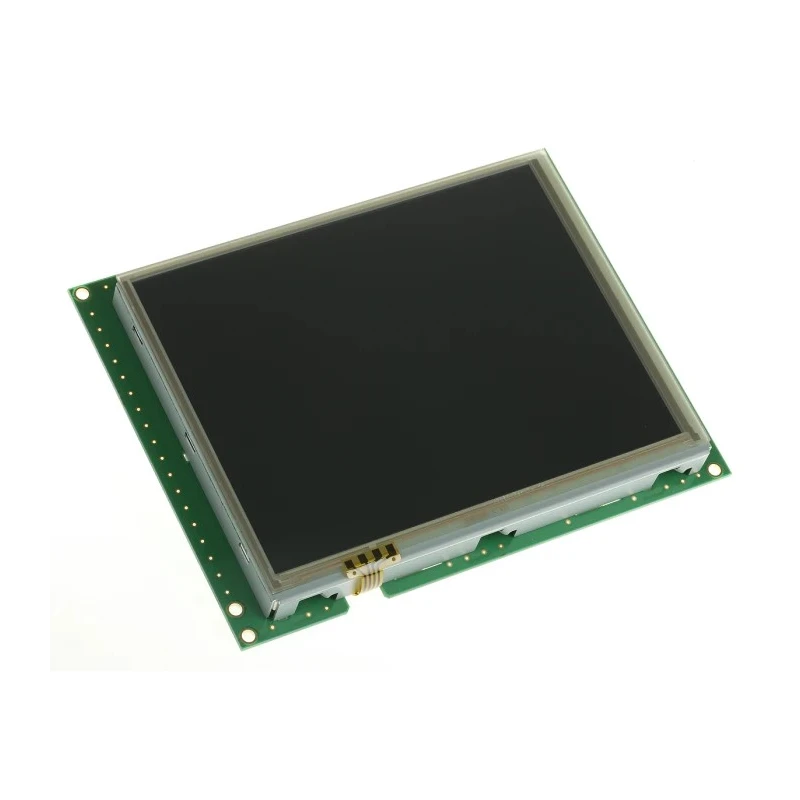

Ampire LCD Colour Display Touch Screen 5.7 in 640 x 480 pixel TFT LED Backlight Resistive AM640480G2TNQW-TU0H

Ampire AM640480G2TNQW-TU0H is a high-quality LCD colour display touch screen designed with a 5.7 inch diagonal TFT screen and 640 x 480 pixel resolution, suitable for advanced electronic applications requiring vivid color representation and touch input functionality.

This display incorporates a resistive touch screen type, allowing precise interaction using a finger or stylus. The white LED backlight enhances visibility with a brightness rating of 500 cd/m², making it effective in various lighting conditions. The 4:3 aspect ratio along with a contrast ratio of 250:1 ensures clear and sharp images.

The device interfaces via CMOS and UART protocols and supports additional connectivity through RS-232 and USB, providing versatility in integration with microcontrollers and embedded systems. It includes an on-board processor and a 128 MB memory, enabling efficient image and font storage, reducing the load on host CPUs and streamlining development time.

Operational temperature ranges from -20°C to +70°C, making it suitable for industrial, laboratory, and commercial environments where temperature resilience is necessary. Dimensionally, the display measures 109.5 mm in height, 22 mm in width, and 87.12 mm in depth, with a viewing area of 87 x 116 mm.

This unit adheres to RoHS standards, ensuring it is environmentally friendly and compliant with current regulations. Equipped with CMOS and UART interface types for versatile communication. Features a white LED backlight providing 500 cd/m² brightness for clear viewing.

Viewing area measures 87 x 116 mm with a 4:3 aspect ratio. Operates between -20°C to 70°C ensuring durability in diverse environments. Compact dimensions: height 109.5 mm, width 22 mm, depth 87.12 mm. Contrast ratio of 250:1 enhances image clarity and color differentiation.

Includes on-board processing and 128 MB memory to store images and fonts efficiently. No external controller board required, simplifying system integration. Compatible with RS-232 and USB interfaces alongside UART for flexible connectivity.

Compliance with RoHS standards ensures environmental safety.

This LCD colour display is ideal for electronics and industrial applications such as instrumentation displays, embedded system interfaces, and control panels where reliable visual output and touch input are critical. Enhance your product line with Ampire’s robust and feature-rich touch displays available at EnvMart.
