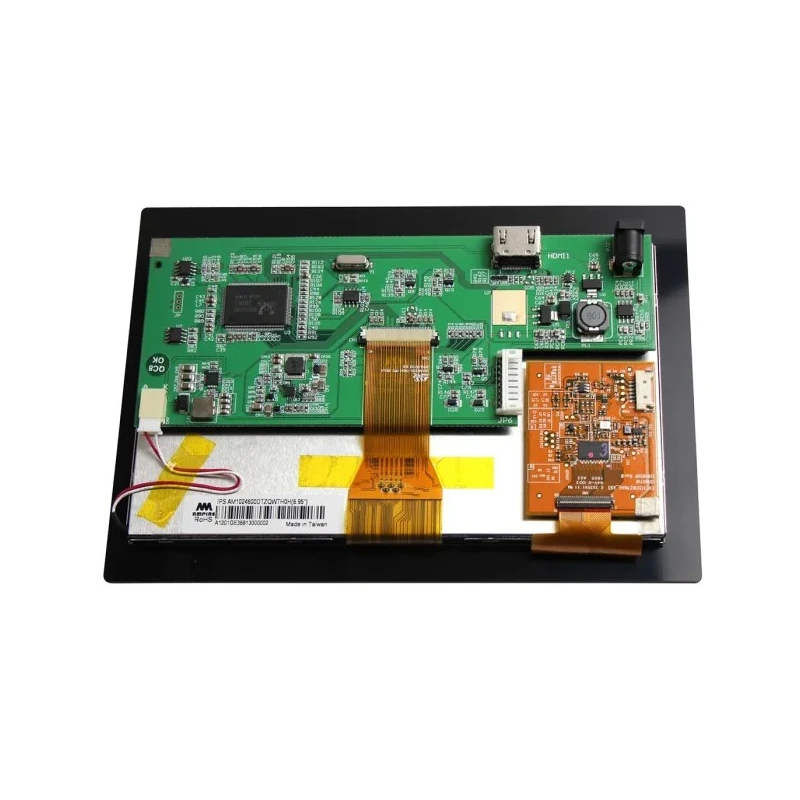

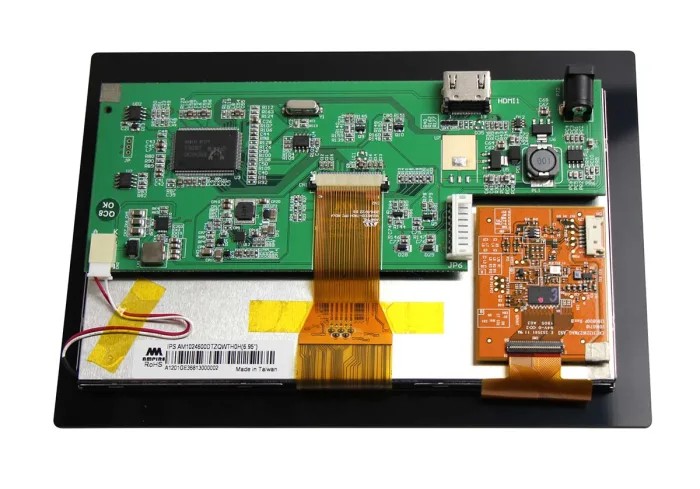

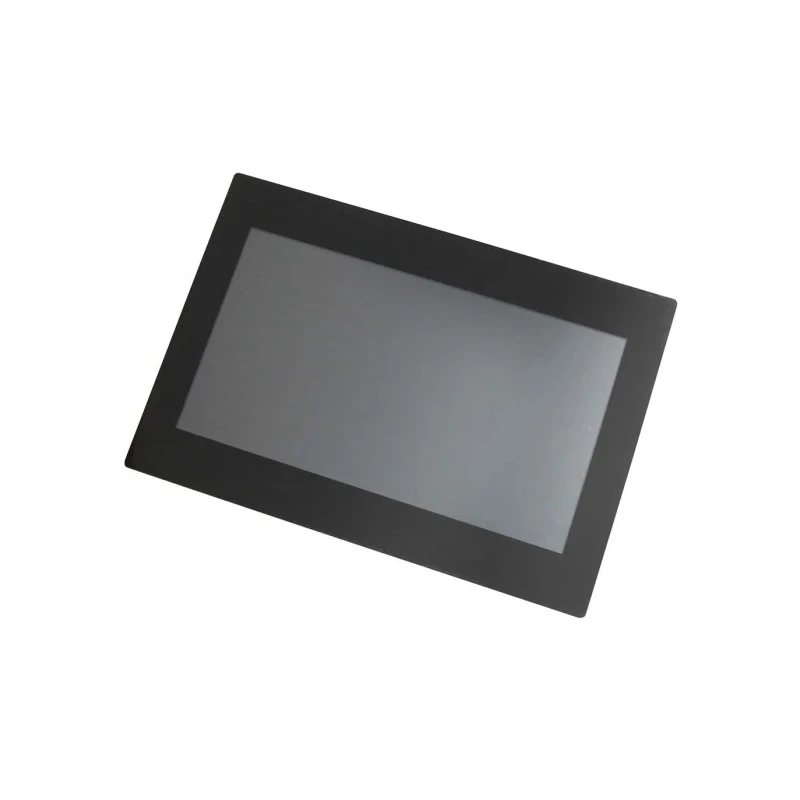

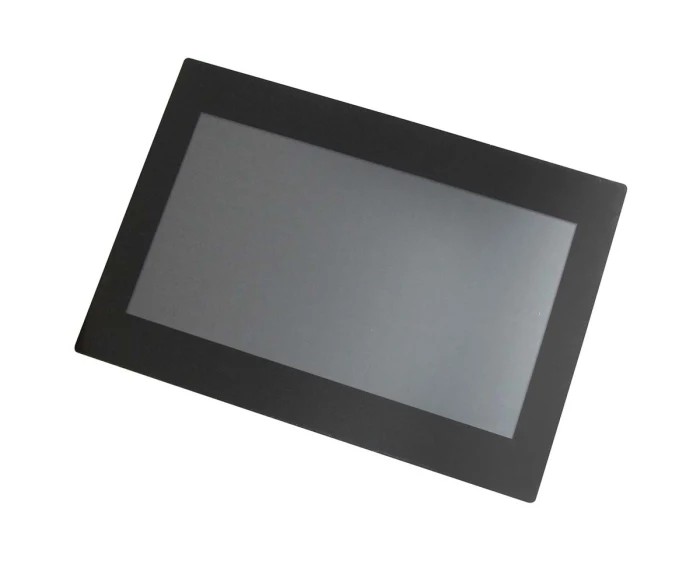

Ampire 7 inch TFT LCD Module Touch Screen USB Interface 1024 x 600 Pixel AM-1024600DTZQW-TH0H

Ampire AM-1024600DTZQW-TH0H is a premium 7 inch amorphous TFT LCD module featuring a capacitive touch screen and USB interface, designed for precision display applications in industrial, laboratory, manufacturing, and electronic control systems.

This LCD module provides a high resolution of 1024 x 600 pixels on a TFT LCD panel with white LED backlighting delivering a brightness of 425 cd/m² and a contrast ratio of 800:1. It renders 16.7 million colors with 8-bit digital RGB color components ensuring clear, vibrant, and accurate color reproduction for detailed visualization.

The module operates over a wide temperature range from -20°C to 70°C, making it suitable for harsh or variable environments. It requires a stable power supply voltage between 11.5V and 12.5V and supports a current draw of 1A. The compact form factor with dimensions 184 mm (W) x 128 mm (H) x 23.75 mm (D) allows easy installation in embedded electronic systems.

The capacitive touch screen offers responsive and precise touch control, ideal for user interfaces or interactive displays. This touch screen LCD module is compliant with HDMI 1.4a standards, expanding its connectivity and compatibility options.

Its normally black LCD type enhances contrast, while white LED backlight ensures energy efficiency and long service life. This product is made in Taiwan (Province Of China) and does not carry specific certifications or standards approvals.

Features a capacitive touch screen for responsive and accurate user interaction. Backlight uses white LED technology ensuring bright and clear views. Compatible with USB interface for easy connectivity and integration. Operates reliably between -20°C to 70°C for diverse environmental conditions.

Power supply voltage range is from 11.5V to 12.5V to ensure stable operation. Offers high contrast ratio of 800:1 for vivid color differentiation. Viewing area dimensions measure 154 by 86 mm with a 7 inch diagonal screen size.

Display supports 16.7 million colors with 8-bit digital RGB color depth for rich visuals. Constructed with TFT LCD technology for normally black LCD type display. Compact dimensions of 184 mm width, 128 mm height and 23.75 mm depth facilitate integration into various devices.

This LCD module is ideal for industrial automation, embedded systems, electronic instrumentation, and display applications requiring high resolution and reliable touch interface. Explore more display modules and electronic components at EnvMart for comprehensive solutions in electronic and industrial display technology.
