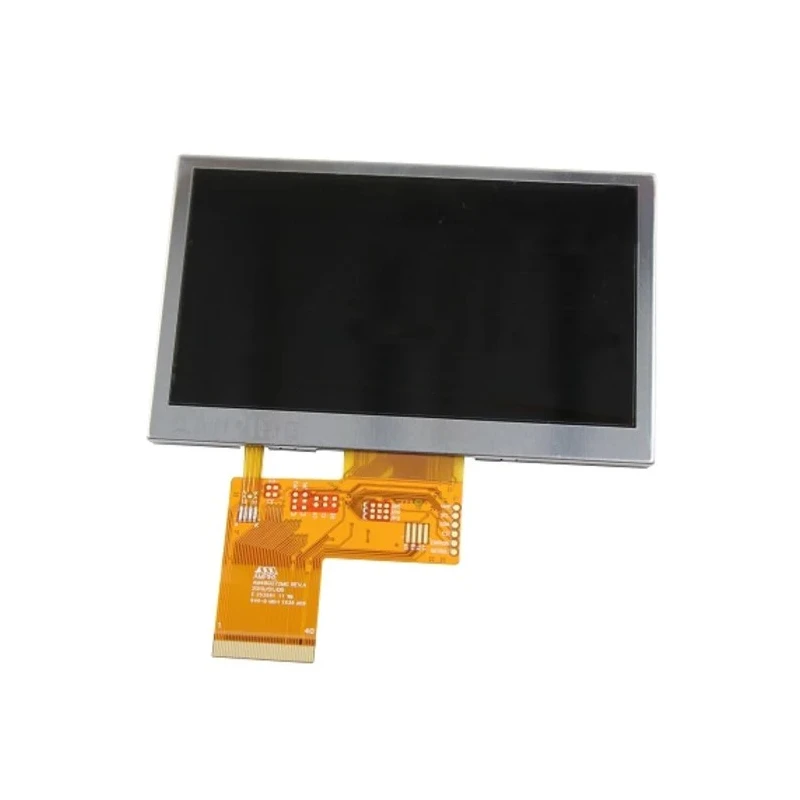

Ampire TFT LCD Display 4.3 in 480 x 272 Pixel 24 Bit Interface LED Backlight AM-480272MGTZQW-00H

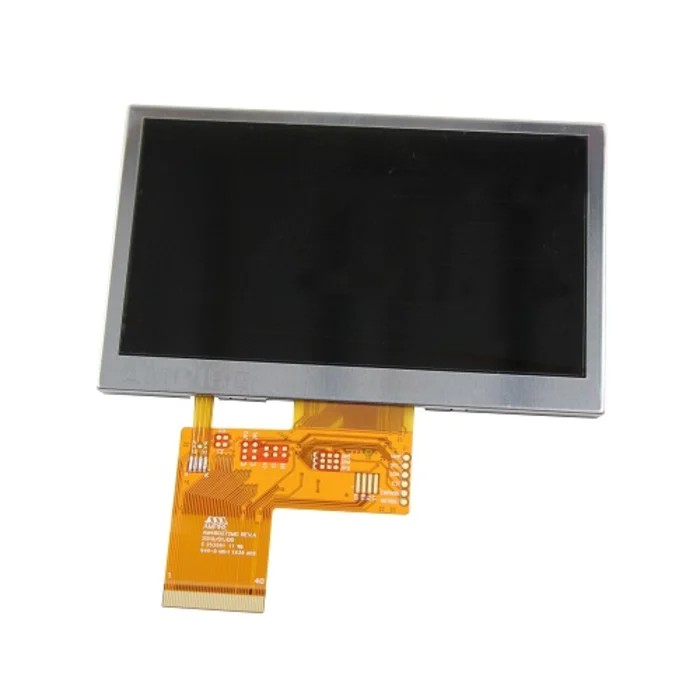

Ampire AM-480272MGTZQW-00H is a 4.3 inch TFT LCD Display module featuring a high resolution of 480 x 272 pixels, designed for electronic component applications requiring rich color and clarity. The module incorporates an IPS transmissive TFT LCD panel with an LED backlight to produce vivid images with a brightness level of 500 cd/m².

This display offers a 24 Bit TTL RGB interface, enabling seamless connection with various control systems and ensuring high color depth with 16.7 million displayable colors. The viewing area dimensions of 95.04 x 53.9 mm and the device dimensions of 105.5 x 67.2 x 2.9 mm make it compact for integration in embedded systems.

Engineered for versatility, the module includes a built-in power supply circuit operating at 3.3V and supports operating voltages from 3.3V to 4V with a current consumption of 32mA. It is designed to operate in ambient temperatures from -20°C up to +70°C, suitable for industrial and commercial environments.

This TFT LCD display module is non-touchscreen but provides large viewing angles due to its IPS technology, supporting viewing from all directions without color shift or distortion. The aspect ratio is 16:9, common for multimedia and user interface displays.

The module features an LED backlight for enhanced visibility. It uses a 24 Bit TTL RGB interface for data transmission. Supports a viewing area of 95.04 x 53.9 mm. Operating voltage ranges from 3.3V to 4V with built-in power supply.

Brightness of 500 cd/m² for clear visuals in various lighting conditions. Operates over a temperature range of -20°C to +70°C. Compact dimensions: 105.5 mm width, 67.2 mm height, and 2.9 mm depth. Complies with no specified standards or approvals.

This display module suits applications in industrial control systems, embedded device user interfaces, instrumentation panels, and other electronic products requiring a compact, bright, and high-resolution color display. It is ideal for environments requiring wide temperature tolerance and reliable built-in power supply for easy integration.
