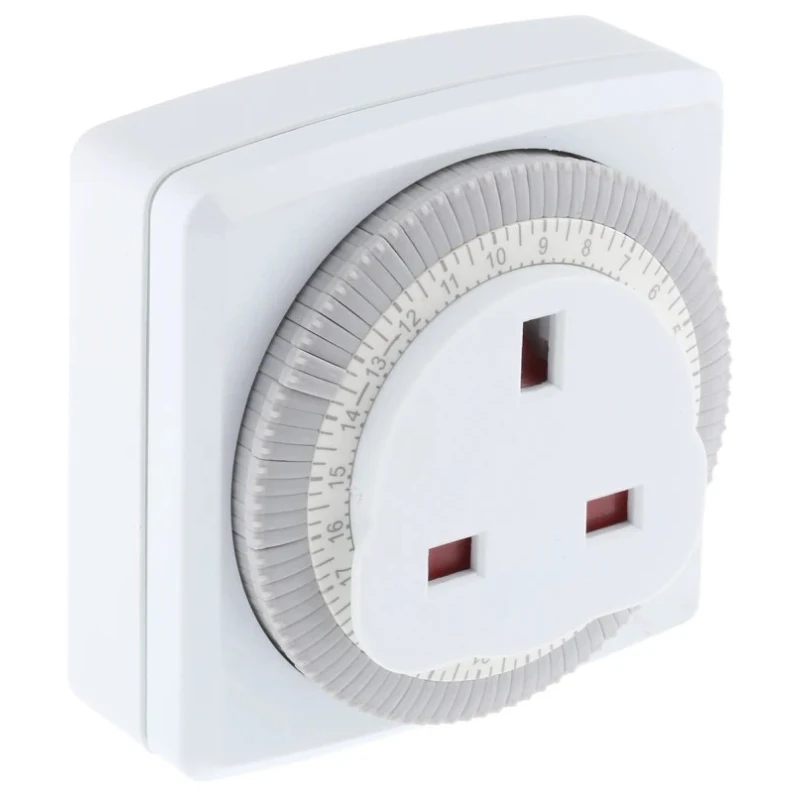

Timeguard 230V AC SPDT Digital Timer Switch TG24

Timeguard TG24 is a high-quality digital timer switch manufactured for 230V AC electrical systems, featuring an SPDT (single pole double throw) contact configuration. It facilitates automatic switching of appliances in domestic and commercial environments, providing reliable time control with up to 96 on and off programs per 24-hour cycle.

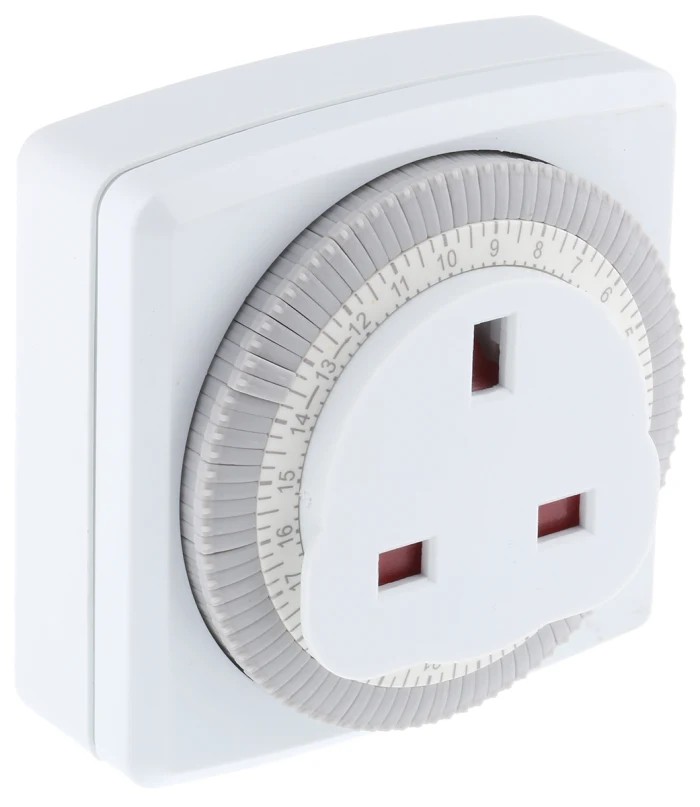

The timer’s captive segment dial allows precise and simple setting of timed intervals, starting with a minimal 15-minute segment that can be increased in 15-minute increments. It is designed to handle loads up to 13 amps (equivalent to 3kW) and lamp loads up to 400 watts, making it suitable for incandescent filament lamps and a variety of household or light industrial electrical devices.

Operation is efficient and user-friendly, including a permanent ‘on’ override for manual operation when needed. The device is compact with dimensions 76 mm in height and 67.5 mm in depth, and is engineered to operate reliably within temperature ranges from 0 °C to 40 °C.

Manufactured in China, the TG24 timer switch does not hold specific approvals or certifications but serves as a robust solution for time-based electrical control in automation and process control settings.

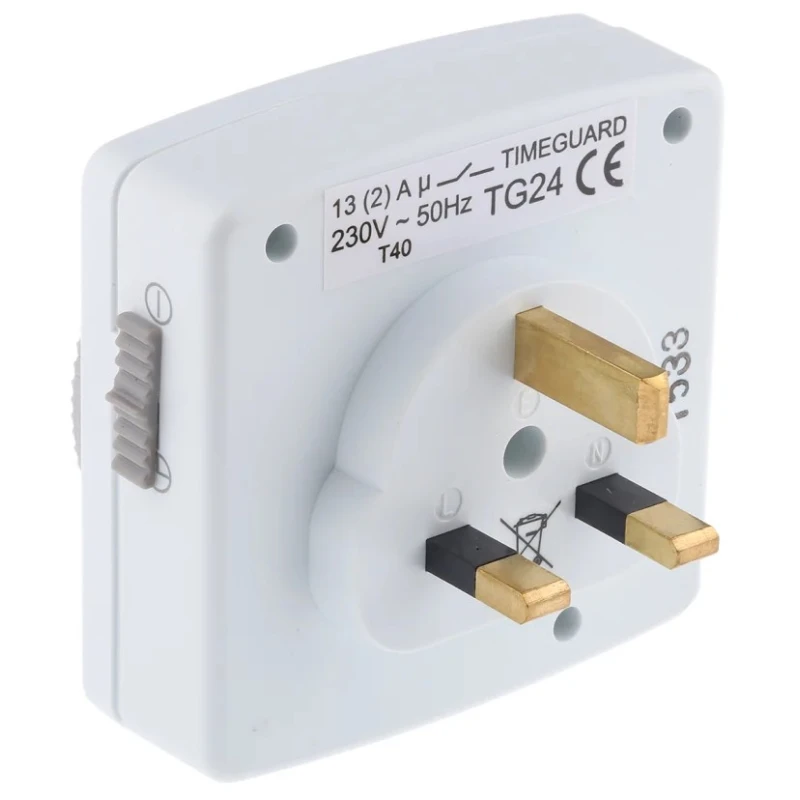

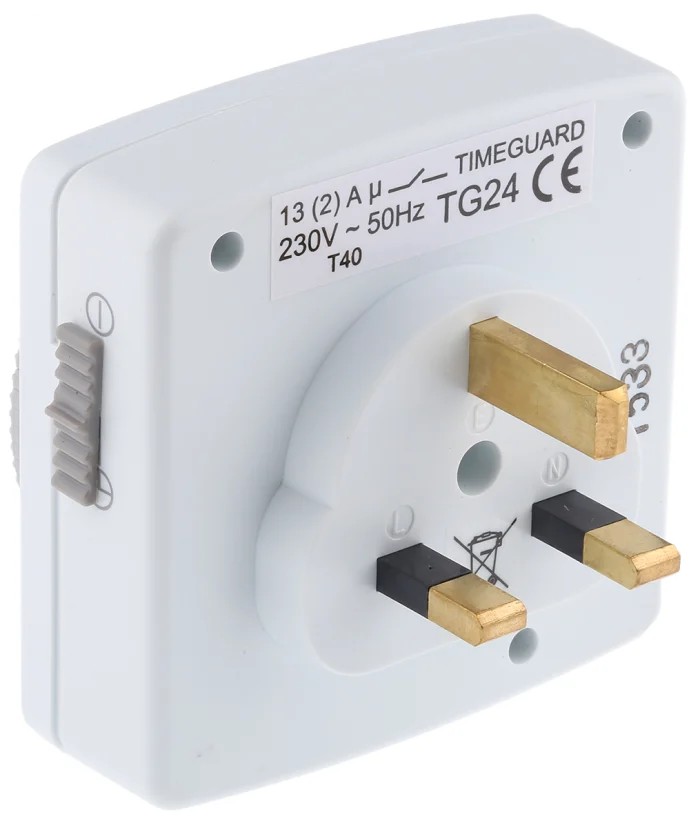

This timer switch controls appliances at preset times automatically with up to 96 programs daily. It features a plug-in 3-pin BS 1363 type connection ensuring easy installation. The device supports a permanent override for manual control of the switched appliance.

Designed for use with domestic appliances and filament lighting load control up to 400 watts. Operates reliably within 0 °C to 40 °C ambient temperature range.

This product is ideal for use in electrical automation, process control, and domestic timer switching applications, fulfilling the needs of residential and light commercial installations.
