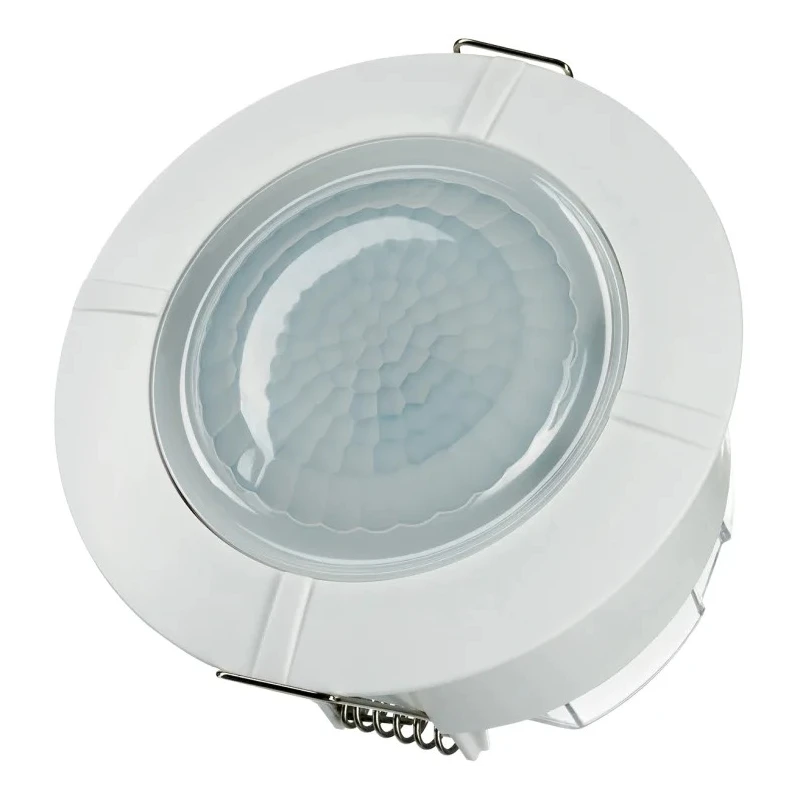

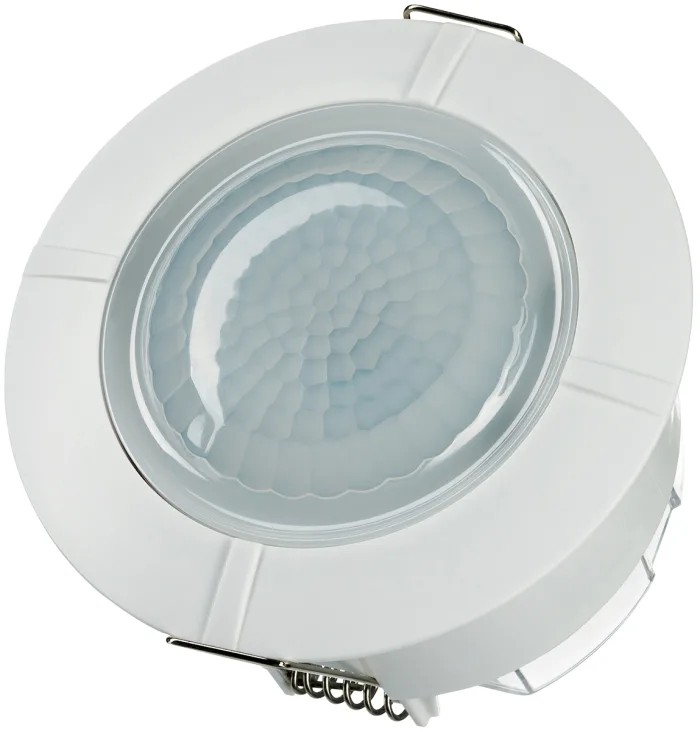

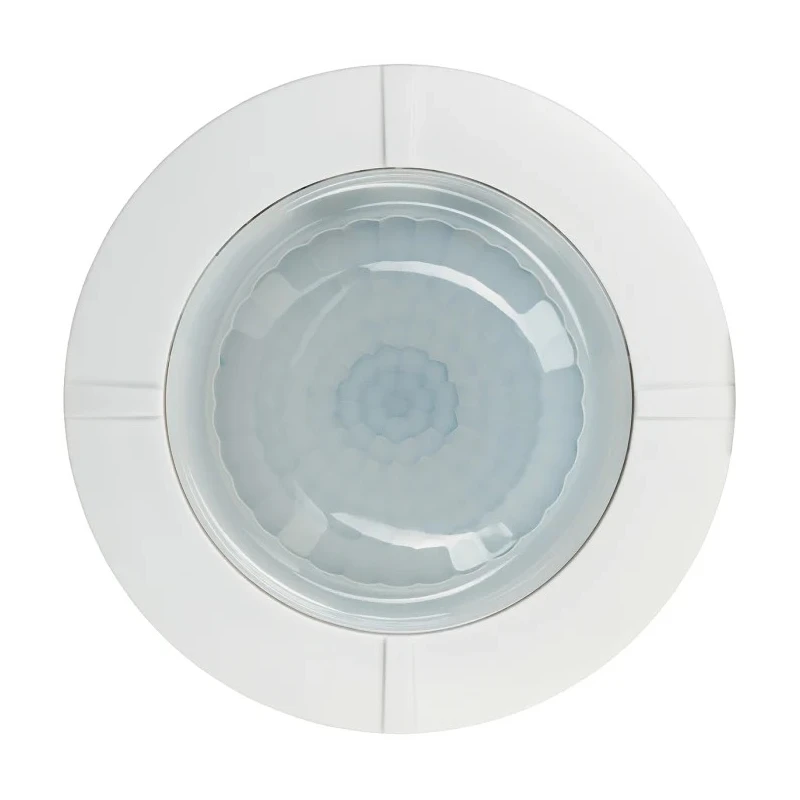

Timeguard Presence Detector PIR Sensor 230V AC, 8 m Sensor Radius, Ceiling Mounted SLFM360N

Timeguard SLFM360N Presence Detector PIR Sensor is engineered for accurate presence and motion detection with a 230V AC power supply. The ceiling-mounted sensor provides a comprehensive 360° detection coverage with an 8 meter radius for motion sensing and up to 4 meters for presence detection at a recommended 3 meter mounting height.

This sensor features a slimline head design for discreet installation and includes manual override capabilities alongside adjustable time settings ranging from 3 seconds to 18 minutes, allowing for precise control based on application requirements. The adjustable light sensitivity setting ranges from 1 to 1000 LUX, enhancing energy efficiency by switching off lights under sufficient ambient lighting conditions.

Capable of controlling various lighting loads, the SLFM360N supports total PIR switching power up to 2000W for halogen lamps, 500W for fluorescent fittings, 250W for LED lights, and 75W for fan motors, making it suitable for a wide range of commercial and industrial environments.

Flush mounting into ceilings is facilitated by a 75mm diameter cut-out and the sensor's compact dimensions (90mm diameter and 60mm height/depth) ensure minimal intrusion on the installation surface. The IP44 rating certifies resistance to dust and water splashes, providing reliable operation in internal settings such as offices, conference rooms, and corridors.

This presence detector is particularly suited for industrial, commercial, and HVAC applications where automated control of lighting and ventilation based on occupancy improves energy savings and convenience. Its robust design and adjustable parameters make it a versatile choice for modern building automation systems.

Features slimline sensor head with a 360° detection area. Provides up to 8 meters detection range for motion sensing. Includes presence detection up to 4 meters at 3-meter mounting height. Equipped with adjustable time setting from 3 seconds to 18 minutes.

Manual override and adjustable light level (LUX) settings from 1 to 1000. Supports total PIR switching: 2000W halogen, 500W fluorescent, 250W LED lighting, and 75W fans. Flush mounting with a 75mm ceiling cut-out diameter.

IP44 rated for protection against dust and water sprays. Compact dimensions: 90mm diameter, 60mm height and depth. Explore EnvMart's wide range of sensor products for industrial and commercial automation applications to find the perfect components for your setup.
