Timeguard Analogue 1 Channel 230V AC 16(6)A Load 24 Hour Compact Immersion Heater Time Switch NTT01

Free Delivery in India | Lowest Global Shipping Charges

Timeguard Analogue 1 Channel 230V AC 16(6)A Load 24 Hour Compact Immersion Heater Time Switch NTT01

Name: Timeguard Analogue 1 Channel 230V AC 16(6)A Load 24 Hour Compact Immersion Heater Time Switch NTT01
Brand: Timeguard
SKU: 377735
Price: 67.82 USD
Availability: InStock



Category Time Switch Brand Timeguard Condition New

Specifications

Country of Origin	China
Brand	Timeguard
Height	92mm
Model	NTT01
Depth	60mm
Series	NTT01
Sub Type	Analogue
Terminal type	Screw
Number Of Channels	1
Standards/Approvals	CE, Conforms to latest EC Directives
Maximum Supply Voltage	230V ac
Units Measured	Minutes
Segment Length	24h
ST600 24 hr segment timeswitch,230VacBrand	Theben / Timeguard

Key Features

Features 96 quick-set segments allowing up to 48 ON and 48 OFF programs within 24 hours.
Load rating of 16(6) amps suitable for domestic immersion heater applications.
Equipped with LED status indicators in red and green for easy operation monitoring.

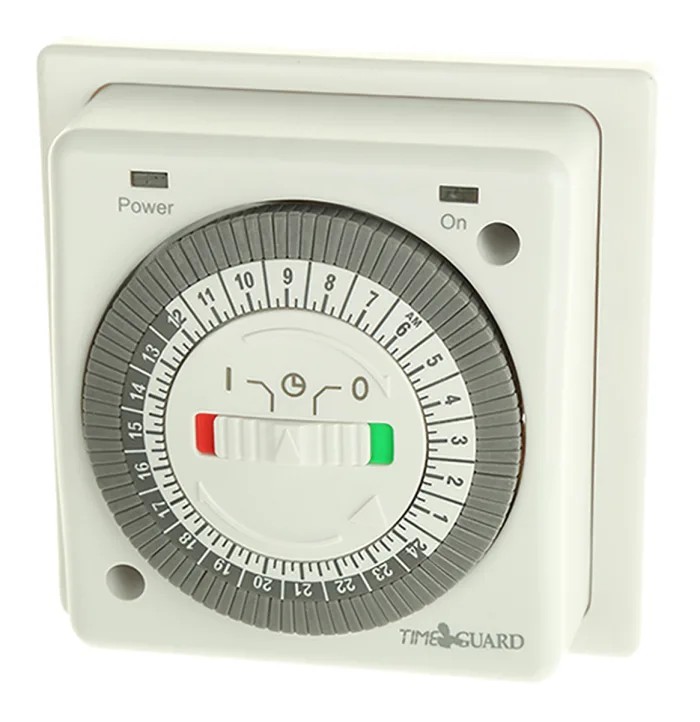

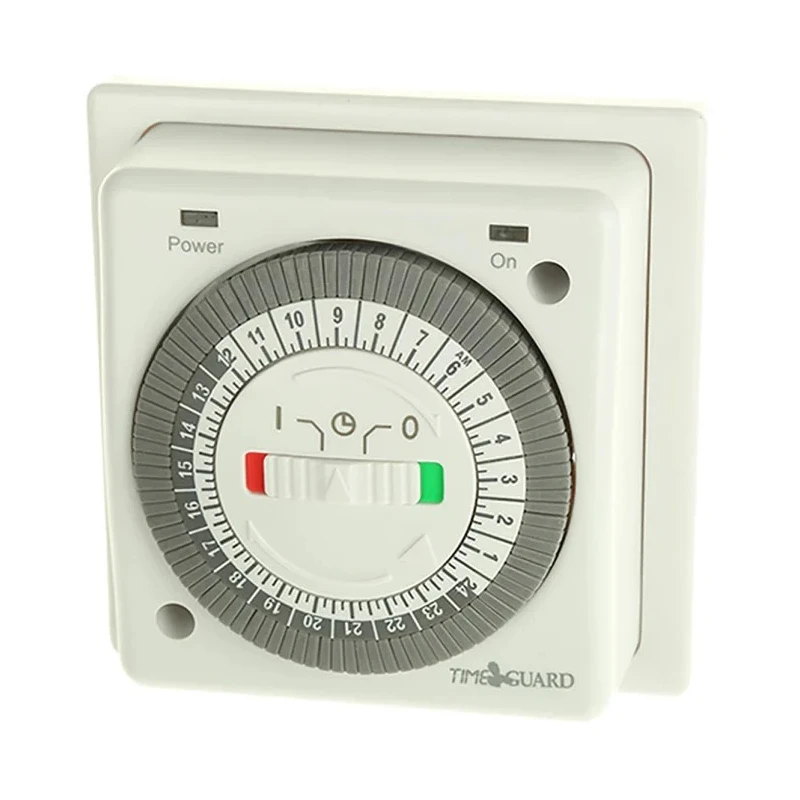

Includes a special "Traffic Light" slider switch to toggle between ON, AUTO, and OFF modes clearly.
Designed to fit standard flush or surface mount boxes with minimum depth of 32mm.
Simple captive segment dial enables straightforward time setting for daily use.

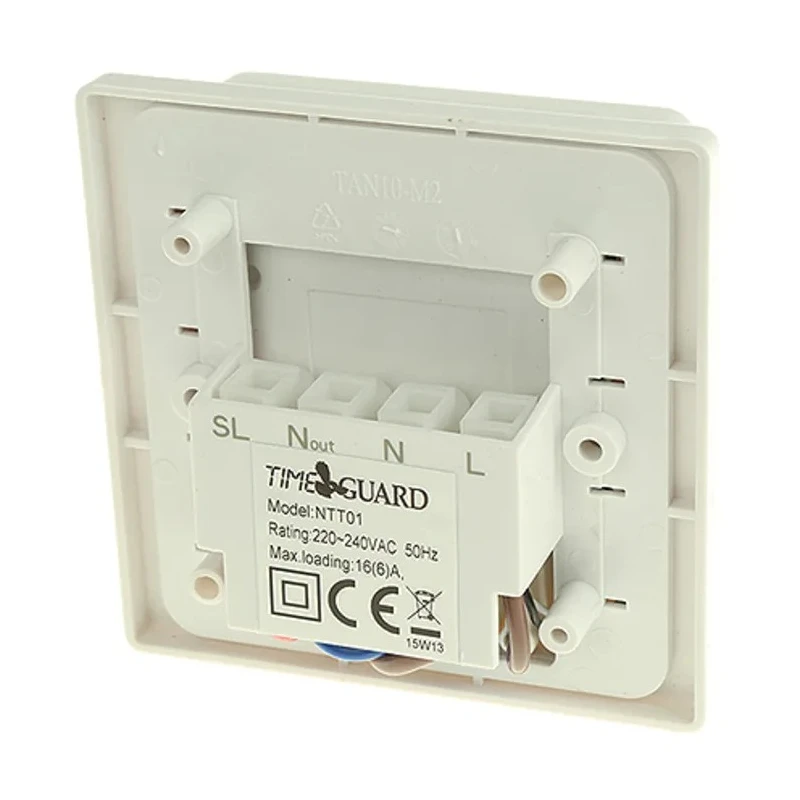

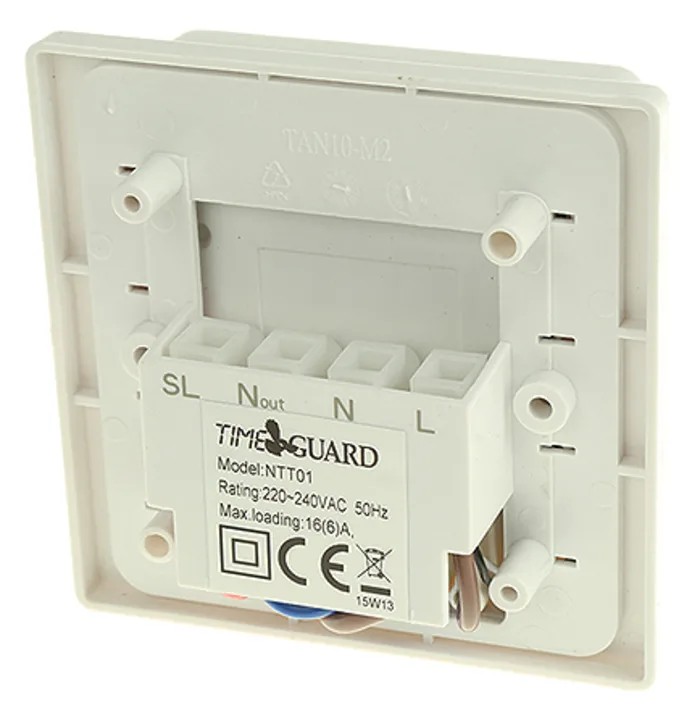

Terminal connections use screw type terminals for secure wiring.
Compact design with height 92mm and depth 60mm for convenient installation.

Product Description

Timeguard NTT01 is a high-quality analogue time switch designed for controlling immersion heaters with a 230V AC supply. The device features a single channel and a 24 hour segment length, allowing precise control of heater operation times. The 96 quick-set segments enable up to 48 ON and 48 OFF switching periods, adaptable for complex heating schedules.

The switch includes LED status indicators in both red and green, providing clear visual feedback on the operational state. The innovative "Traffic Light" slider switch allows users to quickly select modes: ON (green), AUTO (green and red), or OFF (red), enhancing ease of use in domestic environments.

Its robust build includes screw terminals for wiring and is engineered to fit standard flush or surface mount boxes of minimum 32mm depth, facilitating flexible installation options. The compact dimensions of 92mm height and 60mm depth make it suitable for constrained spaces while meeting CE and latest EC directives compliance.

Ideal for residential immersion heater control, this time switch ensures energy efficiency and user convenience. Its analogue interface remains reliable and straightforward for everyday use in electrical, automation, and HVAC control systems.

Features 96 quick-set segments allowing up to 48 ON and 48 OFF programs within 24 hours. Load rating of 16(6) amps suitable for domestic immersion heater applications. Equipped with LED status indicators in red and green for easy operation monitoring.

Includes a special "Traffic Light" slider switch to toggle between ON, AUTO, and OFF modes clearly. Designed to fit standard flush or surface mount boxes with minimum depth of 32mm. Simple captive segment dial enables straightforward time setting for daily use.

Terminal connections use screw type terminals for secure wiring. Compact design with height 92mm and depth 60mm for convenient installation.

This product finds application in home electrical setups, automation & control gear, process control systems, and time-based switching scenarios requiring reliable analogue timer functionality.
