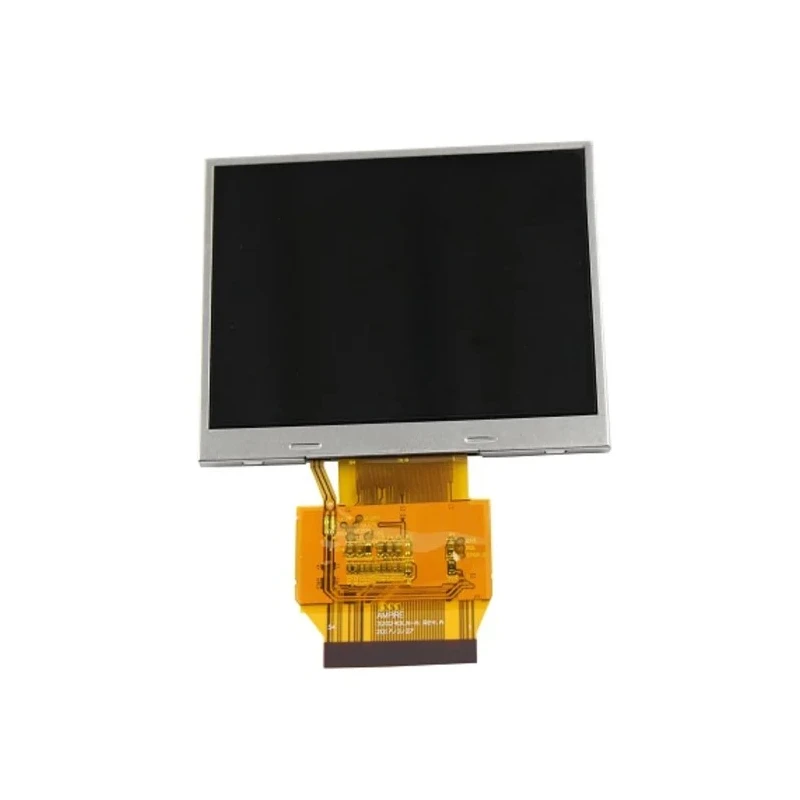

Ampire TFT LCD Display 88.9 mm, 320 x 240 Pixels, LED Backlight, 24 Bit Interface, AM-320240LNTMQW-00H-A
Specifications
| Country of Origin | India |
|---|---|
| Display Type | TFT |
| Brand | Ampire |
| Current | 20mA |
| Height | 68.9mm |
| Model | AM-320240LNTMQW-00H-A |
| Depth | 3.15mm |
| Width | 79.9mm |
| Maximum Operating Temperature | 70°C |
| Brightness | 400cd/m² |
| Minimum Operating Temperature | -20°C |
| Interface Type | 24 Bit |
| Screen Resolution | 320 x 240 pixel |
| Maximum Supply Voltage | 3.6V |
| Minimum Supply Voltage | 3.3V |
| Viewing Area Dimensions | 70.08 x 52.56 mm |
| Backlight Type | LED |
| 500 | 1 |
| Diagonal Display Size | 88.9mm |
| Contrast Ratio | 500:1 |
| Contrast Ratio500 | 1 |
| Aspect Ratio | 4:3 |
| Aspect Ratio4 | 3 |
Key Features
- TFT LCD display with a diagonal size of 88.9 mm for crisp visualization.
- Features a 320 x 240 pixel screen resolution for clear and detailed graphics.
- Equipped with a 24 Bit parallel interface to enable versatile integration.
- LED backlight ensures high visibility and energy efficiency.
- Viewing area dimensions are 70.08 x 52.56 mm for optimized information presentation.
- Robust operating temperature range from -20°C to 70°C suitable for industrial environments.
- Operates with a supply voltage range of 3.3V to 3.6V and 20 mA current draw.
- Mechanical height of 68.9 mm, width 79.9 mm, and depth 3.15 mm for compact installation.
Product Description
Ampire AM-320240LNTMQW-00H-A is a high-performance 3.5 inch TFT LCD display designed for reliable and efficient electronic and industrial panel applications. It features a diagonal display size of 88.9 mm with a native screen resolution of 320 x 240 pixels, delivering sharp graphical output and crisp visuals for control panels, portable devices, and instrumentation.
The display is constructed with an amorphous silicon TFT-LCD, featuring a stainless bezel and integrated white LED backlight, which ensures longevity and high visibility in varied lighting environments. Its 24 Bit parallel interface enables broad compatibility across embedded and industrial systems.
TFT LCD technology for enhanced color and grayscale rendering. LED backlighting for energy savings and extended product life. 500:1 contrast ratio and 400 cd/m² brightness for vibrant displays. Wide operating temperature range (-20°C to 70°C) ideal for demanding environments.
Compact physical form with a viewing area of 70.08 x 52.56 mm for space-limited layouts.
The device supports a supply voltage of 3.3V (min) to 3.6V (max) and draws a current of 20 mA, making it suitable for battery-powered or energy-conscious designs. The module is physically robust, with dimensions 79.9 mm wide, 68.9 mm high, and 3.15 mm deep for ease of integration.
This Ampire display is widely used in process automation, factory control panels, laboratory instrumentation, and commercial electronic products where reliable, clear, and easily integrated display modules are essential. It can be directly installed in various equipment requiring color graphic output and real-time data presentation.
High-quality construction with stainless bezel for durability. Supplied power circuit includes a built-in 3.3V regulator for hassle-free integration. Not equipped with touchscreen functionality, making it suitable for display-centric applications.
Typical use cases include HVAC controls, laboratory equipment, test/measurement instruments, and user interfaces in machinery. Explore more Ampire display modules and electronics components in the Display Module category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The display has a screen resolution of 320 x 240 pixels, providing clear and detailed graphics.
The diagonal size of the display is 88.9 mm.
It operates within a temperature range of -20°C to 70°C, making it suitable for industrial environments.
This model features a 24 Bit parallel interface, allowing for versatile integration with various systems.
The viewing area dimensions are 70.08 x 52.56 mm, optimized for effective information presentation.
The display has a brightness level of 400 cd/m², ensuring high visibility in various lighting conditions.
It draws a current of 20 mA, making it suitable for energy-conscious applications.
The display measures 79.9 mm in width, 68.9 mm in height, and 3.15 mm in depth.
The contrast ratio of the display is 500:1, providing vibrant and clear visuals.
The display is manufactured in India.
It is equipped with an LED backlight, which enhances visibility and energy efficiency.
This display is suitable for applications such as process automation, factory control panels, and laboratory instrumentation.
