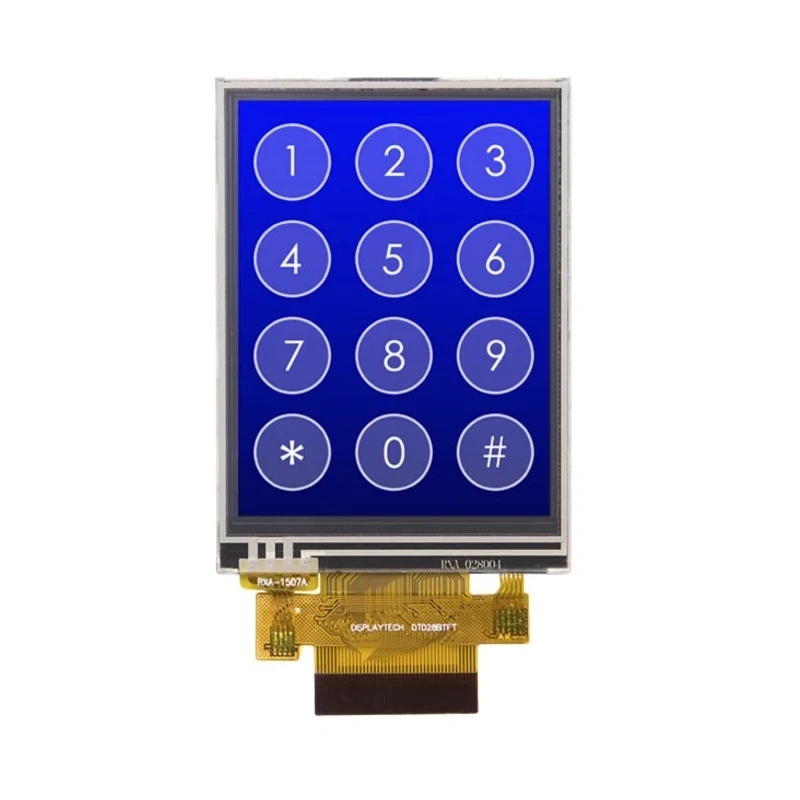

Displaytech DT028BTFT-TS 2.8 inch TFT LCD Display Touch Screen 240 x 320 Pixel SPI Interface China
Specifications
| Country of Origin | China |
|---|---|
| Display Type | TFT |
| Brand | Displaytech |
| Current | 15mA |
| Height | 69.2mm |
| Model | DT028BTFT-TS |
| Depth | 57.6mm |
| Width | 50mm |
| Series | DT028 |
| Maximum Operating Temperature | 70°C |
| Brightness | 220cd/m² |
| Minimum Operating Temperature | -20°C |
| Interface Type | SPI, 16 Bit, 18 Bit, 8-Bit, 9 Bit |
| Screen Resolution | 240 x 320 pixel |
| Touch Screen Type | Resistive |
| Maximum Supply Voltage | 3.3V |
| Minimum Supply Voltage | 2.6V |
| Viewing Area Dimensions | 43 x 58 mm |
| Backlight Type | LED |
| 500 | 1 |
| Diagonal Display Size | 2.8in |
| Contrast Ratio | 500:1 |
| Contrast Ratio500 | 1 |
Key Features
- This display offers a viewing area of 43 x 58 mm with LED backlight.
- It operates on supply voltages ranging from 2.6V to 3.3V ensuring low power consumption.
- The resistive touch screen type supports interactive control.
- Operating temperature ranges from -20°C to 70°C for varied environmental use.
- Compact module dimensions of 50 mm width, 69.2 mm height, and 3.9 mm depth.
- It uses Ilitek ILI9341 chip, delivering a fast 10 ms response time.
- The module has an estimated lifetime of 20,000 hours ensuring durability.
Product Description
Displaytech DT028BTFT-TS 2.8 inch TFT LCD Display Touch Screen module is designed for digital and embedded equipment requiring a compact, high-resolution interface. It offers a pixel resolution of 240 x 320 with a resistive touch panel to facilitate user interaction through touch controls.
The display incorporates an LED backlight ensuring bright visibility with 220 cd/m² luminance and a contrast ratio of 500:1. Its active viewing area measures 43 x 58 mm, while the overall dimensions are 50 mm width, 69.2 mm height, and 3.9 mm depth, making it suitable for space-constrained applications.
Power consumption is optimized with operating voltage ranging from 2.6V to 3.3V and a current draw of 15 mA. It operates reliably within a temperature range from -20°C to 70°C, making it apt for varied industrial environments. The display's fast 10 ms response time ensures smooth graphical updates, driven by the Ilitek ILI9341 chip.
This module finds applications in digital equipment, mobile navigation devices, and video systems requiring a high-quality, touch-enabled display interface. The rugged design and 20,000 hours lifetime estimate result in durable performance in demanding scenarios.
This display offers a viewing area of 43 x 58 mm with LED backlight. It operates on supply voltages ranging from 2.6V to 3.3V ensuring low power consumption. The resistive touch screen type supports interactive control. Operating temperature ranges from -20°C to 70°C for varied environmental use.
Compact module dimensions of 50 mm width, 69.2 mm height, and 3.9 mm depth. Brightness is 220 cd/m² with a contrast ratio of 500:1 providing clear visibility. It uses Ilitek ILI9341 chip, delivering a fast 10 ms response time.
The module has an estimated lifetime of 20,000 hours ensuring durability.
This product is ideal for industrial, laboratory, manufacturing, and consumer electronics sectors. Browse EnvMart for additional Displaytech models and similar TFT LCD Display Modules to find the best fit for your application.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The resolution of this display is 240 x 320 pixels.
It features a resistive touch screen type, allowing for interactive control.
The display operates on supply voltages ranging from 2.6V to 3.3V.
The active viewing area measures 43 x 58 mm.
It has a brightness of 220 cd/m² and a contrast ratio of 500:1.
The display has a fast response time of 10 ms, ensuring smooth graphical updates.
It operates reliably within a temperature range from -20°C to 70°C.
The current draw for this display is 15 mA.
It supports SPI interface with options for 16 Bit, 18 Bit, 8-Bit, and 9 Bit configurations.
The overall dimensions are 50 mm in width, 69.2 mm in height, and 3.9 mm in depth.
The estimated lifetime of the display is 20,000 hours.
This model is suitable for digital equipment, mobile navigation devices, and video systems requiring a high-quality, touch-enabled display interface.
