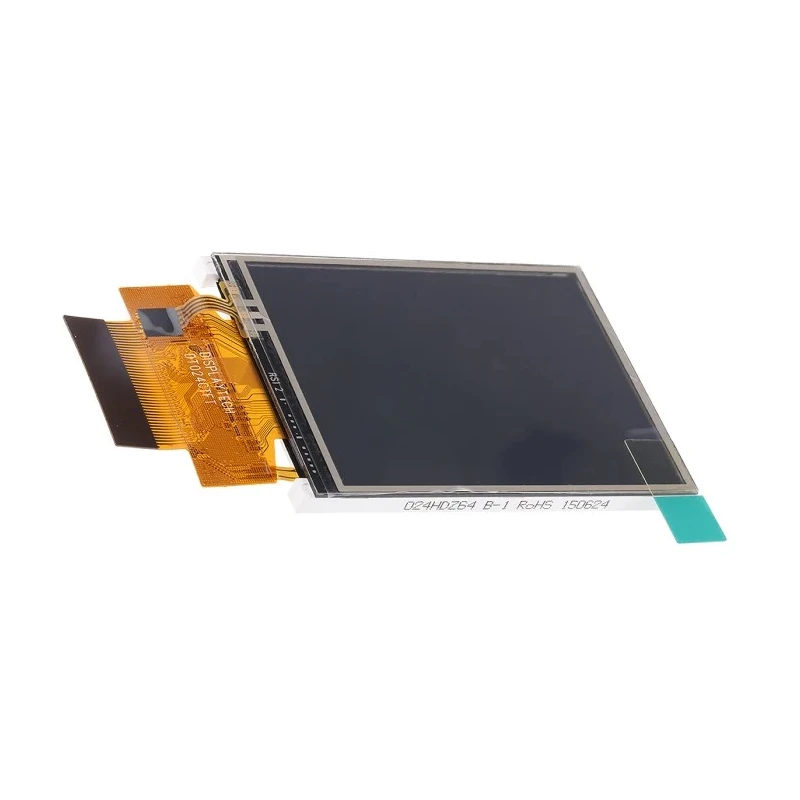

Displaytech TFT LCD Colour Display Touch Screen 60.96 mm 240 x 320 pixel DT024CTFT-TS
Specifications
| Country of Origin | China |
|---|---|
| Display Type | TFT, LCD |
| Display | Touch screen |
| Brand | Displaytech |
| Height | 59.46mm |
| Operating Temperature Range | -20 to +70°C |
| Model | DT024CTFT-TS |
| Depth | 36.72mm |
| Width | 42.72mm |
| Maximum Operating Temperature | 70°C |
| Brightness | 200cd/m² |
| Minimum Operating Temperature | -20°C |
| Viewing Direction | 6 oclock (DT035TFT and DT035TFT-TS are: 12 oclock) |
| Interface Type | RGB, Parallel |
| Screen Resolution | 240 x 320 pixel |
| Standards/Approvals | RoHS |
| Touch Screen Type | Resistive |
| Maximum Supply Voltage | 4.6V dc |
| Minimum Supply Voltage | -0.3V |
| Viewing Area Dimensions | 37 x 49 mm |
| Backlight Type | LED |
| Diagonal Display Size | 60.96mm |
| Contrast Ratio | 350:1 |
| Aspect Ratio | 4:3 |
| Aspect Ratio 4 | 3 |
| Contrast Ratio 350 | 1 |
| 350 | 1 |
| Displaytech LCD Colour Display, 60.96 mm, 240 x 320 pixelBrand | Displaytech |
Key Features
- It uses a resistive touch screen with RGB, Parallel interface for connection.
- The LED backlight enhances visibility in various lighting conditions.
- Operating temperature ranges from -20°C to 70°C ensuring reliable performance.
- The display module is compact with dimensions of 59.46 mm height, 42.72 mm width, and 36.72 mm depth.
- Power supply is included and accepts voltages between -0.3V and 4.6V dc.
- Designed for industrial, medical, and consumer applications requiring user input via touch.
- Manufactured in China and compliant with RoHS standards.
- This display module is ideal for integration in equipment requiring compact high-quality colour LCDs with touch functionality.
Product Description
Displaytech DT024CTFT-TS is a new TFT LCD Colour Display Touch Screen designed for industrial, medical, consumer, and embedded applications where compact size and high resolution are critical.
This 2.4-inch (60.96 mm) diagonal LCD features a 240 x 320 pixel resolution with a 4:3 aspect ratio, delivering sharp and vibrant images. The module employs an RGB, parallel interface type and is fitted with a resistive touch screen, supporting user interaction and precise input.
The display’s LED backlight provides consistent brightness of 200 cd/m², suitable for varied lighting environments. Its contrast ratio of 350:1 ensures good differentiation between bright and dark areas on the screen.
Operating voltage ranges from -0.3V to 4.6V DC, with power supply included. The module sustains operation over a temperature range from -20°C to 70°C, enabling reliable function in demanding conditions. The physical dimensions are compact at 59.46 mm height, 42.72 mm width, and 36.72 mm depth, making it a perfect fit for space-limited devices.
The driver IC is mounted directly on the glass to optimize performance. The product is RoHS compliant and manufactured in China.
This touchscreen display module is especially well suited for embedded systems, control panels, handheld instruments, and other electronic devices requiring a user interface with touch capability.
The TFT LCD display offers wide viewing angles and accurate colors. The resistive touch screen supports multi-user input and is easy to integrate. The compact size supports space-efficient design in electronics. LED backlight enhances screen readability in ambient light.
The module is engineered for industrial and consumer-grade applications. It includes reliable power supply compatibility. Operating temperature range allows usage in varied environmental conditions. RoHS certification guarantees compliance with environmental standards.
The product supports quick integration with suitable FPC connectors. Made in China with quality control ensuring unit consistency. Explore more advanced LCD modules and touchscreen solutions on EnvMart for your display requirements in diverse industrial and electronic projects.
Explore more products in our LCD Colour Displays category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The display module features a resolution of 240 x 320 pixels, providing clear and vibrant images.
It uses a resistive touch screen, allowing for user interaction and precise input.
The operating temperature range for this model is from -20°C to 70°C, ensuring reliable performance in various environments.
The dimensions of the display module are 59.46 mm in height, 42.72 mm in width, and 36.72 mm in depth.
This display uses an RGB, parallel interface for connection, facilitating easy integration with other systems.
The display has a brightness level of 200 cd/m², which enhances visibility in various lighting conditions.
Yes, a power supply is included with the display, which accepts voltages between -0.3V and 4.6V DC.
The contrast ratio of this LCD is 350:1, allowing for good differentiation between bright and dark areas on the screen.
The diagonal size of the display is 60.96 mm, making it compact for various applications.
This display is RoHS compliant, ensuring it meets environmental standards.
This model is designed for industrial, medical, consumer, and embedded applications requiring user input via touch.
