4D Systems 4.3 in Arduino Compatible Display Resistive Touch Screen gen4

4D Systems SK-gen4-43DT-AR Arduino Compatible Display is a 4.3 inch integrated colour TFT LCD with resistive touch screen. It is powered by the 4D Systems Diablo16 graphics processor, offering a comprehensive set of features for embedded systems and educational development projects.

This display module operates within a supply voltage range of 4 to 5.5 volts and provides a vibrant 240 x 320 pixel resolution with RGB 65K true to life colours.

The device includes 16 general-purpose input/output pins, four of which can be configured as analog inputs, supporting PWM, TTL Serial, three I2C channels, SPI channels, pulse output, and quadrature input for extensive interfacing options.

The module integrates an on-board latch type micro-SD memory card connector which supports multimedia storage and data logging capabilities. Additionally, a PWM audio pin driven by WAV files from the micro-SD card allows sound generation for external amplification.

Multiple SPI channels are provided, including one dedicated for the SD card and three configurable SPI channels, enhancing communication capabilities.

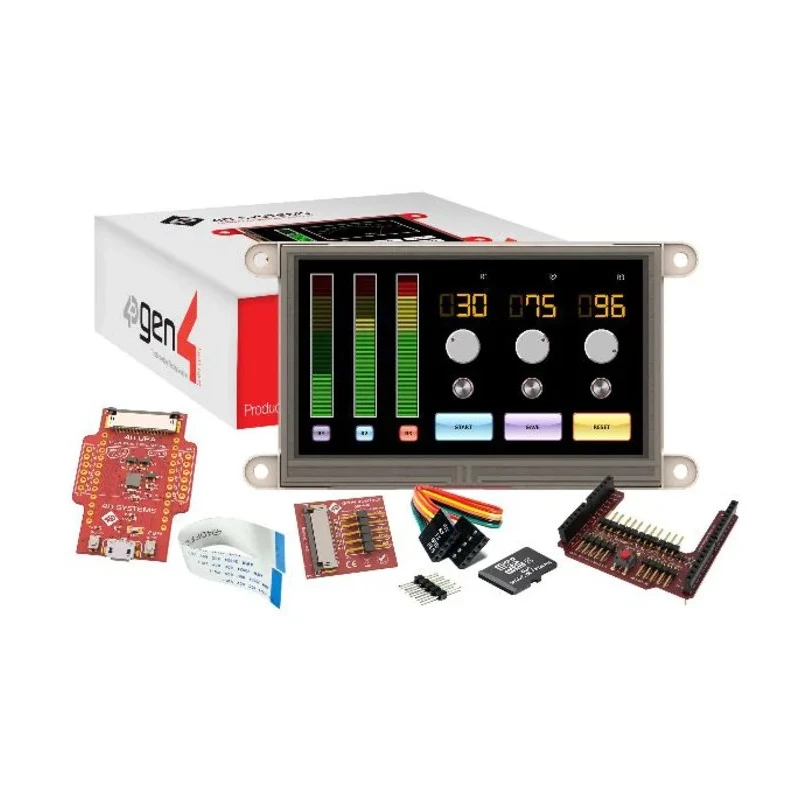

The starter kit typically contains the Gen4 integrated display module, gen4-IB interface board, Gen4 programming adaptor (gen4-PA), a 4GB micro-SD card, a 5-way cable for easy connection to breadboards or hosts via the gen4-IB, and a 30-way 150mm FFC cable accessory board for advanced functionality.

This display is suitable for embedded applications and compatible with Arduino and Raspberry Pi platforms. Note that SD cards are currently delivered without the device. 4D Systems products are widely used in electronic development and educational contexts, providing reliable and colorful display options for advanced projects.

Features a 4.3 inch colour TFT LCD with resistive touch technology. Powered by 4D Systems Diablo16 graphics processor for advanced display control. Offers 240 x 320 pixel resolution with RGB 65K true to life colours. Includes 16 general-purpose I/O pins with 4 configurable analog inputs.

Operates on supply voltage between 4V and 5.5V suitable for Arduino platforms. Comes with on-board micro-SD card connector for multimedia storage and data logging. Provides PWM audio pin for sound output from WAV files via external amplifier.

Equipped with multiple SPI channels including a dedicated SPI for SD card. Designed for embedded, educational, and Raspberry Pi applications. Explore more Arduino compatible displays and electronic components on EnvMart for diverse development needs.
