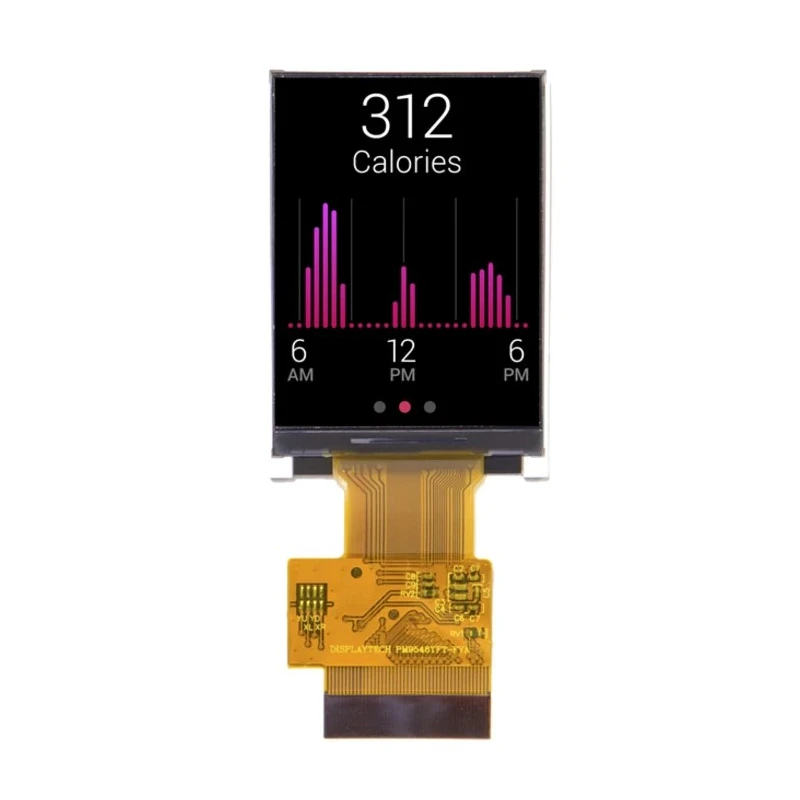

Displaytech DT022CTFT TFT LCD Display Touch Screen 55.88 mm 240 x 320 pixel 10mA LED Backlight DT022CTFT
Specifications
| Country of Origin | China |
|---|---|
| Display Type | TFT LCD |
| Brand | Displaytech |
| Current | 10mA |
| Height | 56.16mm |
| Model | DT022CTFT |
| Depth | 45.12mm |
| Width | 38.5mm |
| Series | DT022 |
| Maximum Operating Temperature | 70°C |
| Brightness | 330cd/m² |
| Minimum Operating Temperature | -20°C |
| Interface Type | MCU, RGB |
| Screen Resolution | 240 x 320 pixel |
| Touch Screen Type | Resistive |
| Maximum Supply Voltage | 3.3V |
| Minimum Supply Voltage | 2.6V |
| Viewing Area Dimensions | 34 x 45 mm |
| Backlight Type | LED |
| 500 | 1 |
| Diagonal Display Size | 55.88mm |
| Contrast Ratio | 500:1 |
| Contrast Ratio500 | 1 |
Key Features
- The display features an MCU and RGB interface for flexibility in integration.
- It operates at a current of 10mA with a supply voltage range of 2.6V to 3.3V.
- The touch screen type is resistive, enabling precise and responsive input.
- Operating temperature ranges from -20°C to 70°C, suitable for diverse environments.
- The viewing area dimensions are 34 x 45 mm, with overall module dimensions of 56.16 mm height, 38.5 mm width, and 45.12 mm depth.
- The LCD uses an LED backlight with an approximate lifespan of 20,000 hours.
- This product is designed with a TFT LCD panel using a-Si technology and ILI9341 chip driver.
- It provides a full color display of 262K colors with a fast response time of 10ms.
Product Description
Displaytech DT022CTFT TFT LCD Display Touch Screen is a 2.2 inch active matrix TFT module with 240 (RGB) x 320 pixels resolution, designed for applications requiring compact, high-quality display solutions. It provides a diagonal display size of 55.88 mm and features a resistive touch screen with LED backlighting, ensuring bright and clear image output.
This display module supports MCU and RGB interface types, facilitating easy integration with various digital and embedded systems. It operates efficiently with a current of 10mA and a supply voltage range between 2.6V and 3.3V. The LED backlight is rated for a lifespan of approximately 20,000 hours, offering durability for long-term use.
The viewing area measures 34 x 45 mm, with overall display dimensions being 56.16 mm in height, 38.5 mm in width, and 45.12 mm in depth, making it suitable for compact installations. Its operating temperature range from -20°C to 70°C allows for reliable performance in various industrial and commercial environments.
The display provides a brightness level of 330cd/m² and a contrast ratio of 500:1, delivering vivid colors across its 262K full-colour palette with a 10ms response time. The TFT LCD technology utilizes amorphous silicon (a-Si) with an Ilitek ILI9341 chip driver, ensuring stable performance.
These features make the Displaytech DT022CTFT well-suited for use in digital equipment, mobile navigators, video systems, and other applications requiring responsive touchscreen displays with excellent visual clarity.
The display supports both MCU and RGB interface types for flexible connectivity. Resistive touch screen allows precise user input and control. LED backlight provides high brightness and a long lifespan of 20,000 hours. Robust operating temperature range from -20°C to 70°C ensures durability.
High contrast ratio of 500:1 delivers sharp and clear image quality. Compact dimensions and viewing area suitable for embedded system integration. Fast 10ms response time supports smooth visuals and user interaction. 262K color support provides rich and vibrant displays.
Amorphous silicon TFT technology ensures reliable performance. Ideal for applications in industrial, commercial, and consumer electronics. Explore the Displaytech range on EnvMart for advanced display modules and electronic components tailored to your industrial and development needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The resolution of this display is 240 x 320 pixels.
The overall dimensions of the module are 56.16 mm in height, 38.5 mm in width, and 45.12 mm in depth.
It features a resistive touch screen, allowing for precise and responsive input.
The operating temperature range is from -20°C to 70°C.
The supply voltage range for this display is between 2.6V and 3.3V.
The brightness level is 330 cd/m².
It supports both MCU and RGB interface types for flexible connectivity.
The LED backlight has an approximate lifespan of 20,000 hours.
The contrast ratio of this model is 500:1, providing sharp image quality.
The diagonal display size is 55.88 mm.
The current consumption is 10 mA.
The viewing area dimensions are 34 mm by 45 mm.
