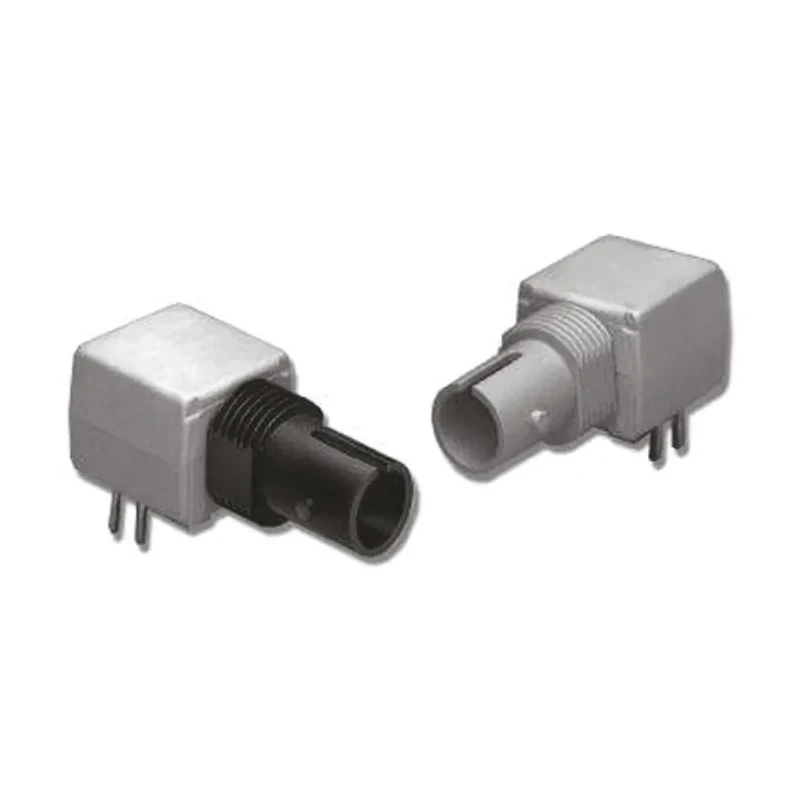

Broadcom Fibre Optic Receiver 160 MBd 820 nm Round ST Connector HFBR-2416TZ

Free Delivery in India | Lowest Global Shipping Charges

Broadcom Fibre Optic Receiver 160 MBd 820 nm Round ST Connector HFBR-2416TZ

Name: Broadcom Fibre Optic Receiver 160 MBd 820 nm Round ST Connector HFBR-2416TZ
Brand: Broadcom
SKU: 380712
Price: 33.71 USD
Availability: InStock



Category Fibre Optic Receiver Brand Broadcom Condition New

Specifications

Country of Origin	India
Brand	Broadcom
Height	10.2mm
Length	27.2mm
Model	HFBR-2416TZ
Connector Type	ST
Width	12.7mm
Mount Type	Through Hole
Series	HFBR
Interfaces	Ethernet and 802
Number of Pins	8
Typical Rise Time	6.3ns
Maximum Data Rate	160MBd
Output Signal Type	Analogue
Connector Shape	Round
Wavelength of Peak Sensitivity	820nm
This product is also available in other popular industry-standard connector	SMA

Key Features

Operates with 50/125 μm, 62.5/125 μm, 100/140 μm, and 200 μm HCS fiber optic cables.
Features a round ST threaded connector for secure and efficient coupling.
Designed for through-hole mounting with an 8-pin configuration.
Typical rise and fall times are 6.3 ns for fast response.
Wide operating temperature range from -40°C to +85°C for reliability in industrial environments.
Compatible with Broadcom HFBR-14x4Z transmitter series and meets IEEE 802.3 Ethernet and 802.5 Token Ring standards.
Supports link distances up to 2.7 km for extended reach applications.

Product Description

Broadcom HFBR-2416TZ is a high-performance fibre optic receiver designed for industrial and commercial optical communication applications. It operates at a maximum data rate of 160 MBd and features a peak sensitivity wavelength of 820 nm, making it suitable for use with various fibre optic cable types including 50/125 μm, 62.5/125 μm, 100/140 μm, and 200 μm HCS fiber. The device is mounted through hole with 8 pins and uses a round ST threaded connector to ensure efficient optical coupling and mechanical robustness.

This receiver series complies with IEEE 802.3 Ethernet and 802.5 Token Ring standards which makes it ideal for computer to peripheral links, industrial control systems, digital cross-connect links, modems, multiplexers, and related communication systems. Its wide operating temperature range from -40°C to +85°C ensures reliable performance in harsh industrial environments. The typical rise and fall times are both 6.3 ns facilitating high-speed data transmission.

Broadcom HFBR-2416TZ supports link distances up to 2.7 km, allowing for long-range fiber optic communication. This product is part of the HFBR-0400TZ miniature link components family and is specified with a low cost and compact design. The optical port design enhances insertion ease and coupling efficiency. The receiver is auto-insertable and wave solderable, eliminating the need for additional board mounting hardware.

Operates with multiple fiber core sizes including 50/125 μm and 62.5/125 μm. ST-threaded port design provides mechanical stability and ease of installation. Robust to industrial temperature extremes. Compatible with multiple industrial communication standards.

Low cost, miniature form factor optimizes space on printed circuit boards. Auto-insertable construction simplifies manufacturing processes. Suitable for Tempest systems and other secure communications.

This Fibre Optic Receiver is extensively used in industrial control links, computer monitor links, and other digital communication links requiring reliable optical signal reception.
