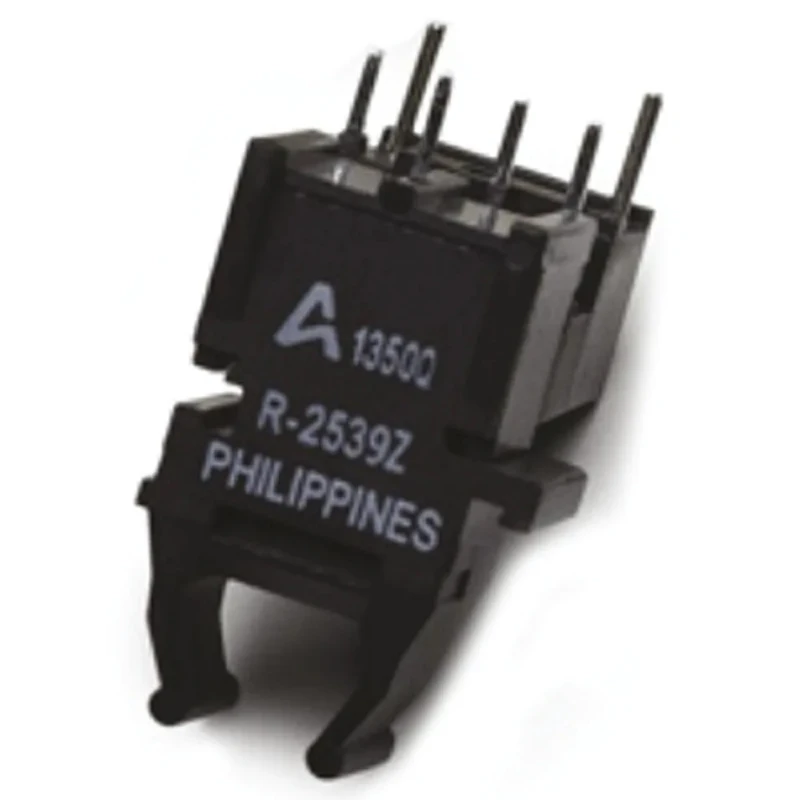

Broadcom Fibre Optic Receiver 50 MBd 685 nm TTL Output 4 Pins Through Hole AFBR-2539Z

Broadcom AFBR-2539Z is a high-speed fibre optic receiver designed for industrial and automation applications. Supporting a maximum data rate of 50 MBd and operating at a peak wavelength of 685 nm, this receiver integrates a photodiode and digitalizing IC to provide a TTL logic compatible output signal. Packaged in a robust Versatile Link housing, the AFBR-2539Z features a square connector compatible with 1 mm polymer optical fibre.

Its through-hole mount design and 4-pin configuration facilitate easy integration into electronic systems. The device features typical rise and fall times of 5 nanoseconds, ensuring rapid signal processing suitable for precise data transmission. With an operating temperature range from -40 to 85 degrees Celsius, it performs reliably in demanding industrial environments.

Applications include industrial control, factory automation, high voltage isolation, and elimination of ground loops. The compact dimensions of 18.29 mm length, 18.8 mm height, and 12.19 mm width enable space-saving installations. Users benefit from Versatile Link housings that can be interlocked to minimize space requirements further.

Square connector shape compatible with 1 mm polymer optical fibre. Digitalizing IC integrated with photodiode for TTL output logic. 4-pin through-hole mounting for easy PCB integration. Fast rise and fall time of 5 ns enables high-speed data communication.

Wide operating temperature range suitable for industrial environments. Compact Versatile Link housing optimizes space usage.

This Fibre Optic Receiver from Broadcom is particularly well-suited for industrial automation and control applications, where reliable high-voltage isolation and ground loop elimination are critical. The product supports data transmissions up to 50 MBd over distances of up to 50 meters with 1 mm plastic optical fibre, making it a versatile component for communications in harsh machining and factory floor conditions.
