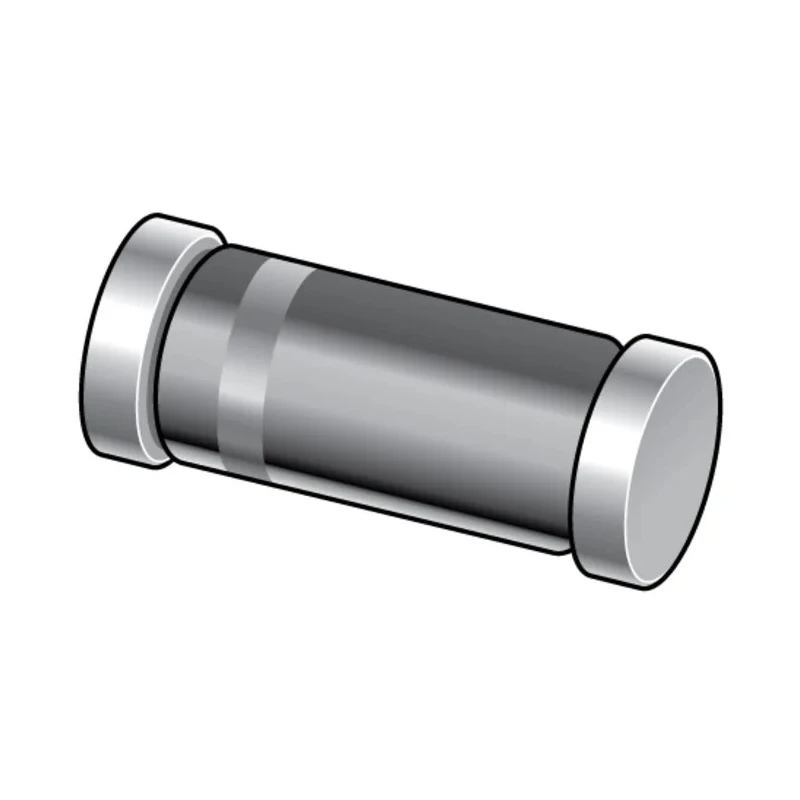

Nexperia Silicon Junction Switching Diode Single 200 mA 75 V 2-Pin SOD-80C PMLL4148L,135

Nexperia PMLL4148L,135 Silicon Junction Switching Diode is a robust electronic component designed for discrete semiconductor applications. Featuring a single diode configuration with a surface mount package type SOD-80C, it provides excellent high-speed switching performance with a peak reverse voltage rating of 75 V and maximum forward current of 200 mA.

Constructed using planar technology and hermetically sealed glass encapsulation, the diode ensures high reliability and durability in demanding industrial and commercial electronic circuits. It is optimized for low forward voltage drop and fast switching with a peak reverse recovery time of 4 ns, making it suitable for signal rectification, switching power supplies, and protection circuits.

It operates efficiently in a broad temperature range from -65°C minimum to 200°C maximum, supporting usage in harsh environments typical of industrial electronics and instrumentation. Measuring 3.7 mm in length and 1.6 mm in width and height, this compact 2-pin diode is convenient for space-constrained PCB layouts.

Typical applications include industrial automation systems, laboratory instrumentation, consumer electronic devices, and other scenarios where effective electronic switching and rectification are required. The maximum power dissipation of 500 mW ensures stable operation under typical loads.

This diode features high-speed switching capabilities in a small surface-mount package. Designed with planar technology and hermetically sealed glass SOD-80C package for durability. Maximum forward current is rated at 200 mA, supporting low power applications.

Peak reverse voltage of 75 V ensures operational reliability in various conditions. Offers low forward voltage of 1 V and fast peak reverse recovery time of 4 ns for efficient switching. Operating temperature range spans from -65°C to 200°C for wide environmental compatibility.

Compact dimensions of 3.7 mm length and 1.6 mm width and height suit compact electronic designs. The diode has 2 pins for surface-mounted device assembly on PCBs. Maximum power dissipation rated at 500 mW enables steady performance under load.

This product is ideal for applications in industrial, laboratory, manufacturing, and consumer electronics sectors requiring reliable switching diodes. Choose Nexperia diodes for proven performance and quality in discrete semiconductor components. Browse more in our Semiconductor Switching Diodes category to find compatible products.
