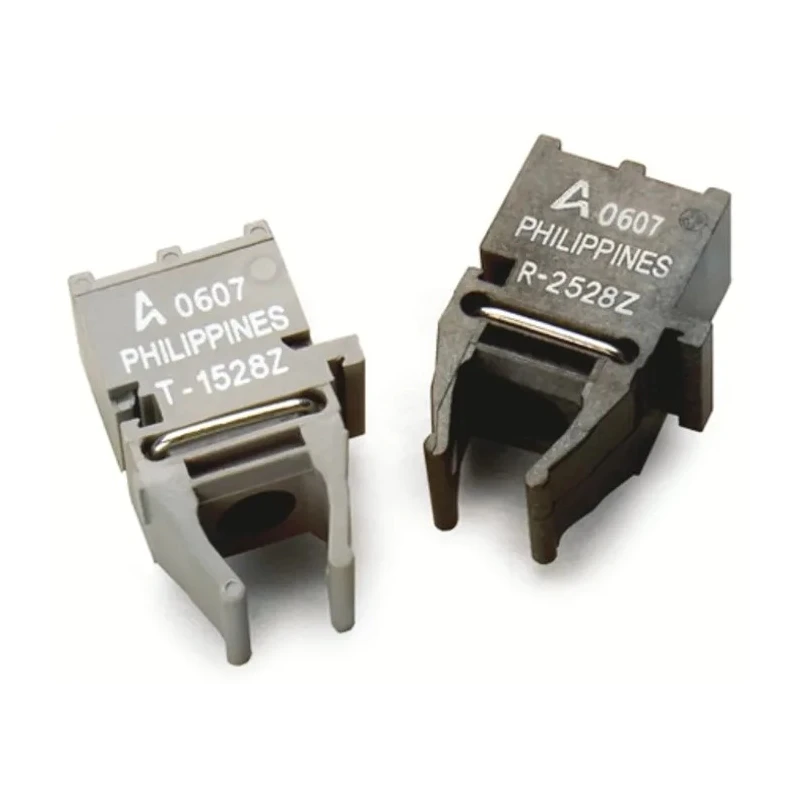

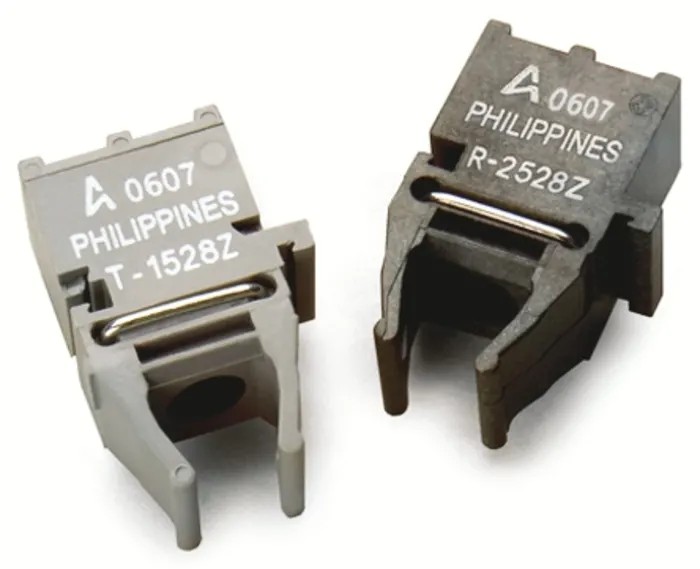

Broadcom Fibre Optic Transmitter 10 MBd Data Rate, Snap-in Mount, 662 nm Peak Sensitivity, Versatile Link Square HFBR-1528Z

Broadcom HFBR-1528Z is a fibre optic transmitter designed to convert electrical signals into optical signals suitable for short-range data links and sensing systems. It supports a maximum data rate of 10 MBd and operates using a snap-in mounting style for easy integration onto PCBs. The transmitter employs a square versatile-link connector with six pins for robust interfacing with compatible modules. It emits at a peak sensitivity wavelength of 662 nm, matching visible wavelength detectors for industrial and commercial optical communication applications.

The device features rapid optical pulse switching with a typical rise time of 13 ns and fall time of 10 ns, supporting clean and fast signal transitions critical for moderate-speed data transmission. Low forward voltage operation at 2.65 V helps reduce power consumption in drive circuitry. Its compact physical size with dimensions 7.62 mm height, 10.2 mm width, and 18.9 mm length allows use in tight or space-constrained electronic assemblies.

This transmitter is suitable for applications including short-range optical communication between modular components, industrial sensing systems utilizing visible-wavelength detectors, and optical interconnects requiring tool-free snap-in mounting. Using the versatile link square connector format enables a compact interface for reliable and repeatable integration.

Supports 10 MBd transmission for efficient moderate-speed data links. Peak optical sensitivity at 662 nm wavelength optimizes system detector matching. Snap-in mounting style simplifies installation and removal without tools.

Six-pin electrical interface with versatile link square connector ensures robust connectivity. Fast rise and fall times (13 ns and 10 ns) maintain signal integrity and reduce distortion. Low forward voltage (2.65 V) reduces drive power for increased energy efficiency.

Compact dimensions facilitate use in confined assemblies and dense module layouts. RoHS compliant to meet environmental standards.

This high-quality optical transmitter is typically applied in industrial automation, laboratory sensing systems, construction and manufacturing optical links, and commercial electronic equipment requiring precise and reliable fibre optic communication components. Explore more in the Fibre Optic Transmitters category at EnvMart for related high-performance components.
