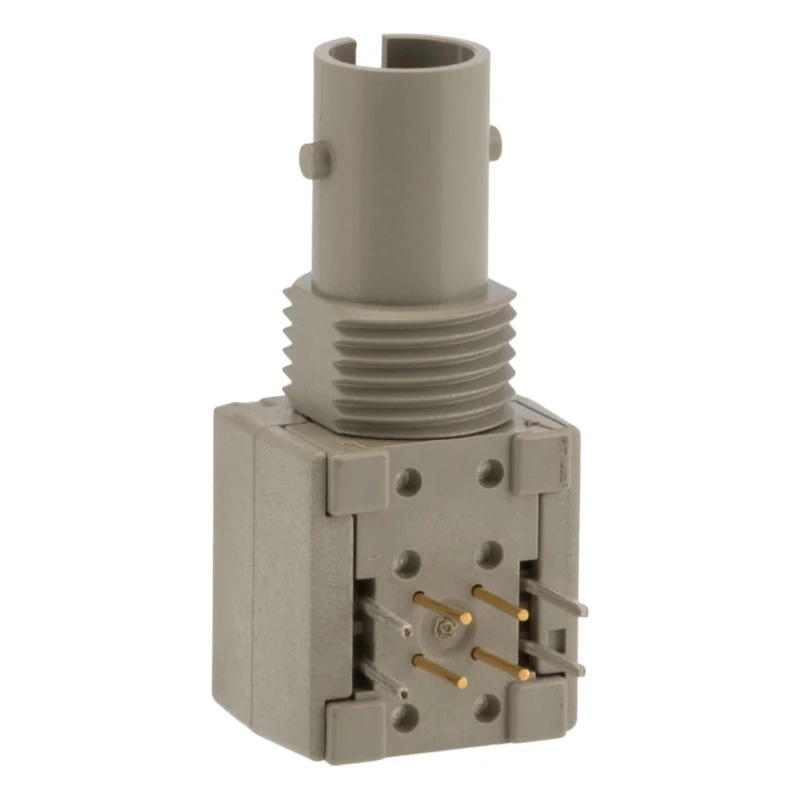

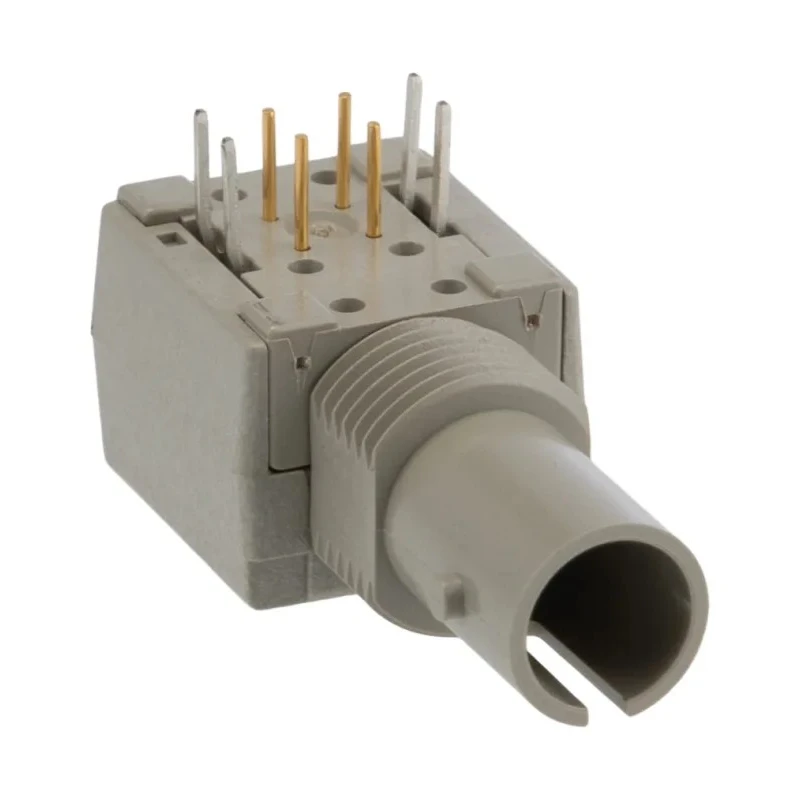

Broadcom Fibre Optic Transmitter 160 MBd Maximum Data Rate 865 nm Wavelength Round ST Connector Through Hole HFBR-1414TZ

Broadcom HFBR-1414TZ fibre optic transmitter is engineered for converting electrical signals into optical pulses for use in multi-mode fibre optic communication systems operating around near-infrared wavelengths. This transmitter features a round ST connector designed for flexible cabling with multi-mode fibres having core sizes ranging from 50 to 200 μm.

Its through-hole mounting technique requires soldering to printed circuit boards, providing a robust mechanical and electrical interface suitable for industrial, laboratory, and communication equipment applications. The compact dimensions - 27.2 mm length, 12.7 mm width, and 10.2 mm height - allow for integration in space-constrained designs.

Supporting data rates up to 160 MBd, the transmitter enables high-speed signaling over distances of up to 2000 meters, making it ideal for long-reach fibre optic links. The low typical rise and fall times of 1.3 ns and 3.08 ns respectively, ensure sharp pulse shaping and minimal signal distortion. The forward voltage of 7 V contributes to efficient power management in electronic systems.

The HFBR-1414TZ conforms to recognized safety and environmental standards including UL and RoHS, providing assurance of quality and compliance. Its 8-pin interface makes it compatible with standard sockets, easing replacement and system upgrades.

Designed for use with ST connector fibre optic installations requiring through-hole PCB mounting. Suitable for multi-mode fibre networks operating at near-infrared wavelength around 865 nm. Compact and versatile fibre optic transmitter module for communications and industrial applications.

Performance compliant with UL safety and RoHS environmental certifications. Reliable data transmission with 160 MBd max data rate and 2000 m reach capability. Optimized for multi-mode fibre with core diameters from 50 μm to 200 μm.

Low rise and fall times permit clean pulse edges and precise optical signalling. Compact footprint assists in dense electronic assemblies and upgrades.

This transmitter module is an excellent choice for signal conversion applications in sectors such as telecommunications, data networks, laboratory equipment, and other industrial systems requiring high-speed optical transmission with reliable environmental compliance. Explore a full range of Fibre Optic Transmitters and components at EnvMart to support your advanced connectivity needs.
