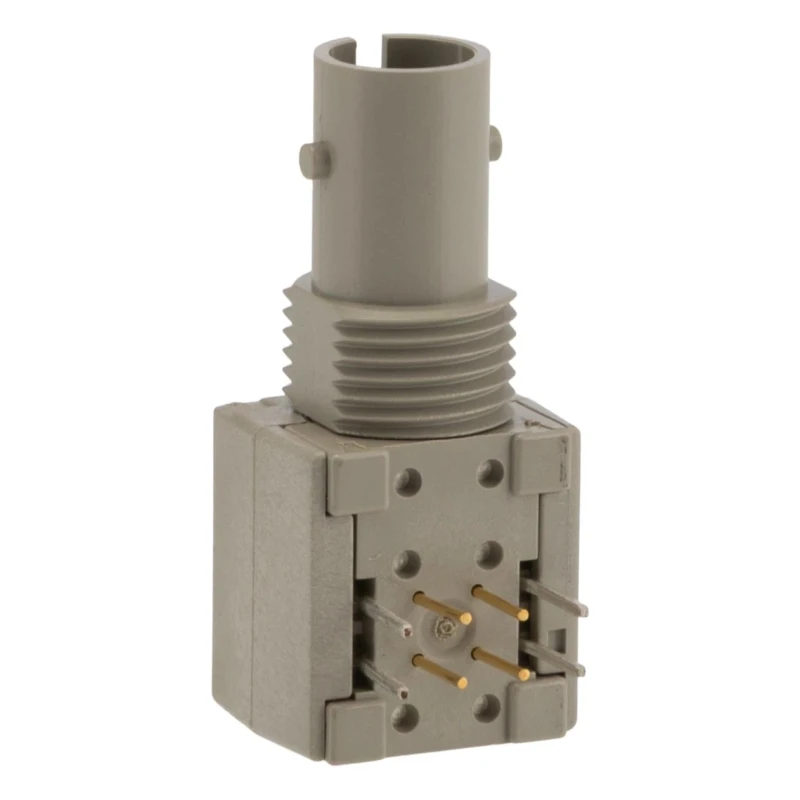

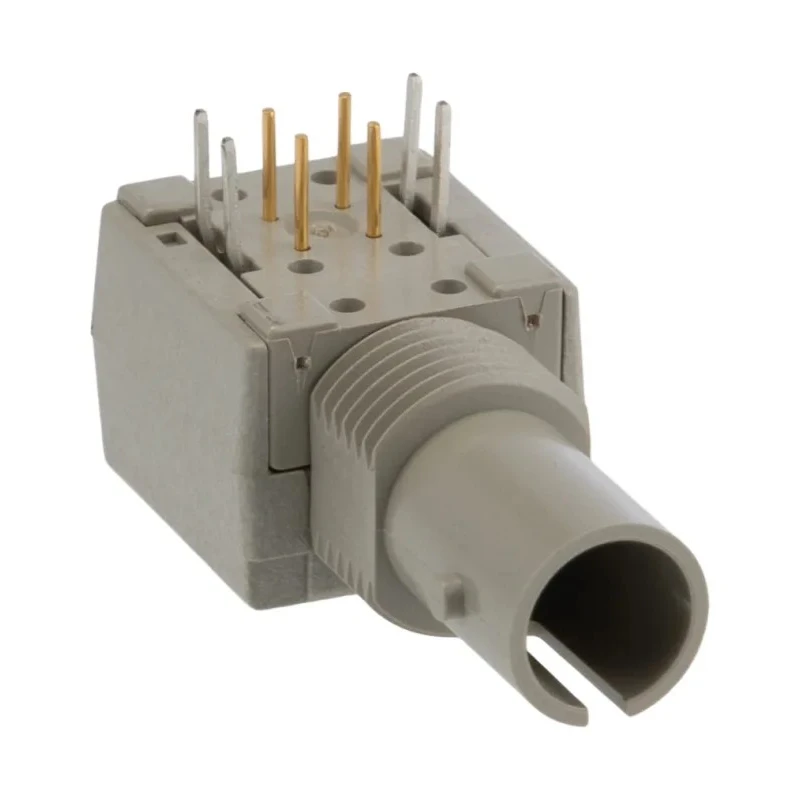

Broadcom Fibre Optic Transmitter 160 MBd Data Rate 865 nm Wavelength Round ST Connector HFBR-1414TZ

Broadcom HFBR-1414TZ is a fibre optic transmitter module designed for converting electrical signals into optical pulses for multi-mode fibre optic communication systems. Operating at a peak wavelength sensitivity of 865 nm, it supports data transmission rates up to 160 MBd over distances up to 2000 meters, making it suitable for industrial and communication applications requiring fast and reliable optical data links.

The unit features a round ST connector interface compatible with multi-mode optical fibres ranging from 50 µm to 200 µm core diameters, offering versatile connectivity options. Its through-hole mounting design with an 8-pin interface simplifies PCB integration and mechanical stability in electronic systems.

Thanks to a rise time of 1.3 ns and fall time of 3.08 ns, the HFBR-1414TZ provides clean and sharp optical pulses, enhancing signal integrity in demanding high-speed data environments. Its compact dimensions of 27.2 mm length, 12.7 mm width, and 10.2 mm height make it suitable for space-constrained designs.

This transmitter meets recognized industry standards including UL safety and RoHS environmental directives, ensuring compliance with quality and regulatory requirements. The typical forward voltage of 7 V allows for predictable power consumption and integration with standard power supplies.

Operates at a maximum data rate of 160 MBd for high-speed optical transmission. Compatible with multi-mode fibres having core sizes between 50 µm and 200 µm. Round ST connector interface for reliable fibre coupling. Supports transmission distances up to 2000 meters over multi-mode fibre.

Through-hole mount design with an 8-pin interface simplifies integration. Compact size facilitates installation in dense electronic assemblies. Compliant with UL and RoHS standards for safety and environmental care. Low rise and fall times improve signal quality.

Forward voltage of 7 V for consistent power utilization.

This fibre optic transmitter is widely used in industrial communication networks, laboratory instrumentation, and other commercial applications requiring robust and high-speed optical signal transmission. For more products in this category, browse the Fibre Optic Transmitters section on EnvMart.
