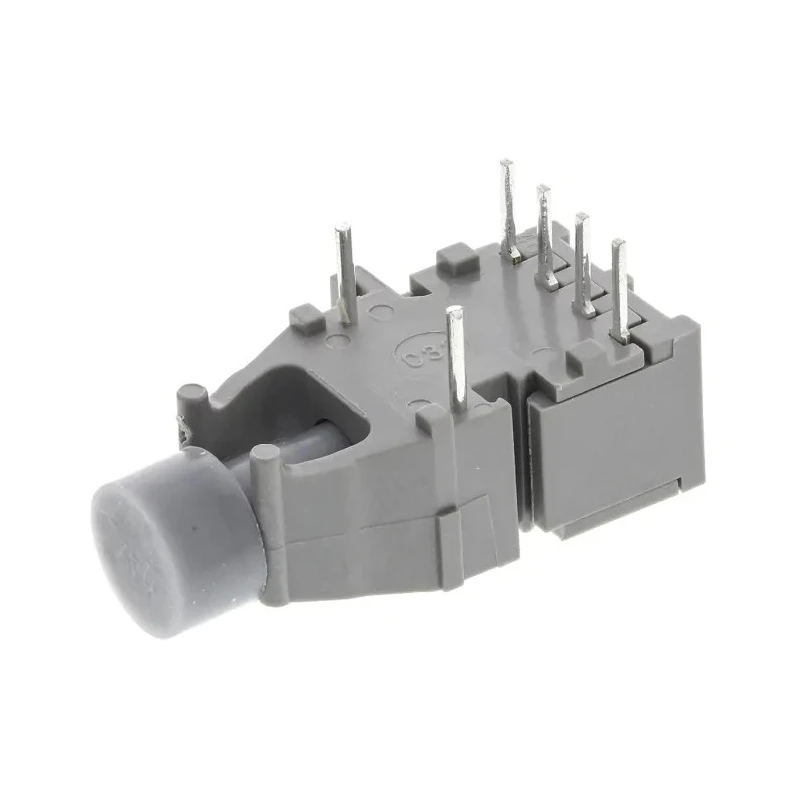

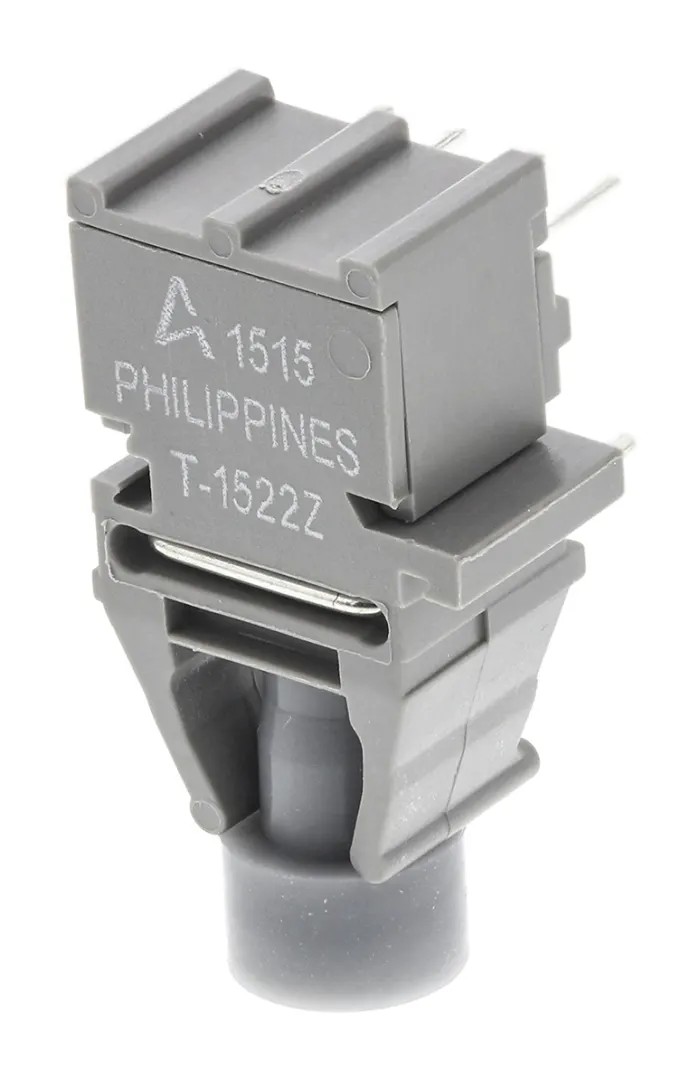

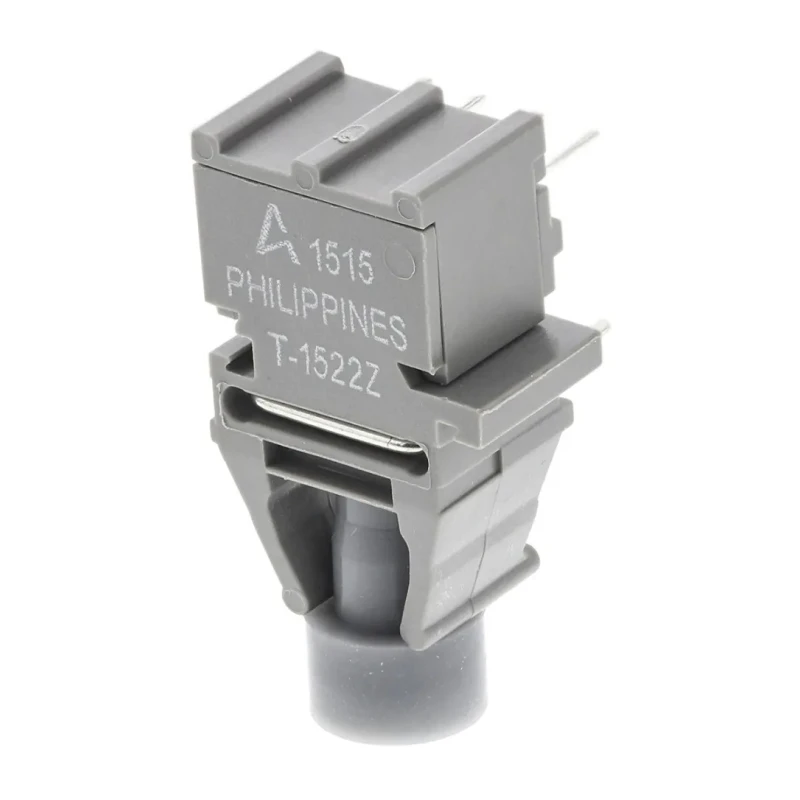

Broadcom Fibre Optic Transmitter Versatile Link Series 1 MBd 660 nm Round Connector HFBR-1522Z

Broadcom HFBR-1522Z Fibre Optic Transmitter, part of the Versatile Link Series, converts electrical signals to optical signals at a maximum data rate of 1 MBd. It operates at a peak wavelength of 660 nm and is designed for through-hole mounting with a 6-pin configuration for reliable PCB assembly. Its round Versatile Link connector provides a secure mechanical and optical interface, ideal for industrial and electronic short-range fibre optic communication applications.

This transmitter supports a transmission distance up to 45 meters, enabling efficient data transfer in control panels, industrial signalling, and optical link prototyping. With fast signal rise and fall times of 80 ns and 40 ns respectively, it ensures crisp and timely optical signal transitions. The compact design with package dimensions of 18.8 mm length, 12.19 mm width, and 7.62 mm height facilitates integration into densely packed circuits and equipment racks.

The device complies with UL and RoHS standards, ensuring quality and regulatory adherence for safety and environmental considerations. The forward voltage of 2.02 V allows operation at low voltage drive circuits, enhancing compatibility with standard industrial control systems. This component is perfectly suited for visible red light optic interconnect demonstrations and short-distance fibre optic signalling setups in industrial and electronic environments.

Operates at 660 nm wavelength optimized for red light sensitivity. Supports 1 MBd serial data links with reliable transmission over 45 m. Through-hole mount type with 6-pin configuration for PCB. Round Versatile Link connector for optical cable interfacing.

Standard compliant with UL and RoHS certifications. Compact form factor for integration in restricted spaces. Low forward voltage for efficient power consumption.

Broadcom’s HFBR-1522Z transmitter is an excellent choice for industrial instrumentation, manufacturing controls, HVAC optical signalling, laboratory equipment, and communication systems requiring short-range fibre optic connectivity. Enhance your optical link setups with this high-performance transmitter designed for precision and durability. Explore more Fibre Optic Transmitters and related components at EnvMart.
