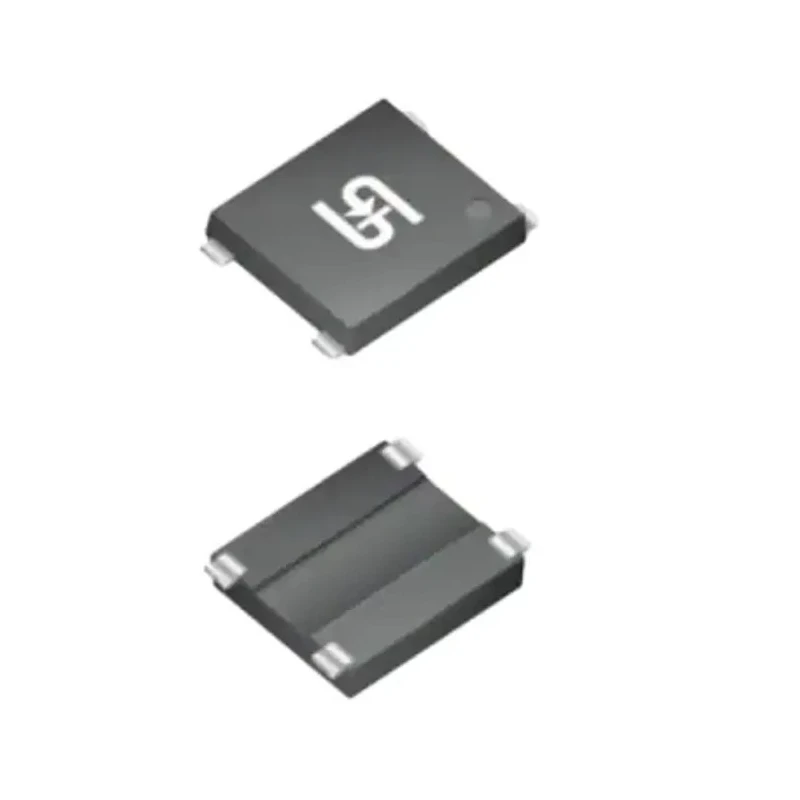

Taiwan Semiconductor Bridge Rectifier 600 V 90 A Quad YBS2205G

Taiwan Semiconductor presents the YBS2205G Bridge Rectifier, engineered to provide efficient and reliable power conversion in a wide range of electronic applications. Featuring a quad configuration with a 4-pin surface mount YBS package, this rectifier is ideal for automated placement in industrial and commercial electronic assemblies.

Designed for reliable rectification in demanding environments. Quad configuration with 4-pin surface mount package. Handles peak reverse repetitive voltages up to 600 V. Supports a forward current of 2.2 A and peak surge current of 90 A.

Operates across a temperature range from -55°C to +150°C. Glass passivated chip junction for stability and longevity. Halogen-free and RoHS compliant, meeting modern safety standards. Ideal for switching mode power supplies, adapters, and lighting applications.

This bridge rectifier's robust design ensures high surge current capability, making it suitable for power management in switching mode power supplies (SMPS), adapters, and LED lighting applications where efficiency and reliability are paramount. Its compact dimensions (6.7mm length by 8.6mm height) allow seamless integration into electronic circuits with limited space.

With certifications such as IEC 61249-2-21 and UL approval, together with RoHS compliance, the YBS2205G guarantees adherence to international quality and safety standards. The moisture sensitivity level 1 (per J-STD-020) further assures durability under varied operational conditions.

Applicable for use in industrial and commercial electronics, laboratory systems, manufacturing and lighting technologies, this bridge rectifier module empowers designers with flexible power rectification solutions for modern devices.
