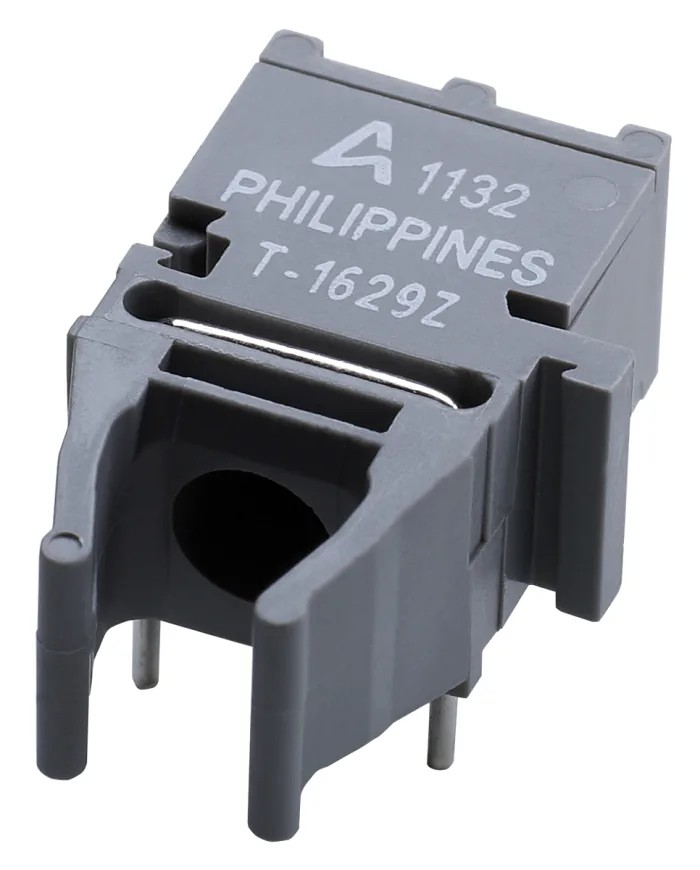

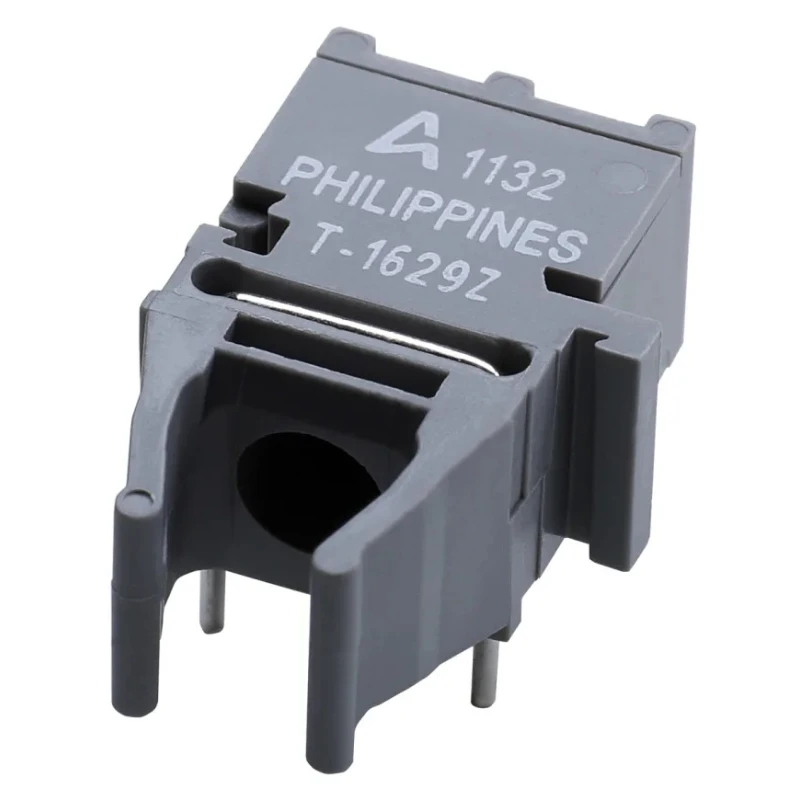

Broadcom 50 Mbps Fibre Optic Transmitter 685 nm Wavelength Rectangular Versatile Link Connector AFBR-1629Z
Specifications
| Country of Origin | India |
|---|---|
| Brand | Broadcom |
| Height | 7.6mm |
| Length | 18.8mm |
| Model | AFBR-1629Z |
| Connector Type | Versatile Link |
| Width | 12.2mm |
| Mount Type | Through Hole |
| Series | Versatile Link |
| Standards/Approvals | RoHS |
| Forward Voltage | 6V |
| Number of Pins | 4 |
| Typical Rise Time | 5ns |
| Maximum Data Rate | 50Mbps |
| Connector Shape | Rectangular |
| Wavelength of Peak Sensitivity | 685nm |
| Maximum Data Transmission Distance | 50m |
Key Features
- The transmitter uses a rectangular Versatile Link connector for reliable interfacing.
- Features a 4-pin through-hole mount design suitable for polymer optical fibre communications.
- Typical rise and fall times of 5 ns ensure fast signal switching.
- Supports maximum transmission distance of up to 50 meters at 50 Mbps.
- Compact dimensions of 18.8 mm length, 7.6 mm height, and 12.2 mm width for space-efficient PCB mounting.
- Complies with RoHS standards ensuring environmentally safe manufacturing.
- Forward voltage rating of 6 V with TTL logic compatible input signal levels.
- Ideal for industrial and electronic component applications involving short-range optical data links.
Product Description
Broadcom AFBR-1629Z fibre optic transmitter is designed for efficient optical data communication with a 50 Mbps maximum data rate. It employs a 685 nm wavelength LED source integrated with optics and driver IC, packaged in a rectangular Versatile Link housing. This model features a 4-pin through-hole mount and offers reliable connection using a Versatile Link connector system.
With typical rise and fall times of 5 ns, the AFBR-1629Z supports fast data transitions compatible with TTL logic families. Its maximum data transmission range is 50 meters using 1 mm polymer optical fibre, making it suitable for industrial communication and instrumentation systems.
The transmitter's compact size of 18.8 mm length, 7.6 mm height, and 12.2 mm width facilitates easy integration on printed circuit boards. Its forward voltage is rated at 6 V, optimized for low power consumption. Compliant with RoHS directives, this product ensures environmentally responsible usage.
The AFBR-1629Z is ideal for applications in industrial automation, laboratory instrumentation, and other electronic devices requiring short to medium range fibre optic data transmission. Its robust design and packaging permit interlocking multiple units to optimize space and achieve dual connections with duplex connectors.
The transmitter uses a rectangular Versatile Link connector for reliable interfacing. Features a 4-pin through-hole mount design suitable for polymer optical fibre communications. Typical rise and fall times of 5 ns ensure fast signal switching.
Supports maximum transmission distance of up to 50 meters at 50 Mbps. Compact dimensions of 18.8 mm length, 7.6 mm height, and 12.2 mm width for space-efficient PCB mounting. Complies with RoHS standards ensuring environmentally safe manufacturing.
Forward voltage rating of 6 V with TTL logic compatible input signal levels. Ideal for industrial and electronic component applications involving short-range optical data links. Explore more products in EnvMart's Fibre Optic Transmitters category for advanced electronic and optical component solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum data rate of the AFBR-1629Z transmitter is 50 Mbps.
This model uses a 685 nm wavelength LED source for optical data transmission.
The transmitter supports a maximum transmission distance of up to 50 meters using 1 mm polymer optical fibre.
The dimensions of the AFBR-1629Z are 18.8 mm in length, 7.6 mm in height, and 12.2 mm in width.
It uses a rectangular Versatile Link connector for reliable interfacing.
The forward voltage rating of the transmitter is 6 V.
This model features a 4-pin through-hole mount design suitable for PCB applications.
The typical rise and fall times for the AFBR-1629Z are 5 ns, allowing for fast signal switching.
Yes, it complies with RoHS standards, ensuring environmentally safe manufacturing.
This transmitter is suitable for industrial automation, laboratory instrumentation, and other electronic devices requiring short to medium range fibre optic data transmission.
The AFBR-1629Z has a total of 4 pins.
The AFBR-1629Z belongs to the Versatile Link series of fibre optic transmitters.
