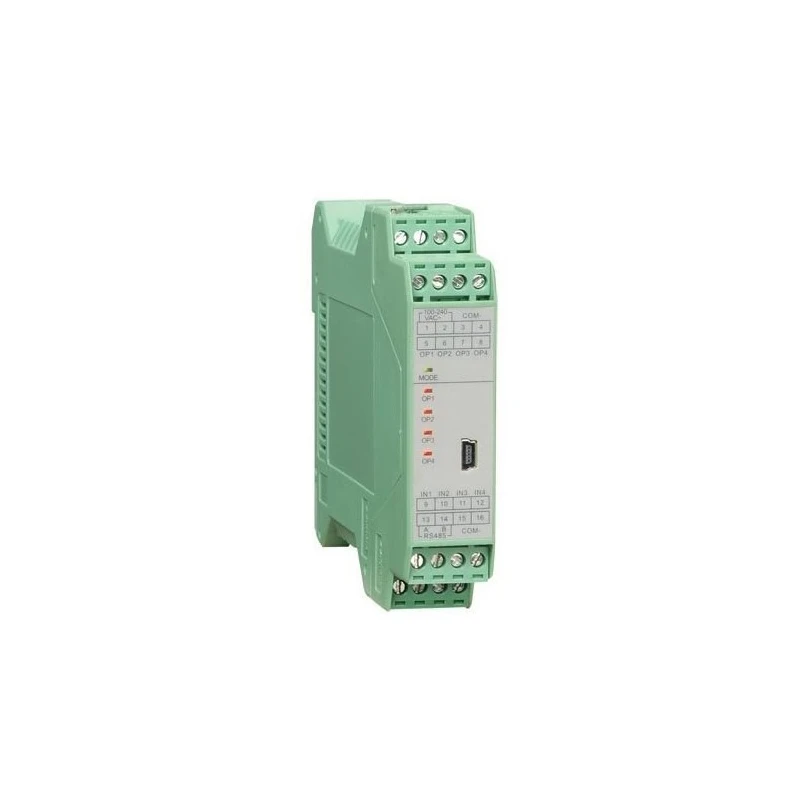

DIN Rail Type Temperature Transmitter
Specifications
| Accuracy | upto 0.1% |
|---|---|
| Output | 4-20 mA |
| Power Supply | 7.5 to 45 V DC |
| Voltage (V) | 500 mV| 0-100mV| 0-50mV| 0-1V linear input. |
| Ambient Temperature (ºC) | -40 ºC ~ 85 ºC |
| Electric Isolation | Upto 2kV AC |
Key Features
- Input Type: Universal ( RTD, TC, mV, Ohms). Fully Isolated. With in-built Cold-Junction Compensation for Thermocouples. Configurable through HART.
Product Description
DIN Rail Temperature Transmitters is a loop-powered isolated Temperature Transmitter mounted on a 35 mm DIN rail in a control panel. It receives input from 8 types of thermocouples (B, E, J, K, N, R, S, T); Pt100, Pt50, Pt200 and Cu53 RTDs; and 0-500 mV, 0-100mV, 0-50mV, 0-1V linear input.Advantages. Head mount temperature transmitter receive the signal from the resistance temperature detector (RTD) or Thermocouple (TC), and converts the measured temperature signal into 2 wire loop powered 4 to 20 mA equivalent signal.A DIN Rail Typetemperature transmitter draws current from a remote dc power supply in proportion to its sensor input. The actual signal is transmitted as a change in the power supply current.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports inputs from 8 types of thermocouples (B, E, J, K, N, R, S, T), Pt100, Pt50, Pt200, Cu53 RTDs, and linear inputs of 0-500 mV, 0-100 mV, 0-50 mV, and 0-1 V.
The output signal is a 4-20 mA equivalent signal, which is loop-powered and isolated.
The accuracy of this model is up to 0.1%.
It requires a power supply of 7.5 to 45 V DC.
The ambient temperature range for this unit is -40 ºC to 85 ºC.
It provides electric isolation of up to 2 kV AC.
The temperature signal is transmitted as a change in the power supply current, proportional to the sensor input.
Yes, it is configurable through HART protocol.
This model is designed for mounting on a 35 mm DIN rail in control panels.
Yes, it includes built-in cold-junction compensation for thermocouples.
It is compatible with thermocouples types B, E, J, K, N, R, S, and T.
The linear input voltage options are 500 mV, 0-100 mV, 0-50 mV, and 0-1 V.
