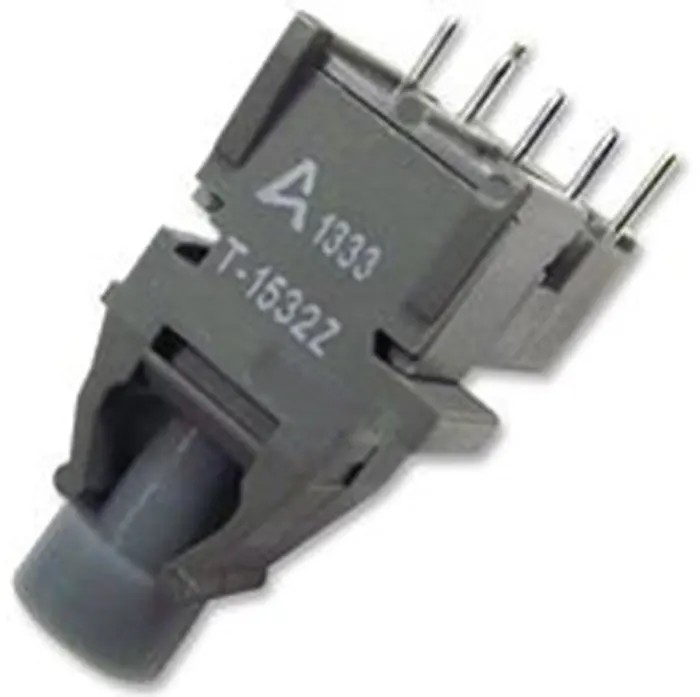

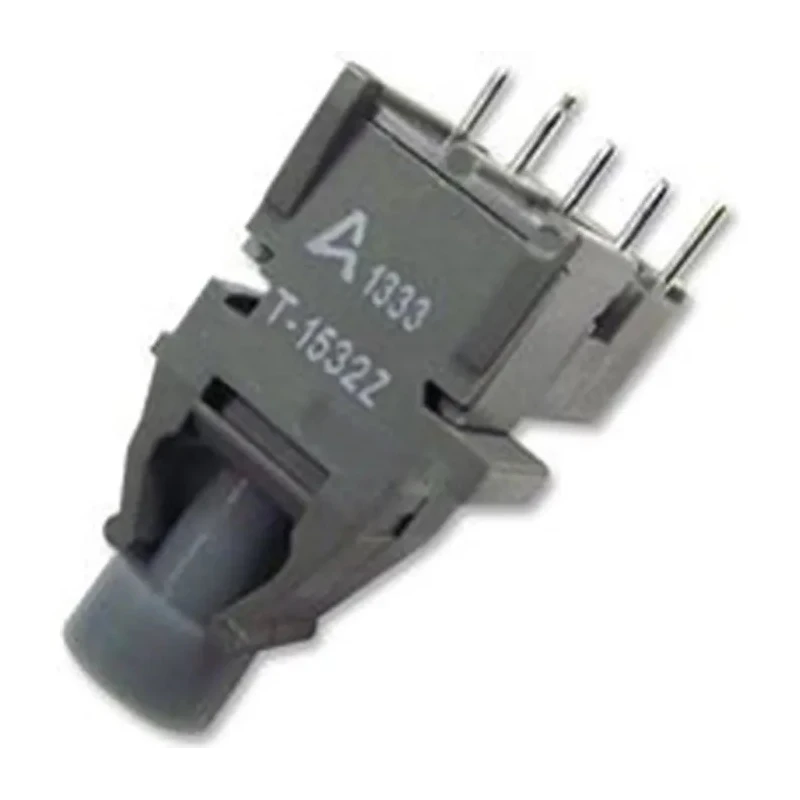

Broadcom 5 Mbps Fibre Optic Transmitter 660 nm Versatile Link Connector Through Hole Mount HFBR-1532Z
Specifications
| Country of Origin | India |
|---|---|
| Brand | Broadcom |
| Height | 7.62mm |
| Length | 18.29mm |
| Model | HFBR-1532Z |
| Connector Type | Versatile Link |
| Width | 12.19mm |
| Mount Type | Through Hole |
| Series | Versatile Link |
| Standards/Approvals | RoHS |
| Forward Voltage | 2.02V |
| Number of Pins | 6 |
| Typical Rise Time | 80ns |
| Typical Fall Time | 40ns |
| Maximum Data Rate | 5Mbps |
| Wavelength of Peak Sensitivity | 660nm |
| - Low current link | 6mA peak supply current |
| - Enhanced digital links | dc-5 MBd |
| - Extended distance links | up to 120m at 40kBd |
| - Easy connecting | simplex, duplex and latching connectors |
| Maximum Data Transmission Distance | 70m |
| Maximum Fibre Size | 1mm |
Key Features
- Operates with 5 Mbps maximum data rate ensuring efficient data transmission.
- Wavelength peak sensitivity at 660 nm for high performance.
- Through hole mount type designed for easy PCB integration.
- Features a versatile link connector with 6 pins and dimensions 18.29 mm length, 12.19 mm width, and 7.62 mm height.
- Supports maximum fibre size of 1 mm and transmission distance up to 70 m.
- Low forward voltage of 2.02 V enabling energy-efficient operation.
- Complies with RoHS standards ensuring environmental safety.
- Designed for high noise immunity and secure data communication.
Product Description
Broadcom HFBR-1532Z fibre optic transmitter provides a high-speed 5 Mbps data rate at a wavelength of 660 nm. This device belongs to the Versatile Link series, designed for efficient optical communication with a versatile link connector and through-hole mounting.
The transmitter features a low forward voltage of 2.02 V and operates reliably with a maximum fibre size of 1 mm. Its compact dimensions of 18.29 mm length, 12.19 mm width, and 7.62 mm height ensure convenient integration into electronic systems. The device supports a maximum data transmission distance of 70 meters, suitable for many industrial and commercial applications.
Constructed to meet RoHS compliance, the HFBR-1532Z ensures environmentally responsible manufacturing. The fibre optic link offers enhanced digital link performance with data rates from dc to 5 MBd, a low current peak supply of 6 mA, and interlocking feature options for secure connectivity.
This transmitter is ideal for applications requiring voltage isolation, EMI/RFI immunity, and secure data communication such as motor controller triggering, local area networks, and noise-immune audio and video equipment links. Its simple, duplex, and latching connector options facilitate easy installation and operation in demanding industrial environments.
Operates at 5 Mbps maximum data rate with 660 nm wavelength peak sensitivity. Through hole mount type with 6 pins for versatile link connector. Compact size: 18.29 mm x 12.19 mm x 7.62 mm. Maximum fibre size supported is 1 mm, with transmission distance up to 70 m.
Low forward voltage of 2.02 V, low current peak supply of 6 mA. High noise immunity for secure and reliable data transmission. RoHS compliant construction ensures environmental safety. Compatible with standard TTL circuitry, supporting simplex, duplex, and latching connections.
This fibre optic transmitter is widely used in industrial machines, electronic communications, laboratory and manufacturing settings due to its robust and versatile design. Explore a broad range of Fibre Optic Transmitters and components in the Electronics & Electricals category at EnvMart for your specific application needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The HFBR-1532Z fibre optic transmitter operates with a maximum data rate of 5 Mbps.
This model has a wavelength peak sensitivity at 660 nm, ensuring high performance in data transmission.
The dimensions of this unit are 18.29 mm in length, 12.19 mm in width, and 7.62 mm in height.
It features a versatile link connector with 6 pins, designed for easy PCB integration.
The HFBR-1532Z supports a maximum fibre size of 1 mm.
The maximum data transmission distance for the HFBR-1532Z is up to 70 meters.
This transmitter operates with a low forward voltage of 2.02 V.
The typical rise time for the HFBR-1532Z is 80 ns.
It complies with RoHS standards, ensuring environmental safety in its construction.
This model supports simplex, duplex, and latching connections for versatile installation options.
The peak supply current for this unit is 6 mA.
It is commonly used in applications requiring voltage isolation, EMI/RFI immunity, and secure data communication, such as motor controller triggering and local area networks.
