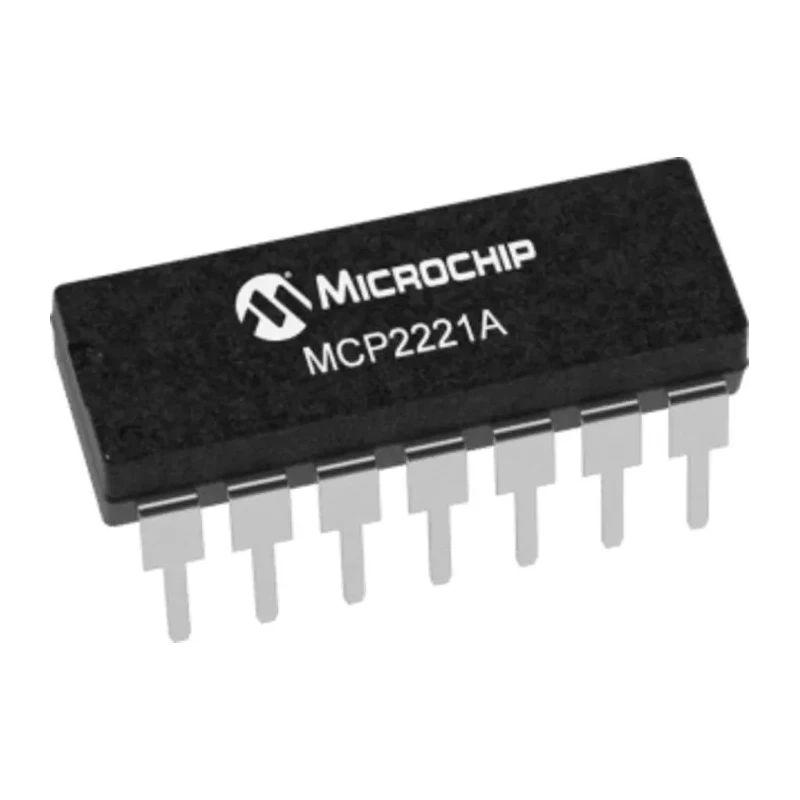

Microchip USB Bridge IC Controller USB 2.0 12 Mbps 3-5.5 V I2C UART 14-Pin PDIP MCP2221A-I/P
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 4.83mm |
| Length | 19.56mm |
| Model | MCP2221A-I/P |
| Mount Type | Through Hole |
| Series | MCP2221A |
| Maximum Operating Temperature | 85°C |
| Package Type | PDIP |
| Sub Type | Controller |
| Minimum Operating Temperature | -40°C |
| Interfaces | USB 2 |
| Pin Count | 14 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 3V |
| Supply Current | 25mA |
| Maximum Data Rate | 12Mbps |
| Number of Transceivers | 1 |
| USB Specification | USB 2.0 |
| Supported Protocols | I2C, UART |
Key Features
- Compliant with USB 2.0 standard for reliable USB connectivity.
- Single-channel interface supporting I2C and UART protocols.
- Integrated USB termination resistors and oscillator reduce external components.
- Operating temperature range from -40°C to 85°C for industrial applications.
- Supports Electrostatic Discharge (ESD) protection for device reliability.
- Features General Purpose Input/Output pins supporting clock output, ADC, DAC, and interrupt detection.
- Packaged in a 14-pin PDIP, through-hole mount for easy prototyping and replacement.
- Meets Automotive Standard AEC-Q100 for quality assurance.
Product Description
Microchip MCP2221A-I/P is a USB Bridge IC Controller designed to provide a seamless bridge between USB and serial interfaces such as UART and I2C. Operating within a voltage range of 3 V to 5.5 V and supporting a maximum data rate of 12 Mbps, this device is compliant with USB 2.0 standards. It integrates USB termination resistors and an internal oscillator, minimizing the need for external components.
This 14-pin PDIP device supports through-hole mounting suitable for various PCB applications and prototyping. The MCP2221A-I/P features General Purpose Input/Output pins capable of clock output, ADC, DAC functionalities, and interrupt detection, offering flexibility in embedded system designs.
With an operating temperature range of -40°C to 85°C, this device is highly reliable for automotive engine control systems, embedded electronics, remote control systems, and other industrial applications requiring robust USB interface solutions. It also includes Electrostatic Discharge protection to enhance device durability in diverse environments.
USB 2.0 compliant for high-speed serial communication reliability. Single 1-channel USB-to-UART/I2C serial converter functionality. Integrated USB termination resistors and oscillator. Support for configurable VID/PID string descriptors.
General Purpose Input/Output pins with multiple functions. Automotive-grade quality with AEC-Q100 certification. Operating temperature suitable for industrial environments.
The MCP2221A-I/P is ideal for electronic devices requiring USB interface integration, including embedded systems and automotive controls. It simplifies the design by reducing external components while ensuring compliance with relevant standards.
Explore a wide range of USB Interface ICs and related semiconductor components on EnvMart for your industrial and commercial electronics projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum data rate of this model is 12 Mbps, compliant with USB 2.0 standards.
It supports I2C and UART protocols for serial communication.
This model operates within a voltage range of 3 V to 5.5 V.
The dimensions of this device are 19.56 mm in length and 4.83 mm in height.
It has an operating temperature range from -40°C to 85°C, suitable for industrial applications.
This model features a 14-pin configuration.
It supports through-hole mounting, making it suitable for various PCB applications.
Yes, it includes Electrostatic Discharge (ESD) protection to enhance device reliability.
The MCP2221A-I/P meets the Automotive Standard AEC-Q100 for quality assurance.
The GPIO pins support clock output, ADC, DAC functionalities, and interrupt detection.
The supply current for this model is 25 mA.
It is packaged in a 14-pin PDIP format for easy prototyping and replacement.
