Renesas Electronics USB Controller, 1-Channel 12 Mbps, USB 3.0, 3-3.6V, 48-Pin QFN UPD720202K8-711-BAA-A

Free Delivery in India | Lowest Global Shipping Charges

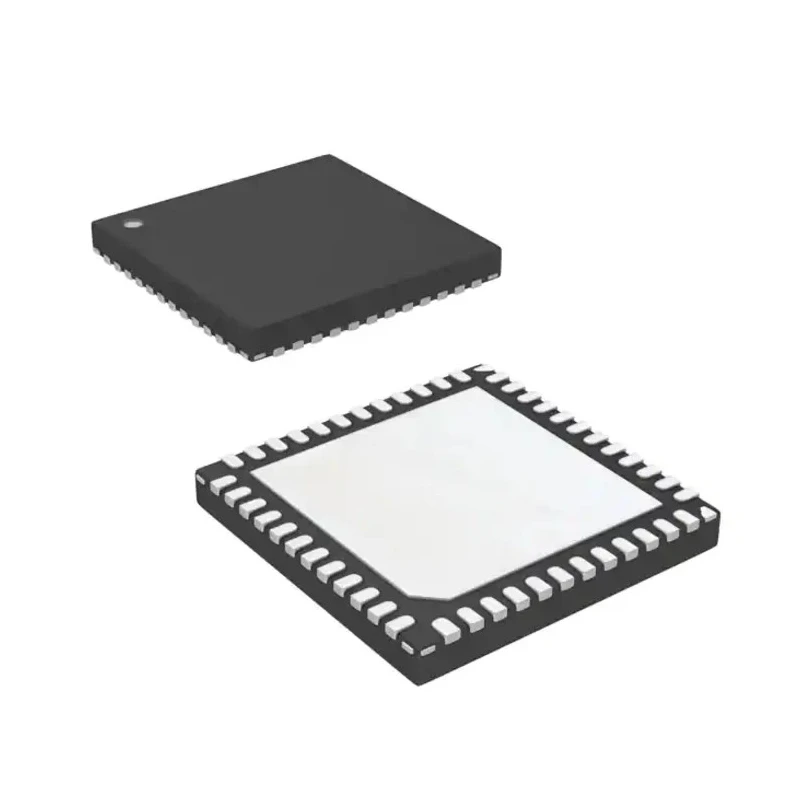

Renesas Electronics USB Controller, 1-Channel 12 Mbps, USB 3.0, 3-3.6V, 48-Pin QFN UPD720202K8-711-BAA-A

Name: Renesas Electronics USB Controller, 1-Channel 12 Mbps, USB 3.0, 3-3.6V, 48-Pin QFN UPD720202K8-711-BAA-A
Brand: Renesas Electronics
SKU: 404225
Price: 9.39 USD
Availability: InStock



Category USB Interface IC Brand Renesas Electronics Condition New

Specifications

Country of Origin	India
Brand	Renesas Electronics
Height	850μm
Length	7mm
Model	UPD720202K8-711-BAA-A
Mount Type	Surface
Series	UPD720202
Maximum Operating Temperature	85°C
Package Type	QFN
Sub Type	USB Host Controller IC
Minimum Operating Temperature	-40°C
Interfaces	USB debugging capability on all super speed ports
Pin Count	48
Maximum Supply Voltage	3.6V
Minimum Supply Voltage	3V
Maximum Data Rate	12Mbps
Number of Transceivers	1
USB Specification	USB 3.0
Supported Protocols	USB 3.0

Key Features

Operates with supply voltage range of 3 to 3.6 volts.
Packaged in a compact 48-Pin QFN form factor for surface mounting.
Supports USB debugging capability on all super speed ports.
Compatible with PCI Express base specification revision 2.0 and ExpressCard standard.
Designed for mobile computing devices requiring USB 3.0 interface integration.
Operating temperature range from -40°C to 85°C for industrial and commercial use.
Designed without ESD protection, intended for integration in controlled environments.

Product Description

Renesas Electronics UPD720202K8-711-BAA-A is a USB controller compatible with USB 3.0 and xHCI 1.0 specifications, designed to provide efficient USB 3.0 host controller functionality. It operates at 3 to 3.6 volts supply voltage and supports a single channel with a maximum data rate of 12 Mbps, delivering reliable performance for USB interface implementations.

This device is specially engineered to reduce power consumption and minimize package footprint, making it ideal for integration into mobile computing devices such as laptops and notebooks. Its surface-mount package is a 48-pin QFN, providing a compact and efficient form factor that supports advanced USB functionalities.

The controller supports USB debugging on all super speed ports and USB legacy functions, improving development and operational flexibility. It complies with PCI Express base specification revision 2.0 and adheres to the ExpressCard standard, ensuring broad compatibility and system integration capabilities.

With an operating temperature range from -40°C to 85°C, this USB controller is suited for demanding industrial and commercial environments. While lacking integrated ESD protection, its compliance and design features make it a robust choice for engineers aiming to add USB 3.0 interfaces to devices efficiently.

Operates with a minimum supply voltage of 3 V and maximum of 3.6 V. Utilizes a 48-pin QFN surface-mount package type for compact design. Supports 1 channel with 12 Mbps maximum data rate performance. Compatible with USB 3.0 specification and USB debugging capability.

Conforms to PCI Express base specification revision 2.0 and ExpressCard standard. Operating temperature ranges from -40°C to 85°C for durability.

This product is suitable for electronics manufacturing and integration in industrial plants, data communication equipment, and computing hardware requiring state-of-the-art USB controllers.
