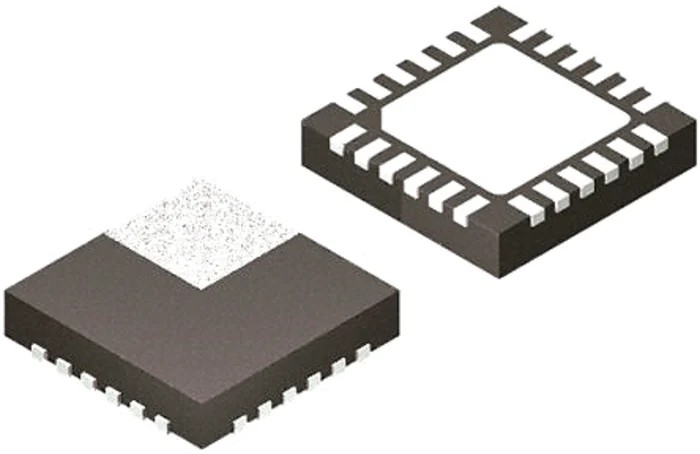

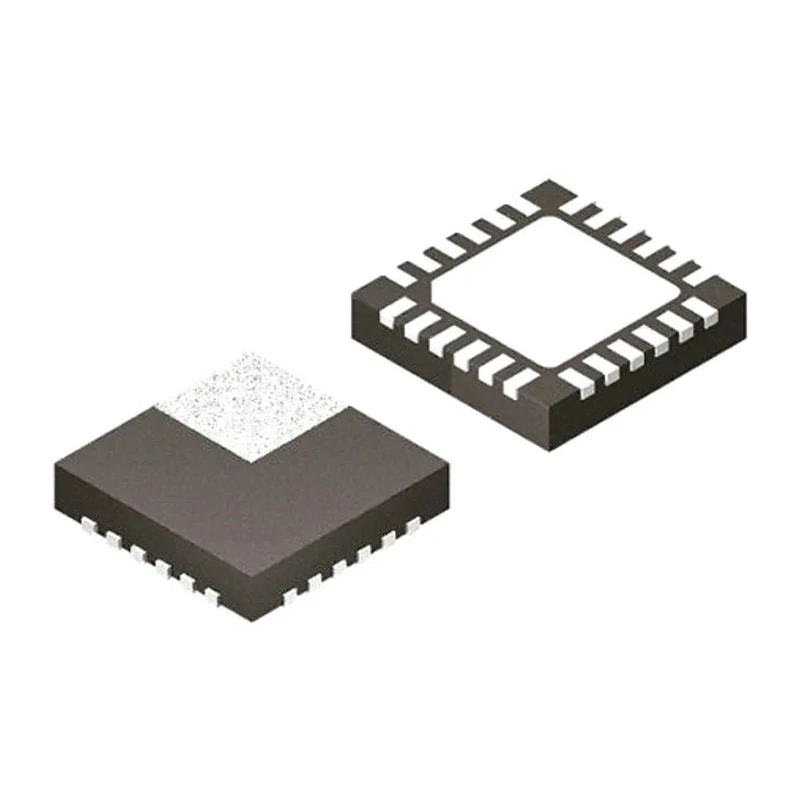

Microchip USB Transceiver 1-Channel 3.3V USB 2.0 1.8V 24-Pin QFN USB3317C-CP-TR
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 950μm |
| Length | 4.15mm |
| Model | USB3317C-CP-TR |
| Mount Type | Surface |
| Series | USB3317 |
| Maximum Operating Temperature | 85°C |
| Package Type | QFN |
| Sub Type | Transceiver |
| Minimum Operating Temperature | -40°C |
| Pin Count | 24 |
| Maximum Supply Voltage | 3.3V |
| Minimum Supply Voltage | 1.8V |
| Number of Transceivers | 1 |
| USB Specification | USB 2.0 |
| Supported Protocols | USB 2.0 |
Key Features
- Supports USB 2.0 protocol with 1.8V to 3.3V single power supply voltage range.
- Features Electrostatic Discharge (ESD) protection for improved reliability.
- Operating temperature range from -40°C to 85°C for industrial applications.
- Compact design with 4.15mm length and 950µm height for space-saving PCB layouts.
- Designed with ULPI interface compatibility within the USB3317 series.
- 24 pins QFN surface mount package ensures efficient mounting on circuit boards.
- Offers one channel transceiver functionality suitable for USB interface IC use cases.
- Complies with industry standards but no specific automotive standard certification.
Product Description
Microchip USB3317C-CP-TR is a 1-channel USB transceiver designed for USB 2.0 compliant devices. It operates on a single power supply voltage ranging from 1.8V to 3.3V, making it fit for a variety of embedded and industrial electronic applications.
This transceiver is housed in a 24-pin QFN surface mount package, promoting compact PCB design solutions. Its physical dimensions are 4.15 mm in length and 950 micrometers in height, which supports integration in space-limited assembly environments.
With built-in Electrostatic Discharge (ESD) protection, this device enhances the robustness of USB interface systems against electrostatic events, ensuring longevity and reliability under rigorous operational conditions including a broad temperature range from -40°C to 85°C.
The USB3317 series supports the ULPI interface standard, facilitating seamless integration with USB controller chips and microprocessors that require standardized transceiver communication.
Supports USB 2.0 protocol with single supply voltage from 1.8V to 3.3V. ESD protection incorporated for enhanced device reliability. Operating temperature range suitable for industrial installations. Compact QFN 24-pin surface mount package ideal for PCB real estate optimization.
Length of 4.15 mm and height of 950 µm ensures compatibility with miniaturized designs. One channel USB transceiver, suitable for USB Interface IC implementations. No specific automotive standard compliance but meets USB specification requirements.
This USB transceiver is widely used in industrial, embedded systems, and consumer electronics where reliable high-speed USB data communication is necessary. It supports universal serial bus connectivity for device interface solutions and is ideal for applications requiring surface mount installation with compact form factor constraints.
EnvMart offers this model in new condition with authentic quality from Microchip, catering to semiconductor needs within electronics manufacturing, prototyping, and repair sectors.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates on a single power supply voltage ranging from 1.8V to 3.3V.
The maximum operating temperature is 85°C, making it suitable for industrial applications.
This model supports one channel transceiver functionality for USB interface applications.
It is housed in a 24-pin QFN surface mount package, ideal for space-saving installations.
This transceiver supports the USB 2.0 protocol, ensuring compatibility with USB devices.
It features built-in Electrostatic Discharge (ESD) protection for enhanced reliability.
The minimum operating temperature is -40°C, suitable for various industrial environments.
This transceiver has a pin count of 24, facilitating connections in electronic applications.
This model does not have specific automotive standard compliance but meets USB specification requirements.
The country of origin for this model is India.
It belongs to the USB3317 series, designed for USB interface applications.
