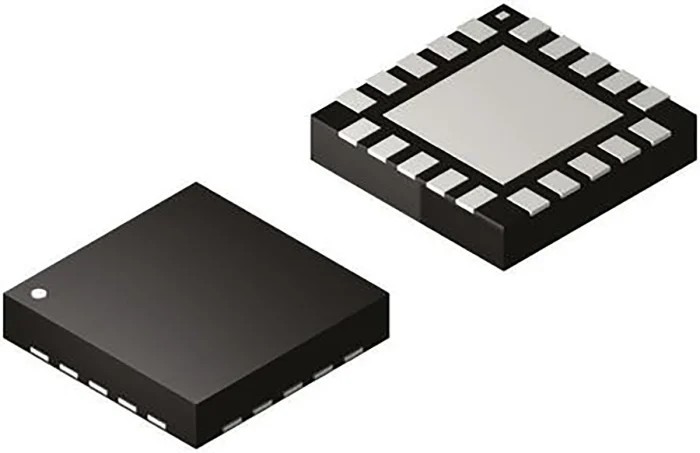

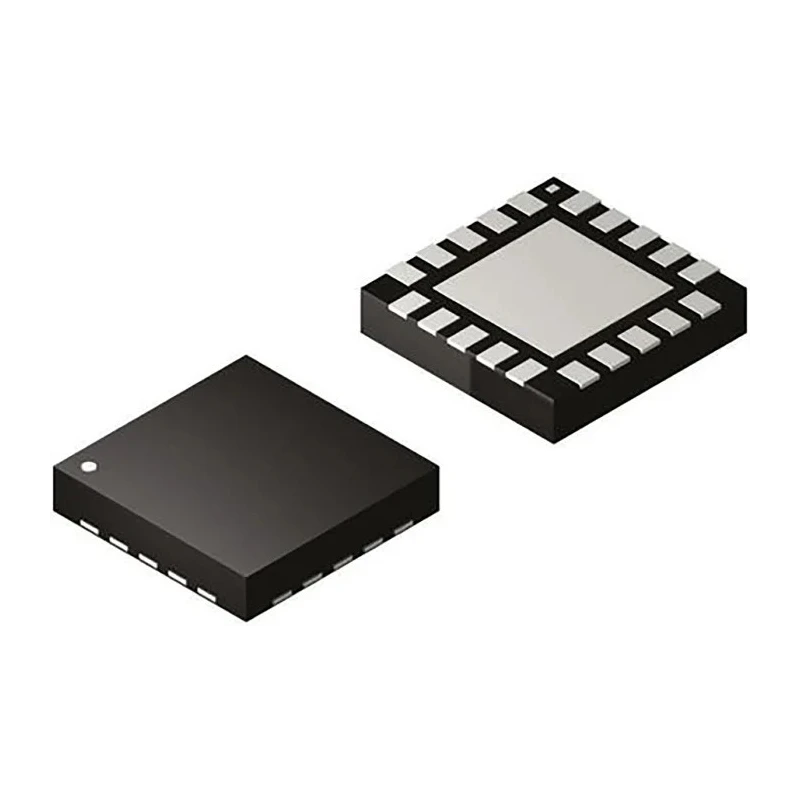

Texas Instruments Controller IC 1-Channel USB 1.1 Dual Supply Voltage 4.5V-6.5V Surface Mount WQFN 20-Pin TPS25810RVCT
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 750μm |
| Length | 4.1mm |
| Model | TPS25810RVCT |
| Mount Type | Surface |
| Series | TPS25810 |
| Maximum Operating Temperature | 125°C |
| Package Type | WQFN |
| Sub Type | Controller |
| Minimum Operating Temperature | -40°C |
| Interfaces | USB 3 |
| Pin Count | 20 |
| Maximum Supply Voltage | 6.5V |
| Minimum Supply Voltage | 4.5V |
| Supply Current | 3A |
| Number of Transceivers | 1 |
| USB Specification | USB 1.1 |
| Supported Protocols | USB 1.1 |
Key Features
- Supports USB 1.1 protocol and USB Type-C power delivery standards.
- Surface mount package type with 20-pin WQFN footprint for efficient PCB integration.
- Dual supply voltage support enabling operation between 4.5V and 6.5V.
- High operating temperature range from -40°C to 125°C for industrial robustness.
- Includes electrostatic discharge (ESD) protection enhancing durability.
- Compact dimensions with height of 750μm and length of 4.1mm.
- Supply current rating of 3A supporting power delivery up to 15W.
- Designed for USB Type-C connectors and USB Power Delivery applications.
Product Description
Texas Instruments TPS25810RVCT is a 1-channel controller IC designed for USB 1.1 interface applications with dual voltage supply capability from 4.5V to 6.5V. It supports USB Type-C and USB Power Delivery standards, making it suitable for modern personal electronics and industrial equipment.
This semiconductor device comes in a surface mount WQFN package with 20 pins, facilitating easy integration on printed circuit boards. The TPS25810 series is engineered for robust operation within a wide temperature range of -40°C to 125°C, supporting demanding industrial and commercial environments.
Key features include electrostatic discharge (ESD) protection, a supply current of 3 amperes, and a compact form factor with a height of 750μm and length of 4.1mm. It is optimized to support USB 1.1 protocols and alternate modes through USB Type-C connectivity, delivering power up to 15W efficiently.
The device includes a single-wire protocol mechanism enabling the transmission of both data and power over one cable, reducing cable clutter and enhancing device usability. Its surface mount technology ensures high reliability and is suited for automated assembly lines.
This controller IC is ideal for applications in consumer electronics, industrial automation systems, manufacturing equipment, and other scenarios requiring USB data and power interface integration.
Supports USB 1.1 and USB Type-C power delivery standards. Dual supply voltage operation between 4.5V and 6.5V. Surface mount WQFN package with 20 pins for compact PCB layouts. Operates reliably across -40°C to 125°C temperature range.
Includes ESD protection for enhanced durability. Supply current of 3A facilitating up to 15W power delivery. Single-wire protocol enables power and data over single cable. Suits industrial, commercial, and consumer electronic applications.
Explore a wide range of semiconductor components, USB Interface ICs, and electronic controllers at EnvMart for industrial and commercial projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates with a dual supply voltage range between 4.5V and 6.5V.
The maximum operating temperature for the TPS25810RVCT is 125°C.
It features a 20-pin WQFN package, suitable for compact PCB layouts.
It supports USB 1.1 protocols and is compatible with USB Type-C power delivery standards.
The supply current rating for this controller IC is 3A, allowing for power delivery up to 15W.
The dimensions are a height of 750μm and a length of 4.1mm.
It utilizes surface mount technology, which facilitates automated assembly and compact integration.
It is suitable for consumer electronics, industrial automation systems, and manufacturing equipment requiring USB data and power integration.
Yes, the TPS25810RVCT includes electrostatic discharge (ESD) protection to enhance durability.
The minimum operating temperature is -40°C, making it suitable for industrial environments.
It enables the transmission of both data and power over a single cable, reducing cable clutter.
The country of origin for this product is India.
