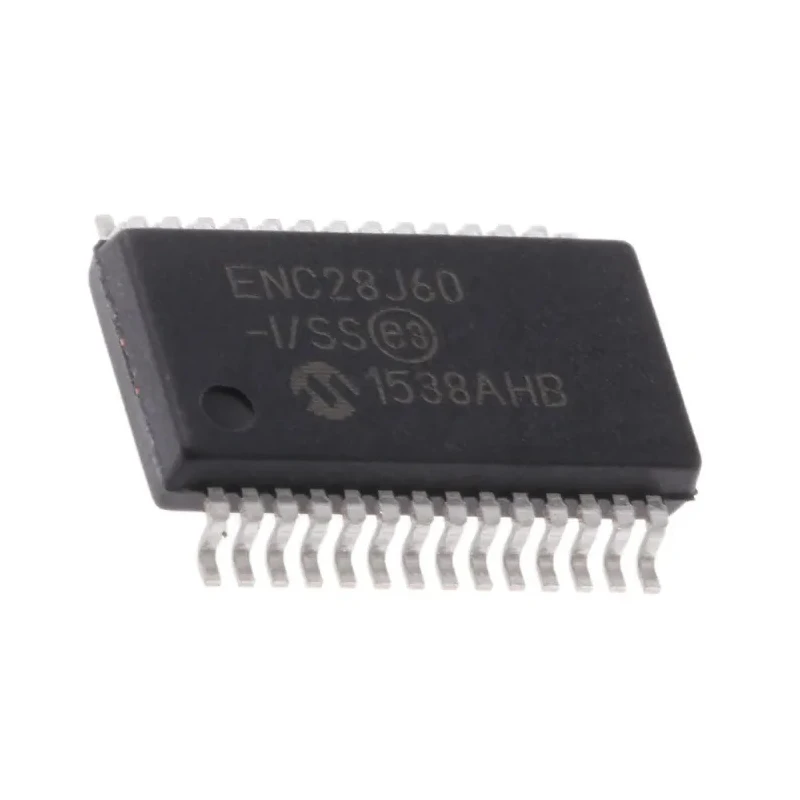

Microchip 28-Pin SSOP Controller IC 3.3 V 10 Mbps Serial-SPI Interface Full Duplex/Half Duplex ENC28J60-I/SS
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 2mm |
| Length | 10.5mm |
| Model | ENC28J60-I/SS |
| Width | 5.6mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 85°C |
| Package Type | SSOP |
| Minimum Operating Temperature | -40°C |
| Communication Mode | Full Duplex/Half Duplex |
| Interface Type | Serial-SPI |
| Pin Count | 28 |
| Maximum Supply Voltage | 3.6V |
| Minimum Supply Voltage | 3.3V |
| Maximum Data Rate | 10Mbps |
| Loopback Mode | Internal |
| Standard Supported | IEEE 802.3 |
Key Features
- This 28-pin SSOP package supports serial SPI interface for communication.
- It complies with IEEE 802.3 Ethernet standards for 10Base-T networks.
- Internal loopback mode simplifies diagnostic testing.
- Operates reliably between minimum -40°C to maximum 85°C temperatures.
- Compact dimensions of 10.5mm length, 5.6mm width, and 2mm height enable easy PCB integration.
- Supports MAC and PHY layers with integrated features enhancing network communication performance.
- SPI clock speed supports up to 25 MHz for efficient data transfer.
- Suitable for industrial automation, home control, security, instrumentation, and VoIP applications.
Product Description
Microchip ENC28J60-I/SS is a 28-pin SSOP ethernet controller IC designed for 10BASE-T Ethernet communication. Operating at supply voltages between 3.3 V and 3.6 V, this controller supports data rates up to 10 Mbps using a Serial Peripheral Interface (SPI).
This device integrates both MAC and PHY functions internally, offering full duplex and half duplex communication modes. It includes an internal loopback mode which is useful for diagnostics and testing. The SPI interface supports clock speeds up to 25 MHz, facilitating fast and efficient data transfer.
With a compact SSOP package measuring 10.5 mm in length, 5.6 mm in width, and 2 mm in height, the ENC28J60-I/SS is optimized for surface mount applications. It operates reliably within a wide temperature range from -40°C to +85°C, making it suitable for use in demanding industrial environments.
The controller is IEEE 802.3 compliant and supports MAC unicast, multicast, and broadcast packets, enabling versatile network communication. It is commonly applied in industrial automation, security systems, home control, instrumentation, building automation, and VoIP communication devices.
This controller features an integrated MAC and PHY layer enhancing network layer communications. Supports communication through a high-speed SPI interface up to 25 MHz clock rate. Internal loopback mode facilitates network diagnostics.
Compact SSOP surface mount package allows for easy PCB mounting. Fully compatible with IEEE 802.3 10BASE-T Ethernet standard. Operates over a broad temperature range from -40°C to 85°C. Wide supply voltage range between 3.3 V minimum and 3.6 V maximum.
Supports full duplex and half duplex communication modes. Widely used in varied applications including industrial, home automation, and security.
Explore a range of Microchip Ethernet controllers and components at EnvMart to support your development and manufacturing requirements. Discover high-quality, reliable Interface ICs suited for both industrial and commercial electronic applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The ENC28J60-I/SS supports a maximum data rate of 10 Mbps.
It operates reliably within a temperature range of -40°C to 85°C.
This model supports both full duplex and half duplex communication modes.
The supply voltage range for this controller is between 3.3 V and 3.6 V.
The dimensions of this controller are 10.5 mm in length, 5.6 mm in width, and 2 mm in height.
It uses a Serial Peripheral Interface (SPI) for communication.
Yes, it includes an internal loopback mode which is useful for diagnostics and testing.
This controller comes in a 28-pin SSOP package, optimized for surface mount applications.
It complies with the IEEE 802.3 Ethernet standards for 10BASE-T networks.
It is commonly applied in industrial automation, home control, security systems, instrumentation, and VoIP communication devices.
The SPI interface supports clock speeds of up to 25 MHz for efficient data transfer.
It integrates both MAC and PHY functions, enhancing network layer communications.
